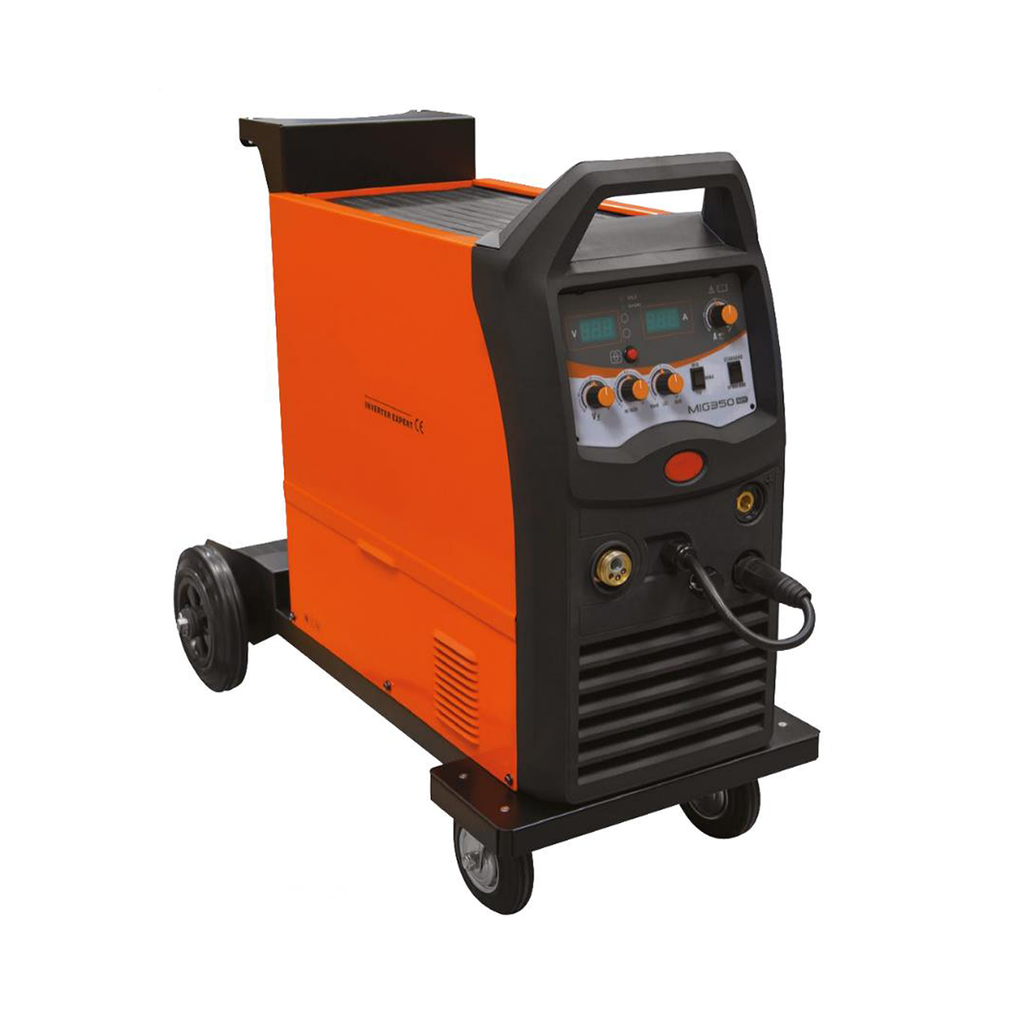

Compact inverter welder equipped with powerful IGBT components, a digital A/V display and multi process capabilities.
| Input Voltage | AC 400V – 50/60 Hz |
| Leff (A) | 13.7 |
| Input Power (kVA) | 15 |
| Voltage Adjustment Range (V) | 15 – 38 |
| Current Range (A) | 50 – 350 |
| Duty Cycle @ 40°C | 350A @ 40% |
| No-Load Voltage (V | 62 (19V – VRD) |
| Wire Spool Size | ø 300mm |
| Efficiency (%) | 85 |
| Power Factor | 0.93 |
| Protection/Insulation Class | IP21S/F |
| Dimensions (LxWxH mm) | 900 x 450 x 755 |
| Weight (Kg) | 52 |
| Product code | JM-352C |
Features
• Multi function compact MIG/MAG/MMA/Lift TIG
• Suitable or 0.8, 1.0 and 1.2mm welding wire
• Stable and reliable arc with minimal spatter
• Suitable for flux cored
• Advanced control circuitry
• Digital A/V display
• 4 roll wire feed drive
• High duty cycle
• Burn back control
• Spool gun interface
• Wire inching feature
• VRD on MMA setting
Package Includes:
Inverter power source, MIG welding torch, Work return lead and clamp, Gas hose and regulator, Operating instructions, 5 year warranty*
**5 year warranty subject to product registration
