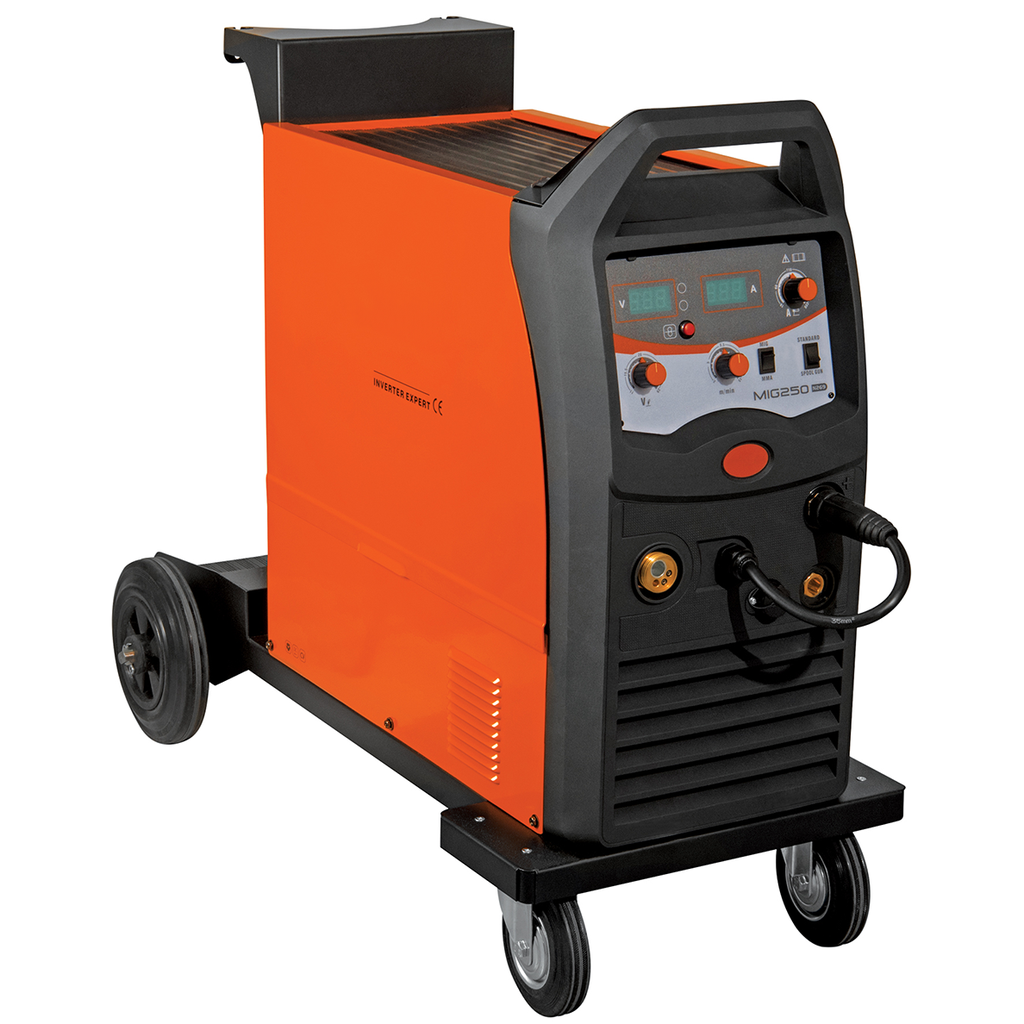

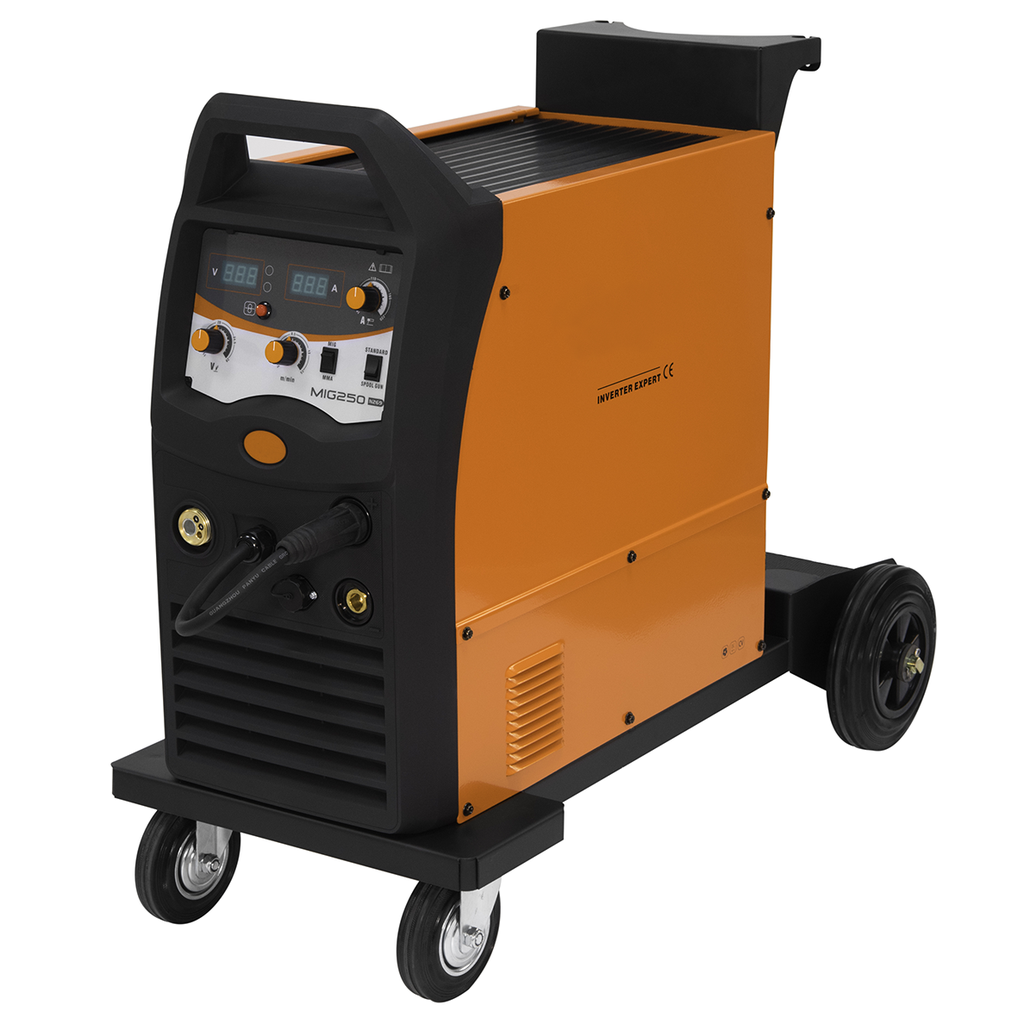

Compact inverter welder equipped with powerful IGBT components, a digital A/V display and multi process capabilities.
| Input Voltage | AC 230V – 50/60 Hz |
| Leff (A) | 28.4 |
| Input Power (kVA) | 11 |
| Voltage Adjustment Range (V) | 11 – 29 |
| Current Range (A) | 30 – 250 |
| Duty Cycle @ 40°C | 250A @ 35% |
| No-Load Voltage (V | 52 |
| Wire Spool Size | ø 300mm |
| Efficiency (%) | 85 |
| Power Factor | 0.75 |
| Protection/Insulation Class | IP21S/F |
| Dimensions (LxWxH mm) | 900 x 450 x 755 |
| Weight (Kg) | 48 |
| Product code | JM-252C |
Features
• High performance compact MIG/MAG/MMA inverter
• Suitable for 0.6, 0.8 and 1.0mm welding wire
• Advanced control circuitry
• Digital A/V Display
• High Duty Cycle
• Stable and reliable arc
• Burn back control
• Spool gun interface
• Wire inching feature
Package Includes:
Inverter power source, MIG welding torch, Work return lead and clamp, Gas hose and regulator, Operating instructions, 5 year warranty*
**5 year warranty subject to product registration
