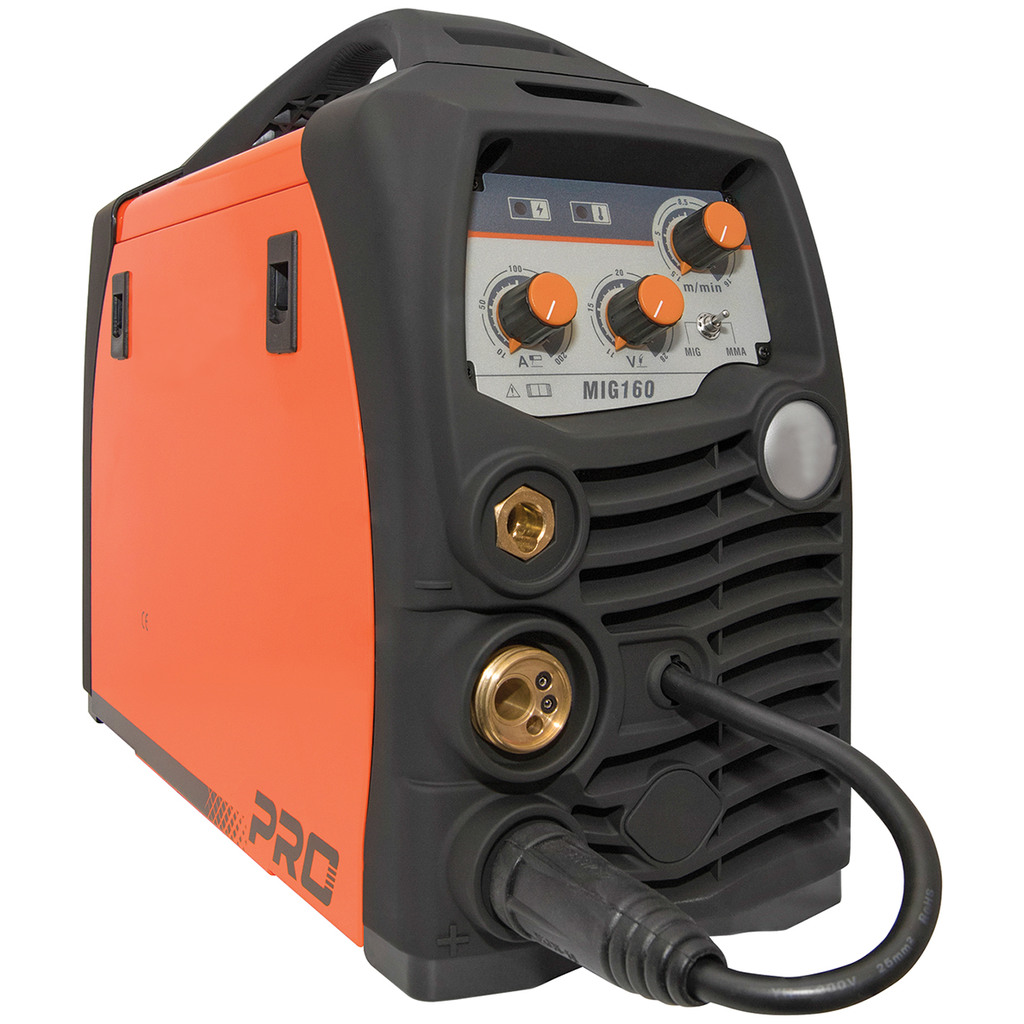

Compact inverter welder equipped with powerful IGBT components, multi-process capabilities and a singular PCB for improved efficiency and performance.
| Input Voltage | AC 230V – 50/60 Hz |
| Leff (A) | 15.2 |
| Input Power (kVA) | 5.9 |
| Voltage Adjustment Range (V) | 11 – 26 |
| Current Range (A) | 30 – 160 |
| Duty Cycle @ 40°C | 160A @ 35% |
| No-Load Voltage (V) | 53 |
| Wire Spool Size | ø 200mm |
| Efficiency (%) | 85 |
| Power Factor | 0.7 |
| Protection/Insulation Class | IP21S/F |
| Dimensions (LxWxH mm) | 485 x 185 x 370 |
| Weight (Kg) | 12.5 |
| Product code | JM-160C |
Features
• IGBT MIG/MMA multi process
• Single PCB compact welding inverter
• Stable arc and reliable performance
• Easy arc starting, less spatter, stable current and excellent weld bead shaping
• Suitable for 0.6, 0.8 and 1.0mm welding wire
• Compact size, lightweight and modern design
• Burn back control
• Ideal for production, site work & maintenance
• Can weld electrodes of up to 4mm
• Generator friendly*
Package Includes:
Inverter power source, MIG welding torch, Work return lead and clamp, Gas hose and regulator, Operating instructions, 5 year warranty**
*Generators should have regulated output
**5 year warranty subject to product registration
