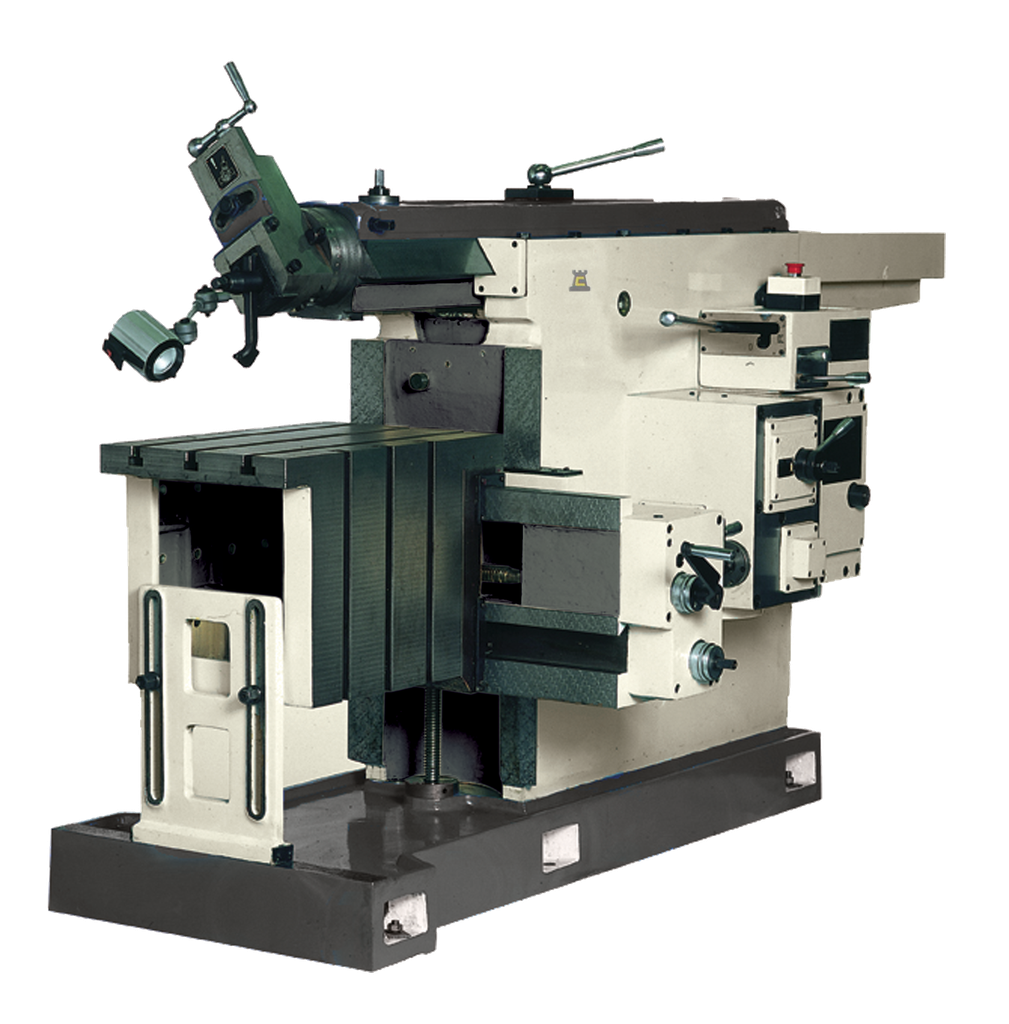

Chester S Series Shaping Machine, S125
Please contact our Sales Team for pricing: [email protected]. Or Call us Today: 01543 448940
Shaping & Slotting Machines
• Auto Lubrication to Gears
• Rigid Cast Iron Construction
• Hand Scraped Guideways
• Hydraulically Driven
| Model | S125 |
| Shaping Length | 1250mm |
| Box Table Size | 1250x500mm |
| T Slot Size | 25mm |
| Max. Distance Lower Edge of Ram to Table | 400mm |
| Max.Travel of Table Horizontal | 800mm |
| Max. Travel of Table Vertical | 320mm |
| Max. Swivel Angle of Toolhead- without Vice | ±60° |
| Swivel Table | n/a |
| Tool Slide Travel | 160mm |
| Frequency of Ram Strokes- per Min | 3-44m/min |
| Pawl Riding over 1 Ratchet Tooth, Horizontal | 0.25mm |
| Pawl Riding over 1 Ratchet Tooth, Vertical | 0.25mm |
| Motor | 7.5kw(10.05hp) |
| Net Weight | 4250kg |
| Dimensions | 3615×1574
x1760mm |
Standard Accessories
• Lamp
• Universal Table
• Vice
• Emergency Stop Switch
Optional Accessories
• Clamping Kit
• Tilting Table
• Rotary Table
• Set of Shaper Tools
