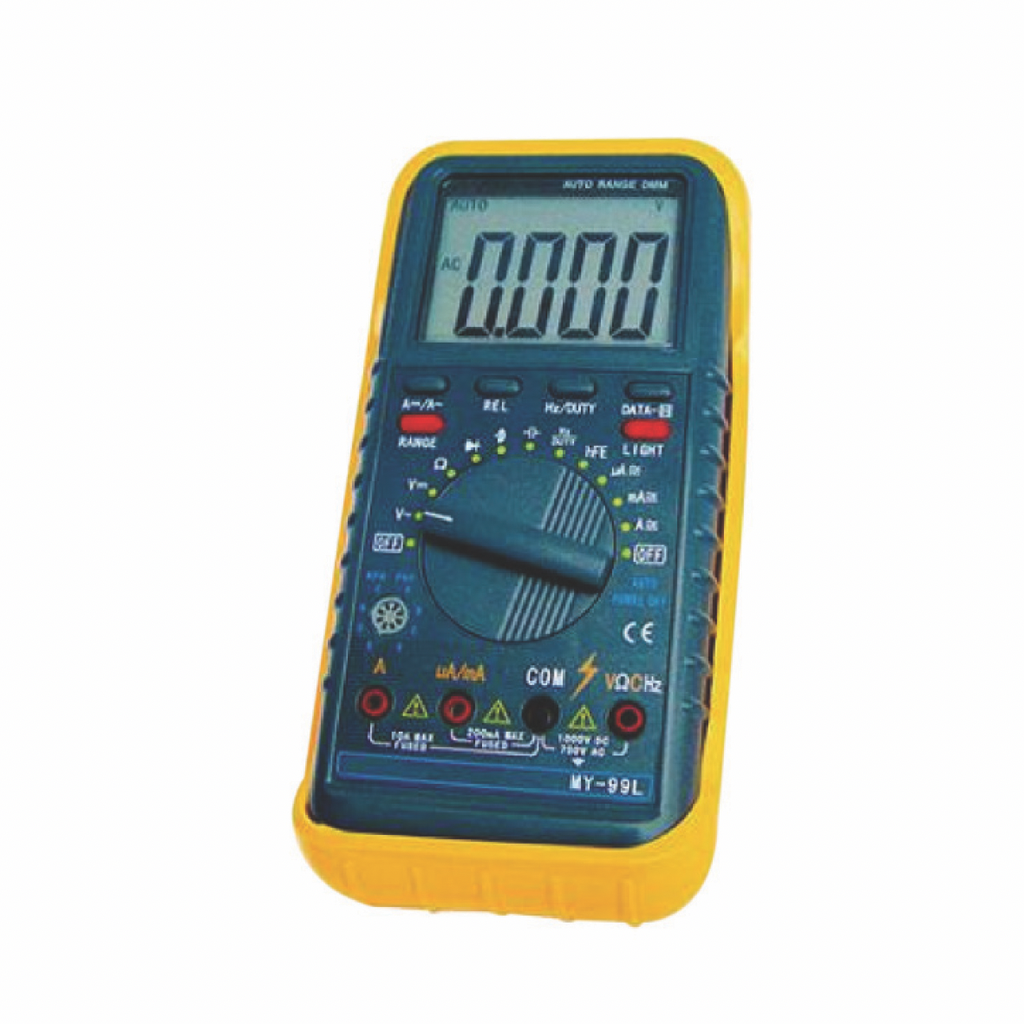

Quality digital electrical multimeters for machining.
| DCV | 400m-4-40-400-1000V |
| ACV | 400m-4-40-400-750V |
| DCA | 400μ-4m-40m-400m-4A-40A |
| ACA | 400μ-4m-40m-400m-4A-40A |
| OHM | 400-4k-40k-400k-4m-40MΩ |
| CAP | 4n-40n-400n-4μ-40μ-100μF |
| FREQ | 40-400-4000-40K-400K-4M-10MHz |
| DUTY | 5%~95% |
| Diode check | 2.8V/1mA |
| hFE | Vce≈3v,Ib≈10μA |
| Power source | 9v battery (6F22) |
| Dimensions | 51.7X35.2X36.2cm |
| N.W | 12kg |
| Accessories | Test lead; Battery; Users manual; Holster |
FEATURES
• 3 3/4 Digits LCD, Max. Reading 3999
• 11 Functions
• Ranging Method: Auto/Manual
• Rel Button
• Duty Selecting Button
• Low Battery Indication
• Overload Protection
• Audible Continuity
• Auto Power Off
• Backlight
