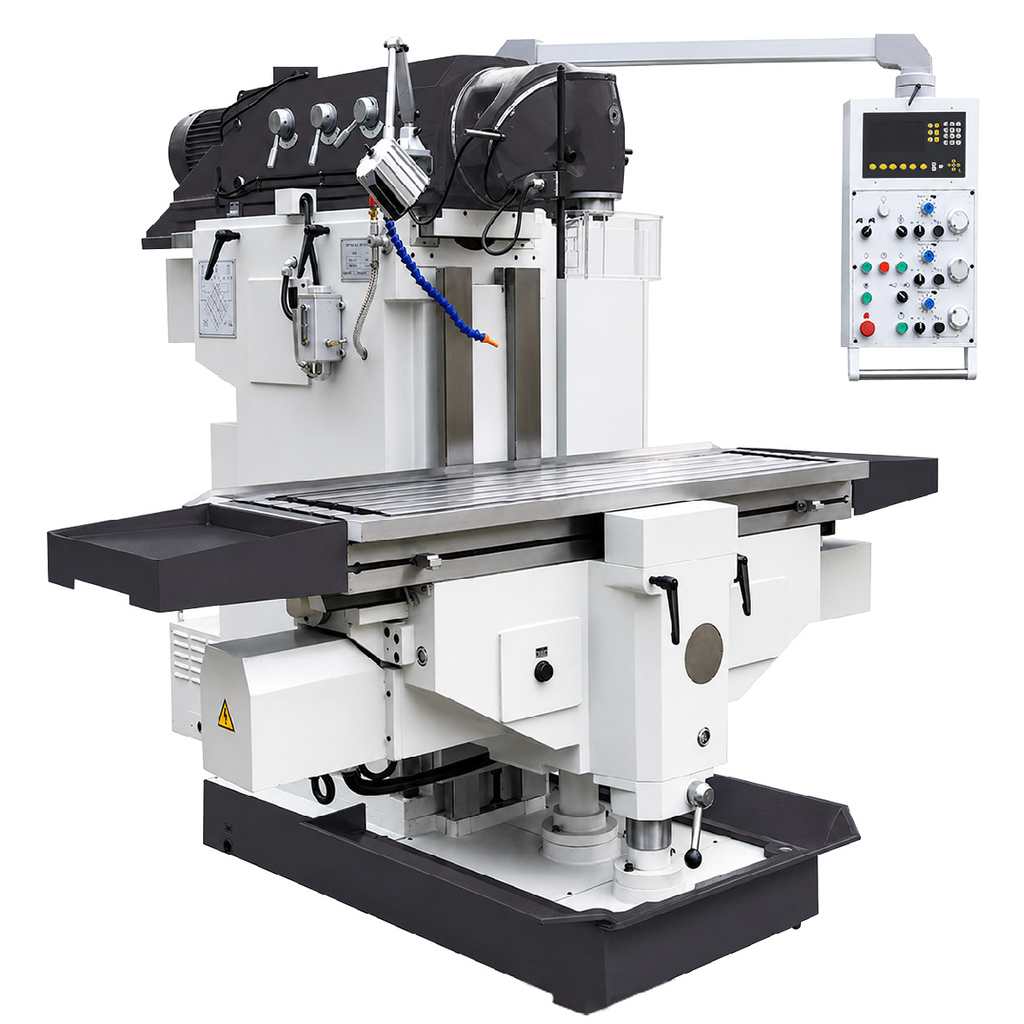

Chester Victory 500VS-L Servo Universal Milling Machine

Chester Victory 500VS-L Servo Universal Milling Machine

Please contact our Sales Team for pricing: [email protected]. Or Call us Today: 01543 448940
Table Size: 2000 x 500mm
Spindle Taper: ISO50
Milling Machines
Contact Us

Please contact our team for a custom quote and competitive pricing

Add to cart
Add to wishlist
Price
£ 0.00 £ 0.00

Features:

  • Servo-driven ballscrew feed on all three axes
  • Heavy-duty high-rigidity cast iron body
  • Universal milling head with semi-sphere swivel range
  • ISO50 spindle taper with wide geared speed range
  • Rapid traverse on all axes
  • Turcite-B coated guideways
  • Centralised automatic lubrication system
Table

Working Surface2000x 500mm
T-Slots (Qty/Width)5/18mm
T-Slot Pitch (Centres)80mm
X-Axis Travel (Manual)1400mm
X-Axis Travel (Automatic)1400mm
Y-Axis Travel (Manual)
700mm
Y-Axis Travel (Automatic)
700mm
Z-Axis Travel (Manual)
500mm
Z-Axis Travel (Automatic)
500mm
Load Capacity
1800kg
Table Swivel Range
45°
Spindle

Spindle TaperISO50
Speed Control27-step
Speed Range30-2050rpm
Spindle Centre to Column45-745mm
Spindle Nose to Table
50-550mm
Drawbar
M24
Head Swivel Range
360°
Feed Rates

Number of FeedsVariable
X-Axis (Longitudinal)10-1000mm/min
Y-Axis (Cross)10-1000mm/min
Z-Axis (Vertical)5-500mm/min
X-Axis Rapid Traverse
2200mm/min
Y-Axis Rapid Traverse
2200mm/min
Z-Axis Rapid Traverse
1100mm/min
Motor/Type

Vertical Spindle Motor/Geared7.5kW (10.2hp)
Feed Motor, X Axis/Servo
3.6kW (4.83hp)
Feed Motor, Y Axis/Servo
3.6kW (4.83hp)
Feed Motor, Z Axis/Servo5.5kW (7.48hp)
Coolant Motor0.09kW (0.12hp)
Weight and Dimensions

Machine Dimensions2625 x 2860 x 2080mm
Net Weight4500kg

Standard Accessories:

  • 3 Axis Digital Readout
  • 3 Axis Power Feed
  • LED Work Lamp
  • Coolant System
  • Table Guard
  • Drawbar and Drawbar Wrench
  • Chip Tray/Collector
  • Manual Lubrication System
  • Toolbox
  • Operation Manual

Optional Accessories:

  • Automatic Lubrication System
  • Semi Universal Dividing Head
  • Fully Universal Dividing Head
  • Rotary Table
  • Machine Vice
  • Clamp Kit
  • Drill Chuck
  • ER Milling Collet Chuck Set
  • Boring Head
  • Reducing Sleeve Set
  • Combination Shell End Mill Arbors
  • Long Milling Arbors
  • End Mill Set
  • Angle Plate
  • Tilting Angle Table
Documents
Victory 460VX-500VS-L.pdf
