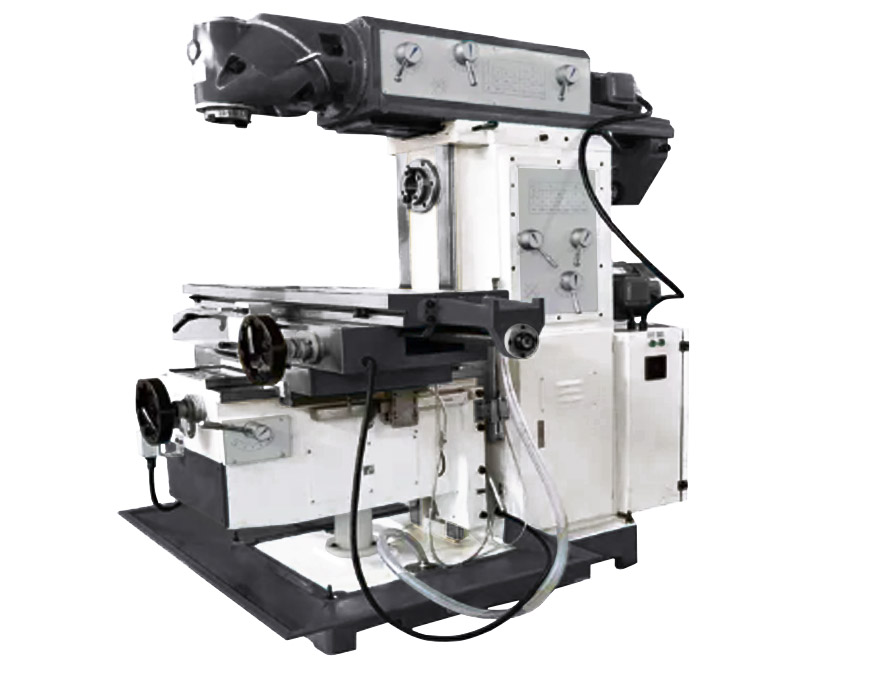

Chester Victory 360XL-R Servo Milling Machine

Chester Victory 360XL-R Servo Milling Machine

Please contact our Sales Team for pricing: [email protected]. Or Call us Today: 01543 448940
Table Size: 1600 x 360mm
Spindle Taper: 7:24, ISO50
Milling Machines
Contact Us

Please contact our team for a custom quote and competitive pricing

Add to cart
Add to wishlist
Price
£ 0.00 £ 0.00

Features:

  • Servo-driven ballscrew feed on all three axes
  • Heavy-duty universal milling machine built for versatile cutting
  • Robust cast body for exceptional rigidity and stability
  • Swivelling vertical milling head for angled cuts
  • Direct gear-driven main drive for heavy cuts
  • Single-lever feed selection across X, Y and Z
  • Rapid traverse on every axis for faster positioning
  • Centralised lubrication for smooth, long-lasting travel
  • Worktable swivels for angular machining setups
Table

Working Surface1600 x 360mm
T-Slots (Qty/Width)3/18mm
T-Slot Pitch (Centres)80mm
X-Axis Travel (Manual)1300mm
X-Axis Travel (Automatic)1300mm
Y-Axis Travel (Manual)
320mm
Y-Axis Travel (Automatic)
300mm
Z-Axis Travel (Manual)
400mm
Z-Axis Travel (Automatic)
400mm
Load Capacity
350kg
Table Swivel Range
±45°
Spindle (Vertical)

Spindle Taper7:24, ISO50
Speed Control12-step
Speed Range60-1750rpm
Spindle Centre to Column260-810mm
Spindle Nose to Table
175-575mm
Drawbar
M24
Head Swivel Range
360°
Spindle (Horizontal)

Spindle Taper
7:24, ISO50
Speed Control
12-step
Speed Range
60-1800rpm
Spindle Centre to Table
0-400mm
Drawbar
M24
Feed Rates

Number of FeedsVariable
X-Axis (Longitudinal)30-750mm/min
Y-Axis (Cross)20-500mm/min
Z-Axis (Vertical)15-375mm/min
X-Axis Rapid Traverse
1200mm/min
Y-Axis Rapid Traverse
800mm/min
Z-Axis Rapid Traverse
600mm/min
Motor/Type

Vertical Spindle Motor/Geared4kW (5.44hp)
Horizontal Spindle Motor/Geared
5.5kW (7.48hp)
X, Y, Z, Axis Feed Motor/Servo2.36kW (3.16hp)
Coolant Motor0.09kW (0.12hp)
Weight and Dimensions

Machine Dimensions2520 x 2100 x 2000mm
Net Weight2850kg

Standard Accessories:

  • 3 Axis Digital Readout
  • 3 Axis Power Feed
  • LED Work Lamp
  • Coolant System
  • Table Guard
  • Drawbar and Drawbar Wrench
  • Chip Tray/Collector
  • Manual Lubrication System
  • Toolbox
  • Operation Manual

Optional Accessories:

  • Automatic Lubrication System
  • Semi Universal Dividing Head
  • Fully Universal Dividing Head
  • Rotary Table
  • Slotting Head
  • Machine Vice
  • Clamp Kit
  • Drill Chuck
  • ER Milling Collet Chuck Set
  • Boring Head
  • Reducing Sleeve Set
  • Combination Shell End Mill Arbors
  • Long Milling Arbors
  • End Mill Set
  • Angle Plate
  • Tilting Angle Table
Documents
Victory 360XL-R.pdf
