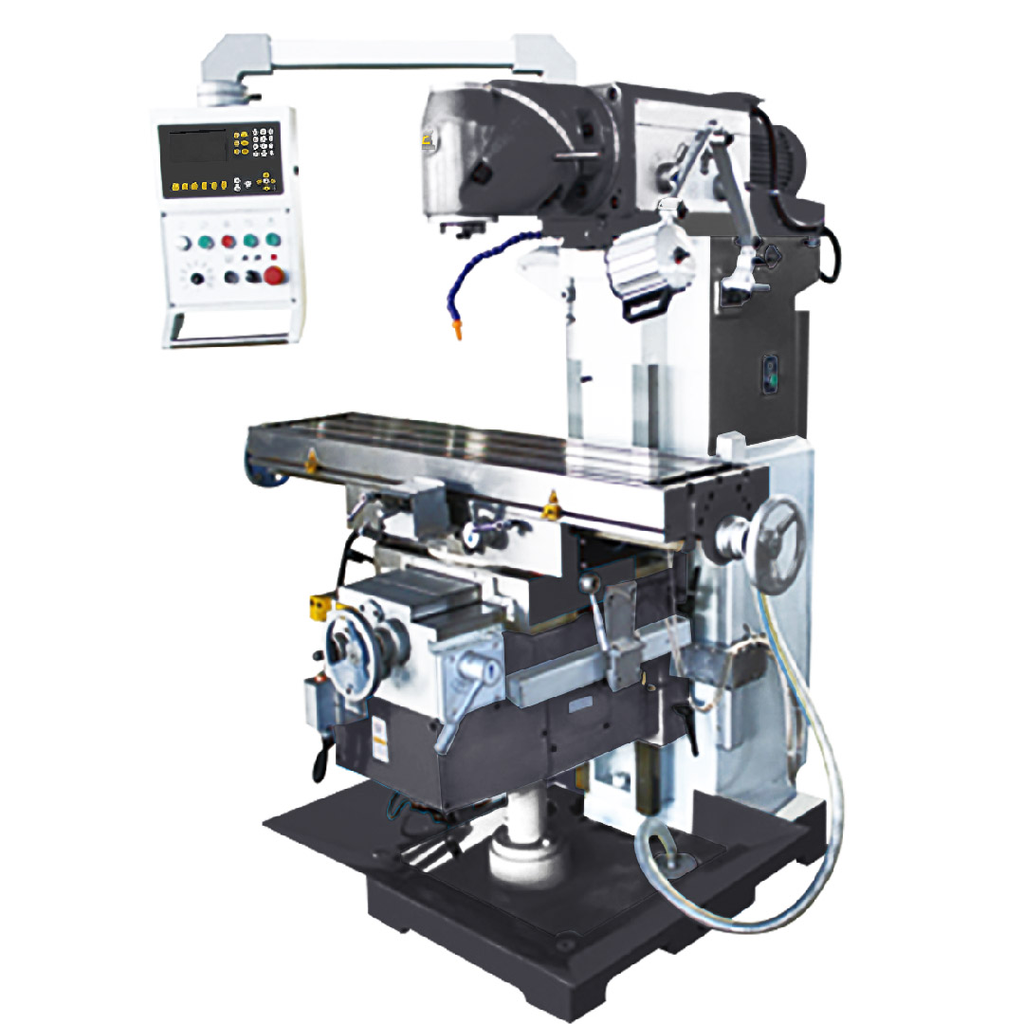

Chester U360XL Servo Horizontal Milling Machine

Chester U360XL Servo Horizontal Milling Machine

Please contact our Sales Team for pricing: [email protected]. Or Call us Today: 01543 448940
Table Size: 1600 x 360mm
Spindle Taper: 7:24, ISO50
Milling Machines
Contact Us

Please contact our team for a custom quote and competitive pricing

Add to cart
Add to wishlist
Price
£ 0.00 £ 0.00

Features:

  • Servo-driven ballscrew feed on all three axes
  • With vertical milling head
  • Horizontal knee-type design for versatile milling work
  • Heavy cast iron construction for rigid cutting
  • Wide-range geared spindle with multiple speeds
  • AC servo motor feed on all three axes
  • Rapid traverse on longitudinal, cross, and vertical axes
  • Adjustable overarm ram with arbor support bracket
  • Forced lubrication for main drivetrain
  • Adjustable gibs on all guideway surfaces
Table

Working Surface1600 x 360mm
T-Slots (Qty/Width)3/18mm
T-Slot Pitch (Centres)80mm
X-Axis Travel (Manual)1300mm
X-Axis Travel (Automatic)1300mm
Y-Axis Travel (Manual)
320mm (300mm with DRO)
Y-Axis Travel (Automatic)
320mm (300mm with DRO)
Z-Axis Travel (Manual)
450mm
Z-Axis Travel (Automatic)
450mm
Load Capacity
350kg
Table Swivel Range
±45°(Optional)
Spindle

Spindle Taper7:24, ISO50
Speed Control12-step
Speed Range60-1800rpm
Spindle Centre to Table
20-470mm
Drawbar
M24
Vertical Head

Spindle Taper
ISO50
Speed Control
12-step
Speed Range
0-600rpm
Spindle Centre to Column
325mm
Spindle Nose to Table
50-350mm
Drawbar
M24
Head Swivel Range
±45°
Feed Rates

Number of Feeds8-step
X-Axis (Longitudinal)30-750mm/min
Y-Axis (Cross)20-500mm/min
Z-Axis (Vertical)15-375mm/min
X-Axis Rapid Traverse
1200mm/min
Y-Axis Rapid Traverse
800mm/min
Z-Axis Rapid Traverse
600mm/min
Motor/Type

Spindle Motor/Geared5.5kW (7.48hp)
X, Y, Z Axis Feed Motor/Servo
2.36kW (3.16hp)
Coolant Motor0.09kW (0.12hp)
Weight and Dimensions

Machine Dimensions2520 x 2100 x 1870mm
Net Weight2550kg

Standard Accessories:

  • 3 Axis Digital Readout
  • 3 Axis Power Feed
  • LED Work Lamp
  • Coolant System
  • Table Guard
  • Drawbar and Drawbar Wrench
  • Chip Tray/Collector
  • Manual Lubrication System
  • Toolbox
  • Operation Manual

Optional Accessories:

  • Automatic Lubrication System
  • Semi Universal Dividing Head
  • Fully Universal Dividing Head
  • Rotary Table
  • Slotting Head
  • Machine Vice
  • Clamp Kit
  • Drill Chuck
  • ER Milling Collet Chuck Set
  • Boring Head
  • Reducing Sleeve Set
  • Combination Shell End Mill Arbors
  • Long Milling Arbors
  • End Mill Set
  • Angle Plate
  • Tilting Angle Table
