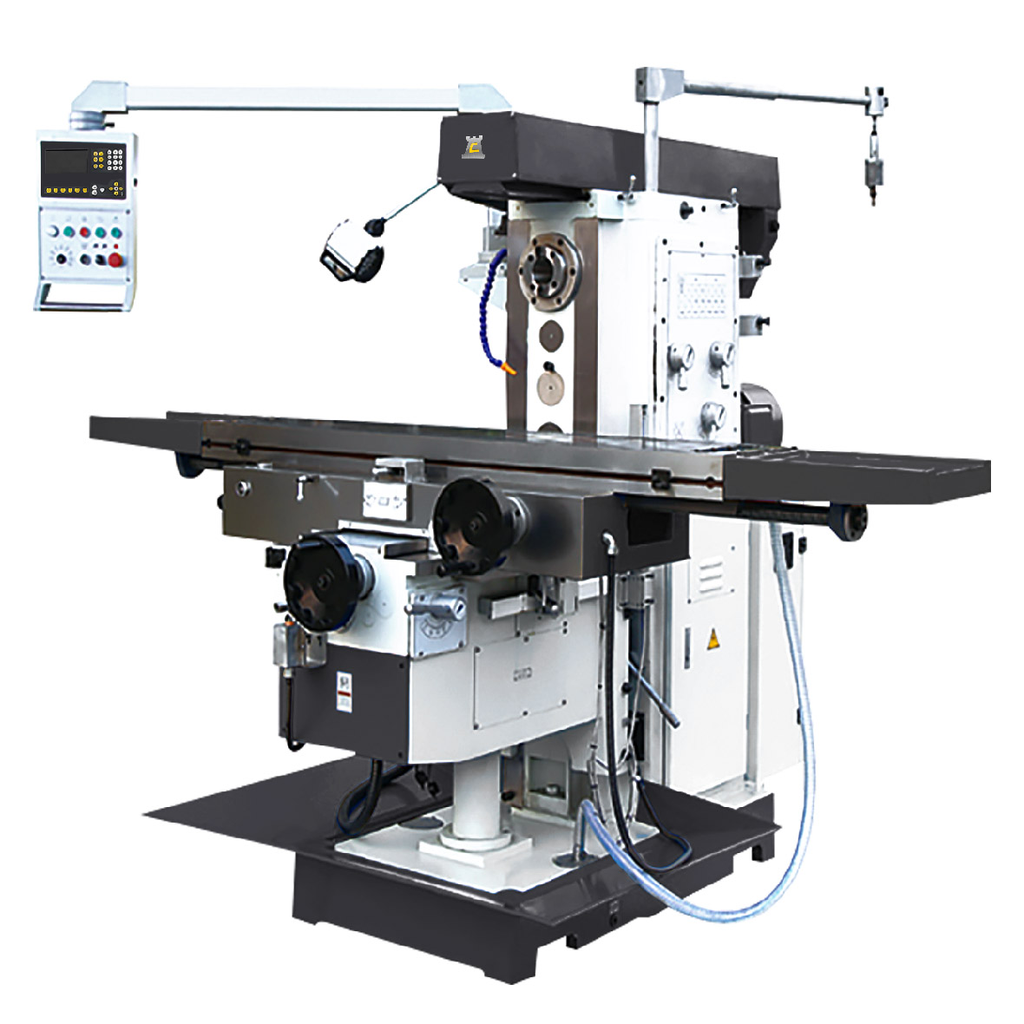

Chester U320MX Horizontal Milling Machine

Chester U320MX Horizontal Milling Machine

Please contact our Sales Team for pricing: [email protected]. Or Call us Today: 01543 448940
Table Size: 1370 x 320mm
Spindle Taper: 7:24; ISO40
Milling Machines
Contact Us

Please contact our team for a custom quote and competitive pricing

Add to cart
Add to wishlist
Price
£ 0.00 £ 0.00

Features:

  • Compact horizontal knee-type milling machine
  • With Vertical Milling Head
  • Twelve spindle speeds for varied materials
  • Servo feed on all three axes
  • Generous worktable with three T-slots
  • Gear-driven head for stable cutting
  • Adjustable gibs maintain long-term accuracy
  • Forced and splash lubrication built in
Table

Working Surface1370 x 320mm
T-Slots (Qty/Width)3/14mm
T-Slot Pitch (Centres)80mm
X-Axis Travel (Manual)1000mm
X-Axis Travel (Automatic)1000mm
Y-Axis Travel (Manual)
380mm (360mm with DRO)
Y-Axis Travel (Automatic)
380mm (360mm with DRO)
Z-Axis Travel (Manual)
400mm
Z-Axis Travel (Automatic)
400mm
Load Capacity
250kg
Table Swivel Range
Optional ±45° Rotary Table
Spindle

Spindle Taper7:24, ISO40
Speed Control12-step
Speed Range35-1500rpm
Spindle Centre to Table
75-475mm
Drawbar
M16
Vertical Head

Spindle Taper
ISO50
Speed Control
12-step
Speed Range
0-600rpm
Spindle Centre to Column
325mm
Spindle Nose to Table
50-350mm
Drawbar
M24
Head Swivel Range
±45°
Feed Rates

Number of Feeds8-step
X-Axis (Longitudinal)30-830mm/min
Y-Axis (Cross)30-830mm/min
Z-Axis (Vertical)23-625mm/min
X-Axis Rapid Traverse
1335mm/min
Y-Axis Rapid Traverse
1335mm/min
Z-Axis Rapid Traverse
1000mm/min
Motor/Type

Horizontal Spindle Motor/Geared3kW (4.0hp)
X, Y, Z Axis Feed Motor/Servo
2.36kW (3.16hp)
Coolant Motor0.06kW (0.08hp)
Weight and Dimensions

Machine Dimensions1820 x 1680 x 1730mm
Net Weight1700kg

Standard Accessories:

  • 3 Axis Digital Readout
  • 3 Axis Power Feed
  • Vertical Milling Head
  • LED Work Lamp
  • Coolant System
  • Table Guard
  • Drawbar and Drawbar Wrench
  • Chip Tray/Collector
  • Manual Lubrication System
  • Toolbox
  • Operation Manual

Optional Accessories:

  • Automatic Lubrication System
  • Semi Universal Dividing Head
  • Fully Universal Dividing Head
  • Rotary Table
  • Slotting Head
  • Machine Vice
  • Clamp Kit
  • Drill Chuck
  • ER Milling Collet Chuck Set
  • Boring Head
  • Reducing Sleeve Set
  • Combination Shell End Mill Arbors
  • Long Milling Arbors
  • End Mill Set
  • Angle Plate
  • Tilting Angle Table
Documents
U360X-U320MX.pdf
