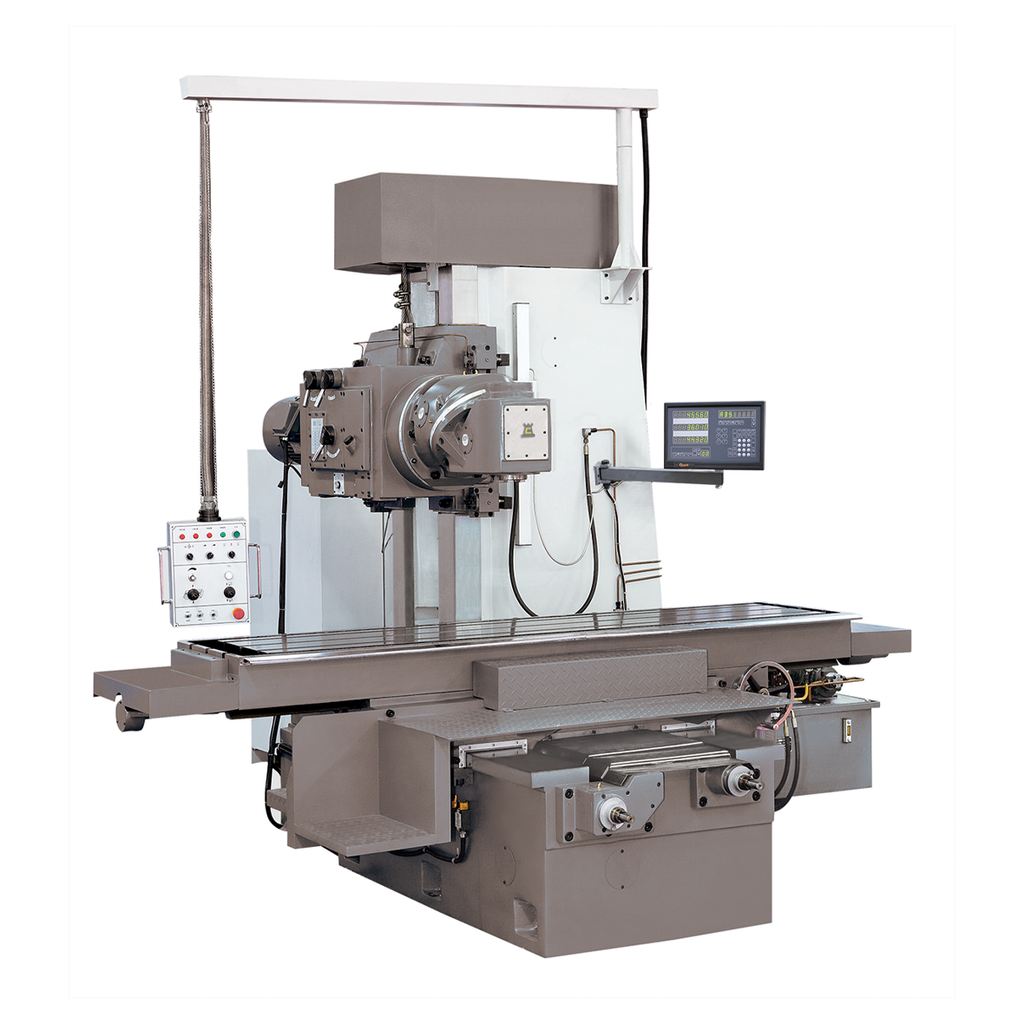

Chester Titan Bed-Type Milling Machine with Universal Head

Chester Titan Bed-Type Milling Machine with Universal Head

Please contact our Sales Team for pricing: [email protected]. Or Call us Today: 01543 448940
Table Size: 2500 x 575mm
Spindle Taper: ISO50
Milling Machines
Contact Us

Please contact our team for a custom quote and competitive pricing

Add to cart
Add to wishlist
Price
£ 0.00 £ 0.00

Features:

  • Ballscrews on X and Y axes
  • Heavy-duty universal milling machine with compound-angle swivel head
  • Powerful main motor with wide range of mechanically selected spindle speeds
  • Spacious worktable with high load capacity and generous axis travels
  • Servo-driven feed on all three axes with rapid traverse
  • Turcite-lined guideways with centralised automatic lubrication
Table

Working Surface2500 x 575mm
T-Slots (Qty/Width)3/22mm
T-Slot Pitch (Centres)152mm
X-Axis Travel (Manual)1800mm
X-Axis Travel (Automatic)1800mm
Y-Axis Travel (Manual)
600mm
Y-Axis Travel (Automatic)
560mm
Z-Axis Travel (Manual)
900mm
Z-Axis Travel (Automatic)
900mm
Load Capacity
3000kg
Spindle

Spindle TaperISO50
Speed Control16-step
Speed Range40-1200rpm
Spindle Centre to Column110mm
Spindle Nose to Table
49mm
Head Swivel Range
360°
Drawbar
M24x315mm
Feed Rates

Number of FeedsVariable
X-Axis (Longitudinal)20-2200mm/min
Y-Axis (Cross)20-2200mm/min
Z-Axis (Vertical)12-1320mm/min
X-Axis Rapid Traverse
3000mm/min
Y-Axis Rapid Traverse
3000mm/min
Z-Axis Rapid Traverse
1800mm/min
Motor/Type

Vertical Spindle Motor/Geared11kW (14.74hp)
X, Y, Z, Axis Feed Motor/Servo2.9kW (3.94hp)
Coolant Motor0.09kW (0.12hp)
Weight and Dimensions

Machine Dimensions4300 x 3200 x 3300mm
Net Weight10000kg

Standard Accessories

  • 3 Axis Digital Readout
  • 3 Axis Power Feed
  • LED Work Lamp
  • Coolant System
  • Table Guard
  • Drawbar and Drawbar Wrench
  • Chip Tray/Collector
  • Automatic Lubrication System
  • Toolbox
  • Operation Manual

Optional Accessories

  • Semi-Universal Dividing Head
  • Fully Universal Dividing Head
  • Rotary Table
  • Slotting Head
  • Machine Vice
  • Clamp Kit
  • Drill Chuck
  • ER Collet Milling Collet Chuck Set
  • Boring Head
  • Reducing Sleeve Set
  • Combination Shell End Mill Arbors
  • Long Milling Arbors
  • End Mill Set
  • Angle Plate
  • Tilting Angle Plate
