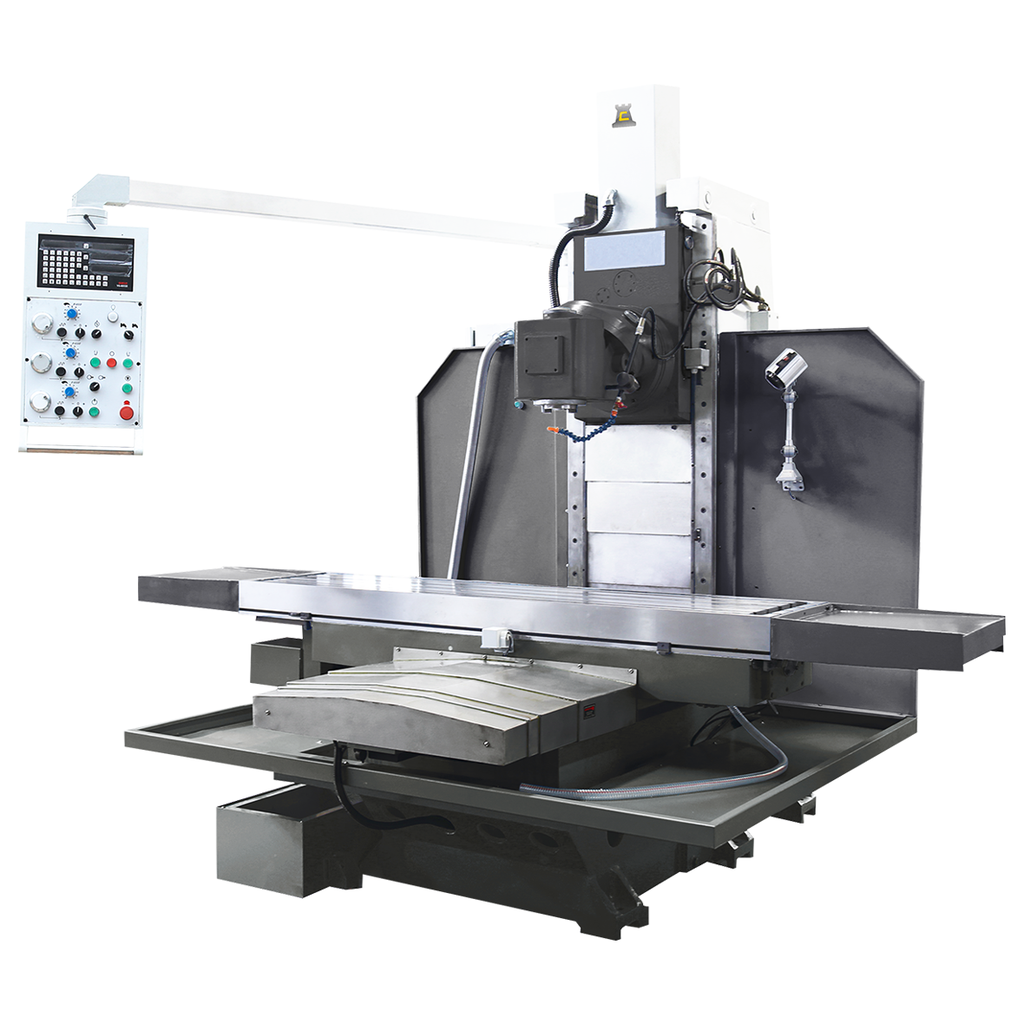

Chester Hercules X Super Servo Bed-Type Milling Machine with Universal Head

Chester Hercules X Super Servo Bed-Type Milling Machine with Universal Head

Please contact our Sales Team for pricing: [email protected]. Or Call us Today: 01543 448940
Table Size: 2500 x 600mm
Spindle Taper: 7:24, ISO50
Milling Machines
Contact Us

Please contact our team for a custom quote and competitive pricing

Add to cart
Add to wishlist
Price
£ 0.00 £ 0.00

Features:

  • Servo-driven ballscrew feed on all three axes
  • Bed-type universal milling machine
  • Two-stage automatic spindle transmission for low-speed high-torque cutting
  • Universal rotary head for multi-angle machining
  • ISO50 spindle taper with wide tooling compatibility
  • Heavy-duty rigid base and column construction
  • Turcite on guideways for smooth, crawl-free movement
Table

Working Surface2500 x 600mm
T-Slots (Qty/Width)5/20mm
T-Slot Pitch (Centres)100mm
X-Axis Travel (Manual)1800mm
X-Axis Travel (Automatic)1800mm
Y-Axis Travel (Manual)
700mm
Y-Axis Travel (Automatic)
700mm
Z-Axis Travel (Manual)
680mm
Z-Axis Travel (Automatic)
680mm
Load Capacity
2000kg
Spindle

Spindle Taper7:24, ISO50
Speed Control2-step + Variable
Speed Range6-300rpm/300-1500rpm
Spindle Centre to Column8-660mm
Spindle Nose to Table
8-660mm
Drawbar
M24x298mm
Head Swivel Range
360°
Feed Rates

Number of FeedsVariable
X-Axis (Longitudinal)2.5-3000mm/min
Y-Axis (Cross)2.5-3000mm/min
Z-Axis (Vertical)2.5-2500mm/min
X-Axis Rapid Traverse
6000mm/min
Y-Axis Rapid Traverse
6000mm/min
Z-Axis Rapid Traverse
3000mm/min
Motor/Type

Spindle Motor/Geared11kW (14.96hp)
Feed Motor, X Axis/Servo
3.6kW (4.83hp)
Feed Motor, Y Axis/Servo
4.7kW (6.30hp)
Feed Motor, Z Axis/Servo3.6kW (4.83hp)
Coolant Motor0.09kW (0.12hp)
Weight and Dimensions

Machine Dimensions4380 x 2520 x 2800mm
Net Weight9000kg

Standard Accessories:

  • 3 Axis Digital Readout
  • 3 Axis Power Feed
  • LED Work Lamp
  • Coolant System
  • Table Guard
  • Drawbar and Drawbar Wrench
  • Chip Tray/Collector
  • Manual Lubrication System
  • Toolbox
  • Operation Manual


Optional Accessories:

  • Automatic Lubrication System
  • Semi Universal Dividing Head
  • Fully Universal Dividing Head
  • Rotary Table
  • Machine Vice
  • Clamp Kit
  • Drill Chuck
  • ER Milling Collet Chuck Set
  • Boring Head
  • Reducing Sleeve Set
  • Combination Shell End Mill Arbors
  • Long Milling Arbors
  • End Mill Set
  • Angle Plate
  • Tilting Angle Table
Documents
Hercules X.pdf
