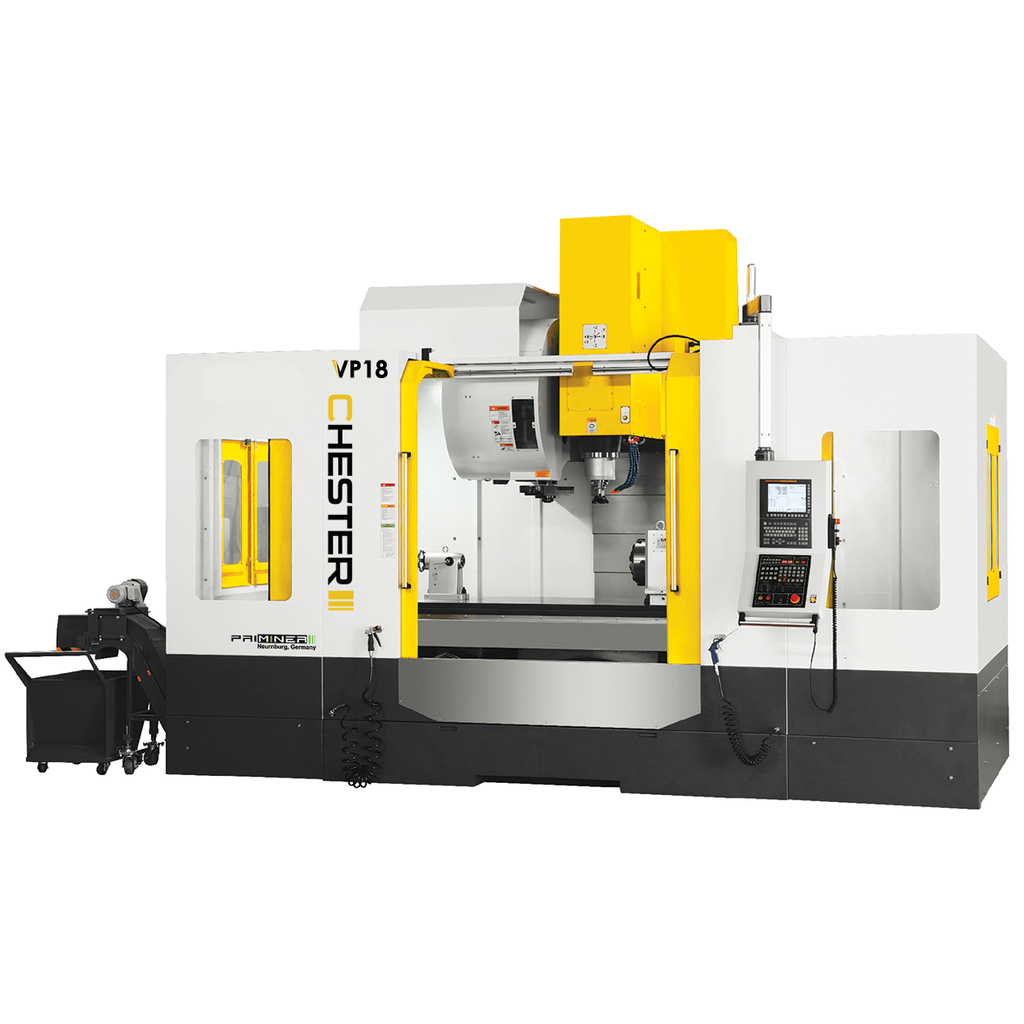

Best choice for super heavy duty cutting with large workpieces.
• X and Y axis with roller type linear guideways and Z axis with boxway guideways
• 50 taper spindle with belt drive 6000 rpm as standard, and optional gearbox
| Technical Specifications | VP18 |
| Table |
| Table size | 2000 x 900mm |
| T-slot (width x number x distance) | 18 x 7 x 120mm |
| Max. load | 2000kgs |
| Travel |
| X / Y / Z Travel | 1800 / 900 / 600mm |
| Spindle nose to table | 110 – 710mm |
| Spindle centre to column | 950mm |
| Spindle |
| Spindle taper | BT 50 |
| Spindle servo motor | 22 / 60 kW Siemens 15 / 18.5 kW Fanuc |
| Spindle speed | 6.000 min-1 |
| Feed |
| Rapid speed X/Y/Z | 20/20/15 m/min |
| Cutting speed | 1-12000 mm/min |
| Tool changer |
| Number of tools | 24 pcs |
| Max. tool length | 400mm |
| Max. tool diameter | 125 / 245 (next release)mm |
| Max. tool weight | 15kg |
| Accuracy (VDI 3441) |
| Positioning accuracy (without linear encoder) Positioning repeatability (without linear encoder) Positioning accuracy (with linear encoder) Positioning repeatability (with linear encoder) | 0.016mm / Full Travel 0.010mm / Full Travel 0.012mm / Full Travel 0.008mm / Full Travel |
| Dimensions & weight |
| Dimensions | 6060 x 3270 x 3650mm |
| Weight | 17500kg |
STANDARD ACCESSORIES
• Fully enclosed splash guard
• Belt drive spindle 6000 rpm
• 24 pockets arm tool changer
• Chip conveyor (2 screw type and 1 chain type)
• Air-conditioned electrical cabinet
• Rigid tapping
• Ethernet, CF card and USB interface
• Automatic lubrication system
• Coolant system
• LED working lamp
• End of program light
• Electronic handwheel (MPG)
• Tool box
• Leveling bolts and blocks
• Coolant gun
• Air gun
• Air blast during cutting
• User Manual
OPTIONAL ACCESSORIES
• Spindle cooling system
• Gear box spindle 6000 rpm with transmission ratio 1:4
• Z axis travel 720 mm (spindle nose table 160-880 mm)
• CTS Coolant through spindle + ATS
• Oil skimmer
• Workpiece probe
• Tool probe
• 4th axis
• 4/5th axis
