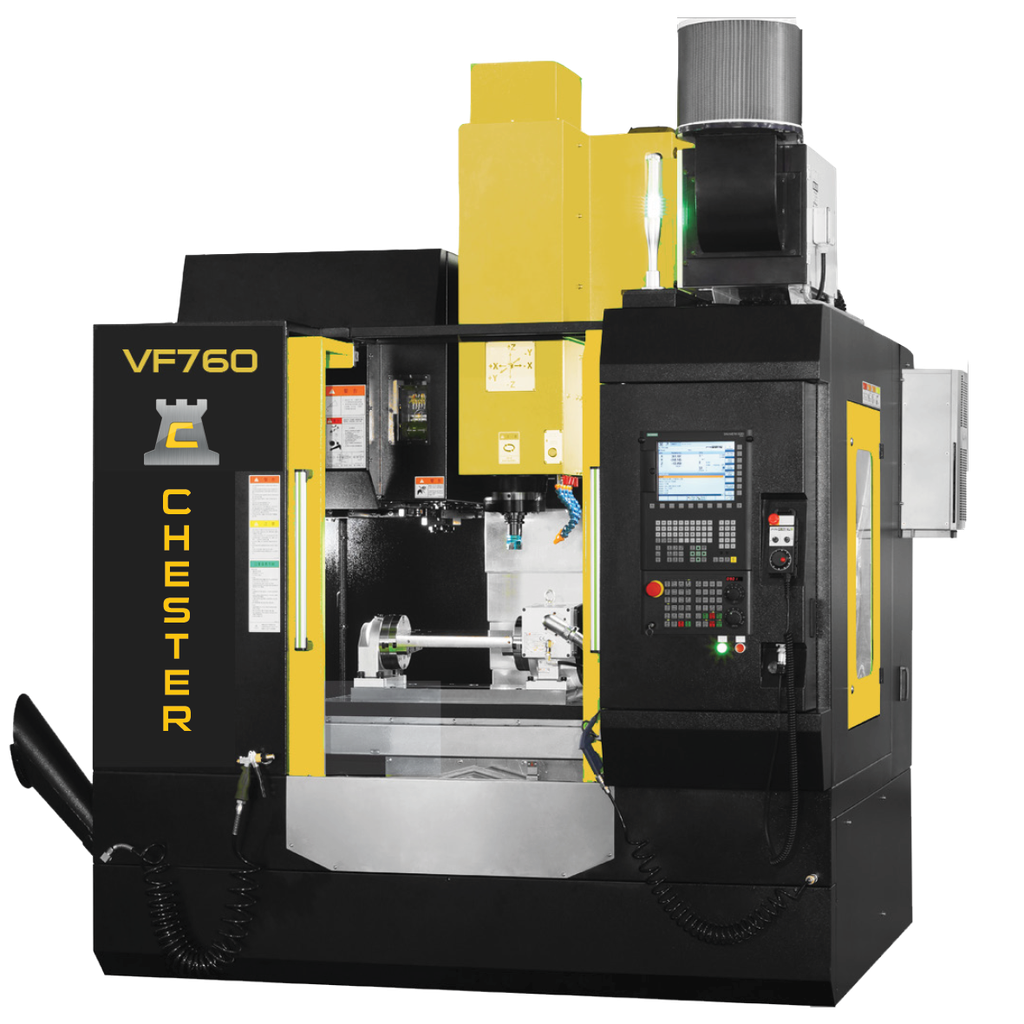

CHESTER VF760 HIGH SPEED ULTRA PERFORMANCE CNC MACHINING CENTRE
Please contact our Sales Team for pricing: [email protected]. Or Call us Today: 01543 448940
Table Size: 900 x 420mm
Spindle Taper: SK40 / BT40 / CAT40
CNC Machining Centres
The Chester VF760 High Speed Ultra High Performance CNC Machining Centre is the ideal CNC machine for precision engineering.
The Chester VF760 High Speed Ultra Performance CNC Vertical Machining Centre features advanced machine design has a reinforced body structure through FEM analysis and extra wide machine column and base design to ensure the high rigidity during high speed movement. The VF series offers superb cutting performance and reduced vibration to meet the highest machining demands.
Our CNC Machining Centres offer:
- High speed performance and high rigidity for precision machining
- High spindle torque
- BBT spindle for higher rigidity
- Roller type linear guideway
- Direct drive provides backlash free, best accuracy, reliability and stability
- Cast iron is tempered for stress relief to ensure structural stability without deformation
- C3 class ballscrews ensures the highest accuracy and durability
- Pre-tension on all axis minimizes thermal distortion
| Technical Specifications | VF760 |
| Table |
| Table size | 900 x 420mm |
| T-slot (width x number x distance) | 14 x 3 x 125 mm |
| Max. load | 500kgs |
| Travel |
| X / Y / Z Travel | 700 / 450 / 520mm |
| Spindle nose to table | 100 – 620mm |
| Spindle centre to column | 517mm |
| Spindle |
| Spindle taper | SK 40 / BT 40 / CAT 40
9 / 22 kW Siemens; 11 / 18.5kW Fanuc 12000rpm HSK A63, 20000rpm 20/24kW; 35/42Nm |
| Spindle servo motor |
| Spindle speed Spindle(option 1) Motor power/torque |
| Feed |
| Rapid feed X/Y/Z | 48 m/min (24 m/min opt.) |
| Cutting feed | 1-12.000 m/min |
| Tool changer |
| Number of tools | 24 pcs |
| Max. tool length | 300mm |
| Max. tool diameter | 78 (125)mm |
| Max. tool weight | 8kgs |
| Accuracy (VDI 3441) |
| Positioning accuracy (without linear encoder) | 0.010mm / Full Travel |
| Positioning repeatability (without linear encoder) | 0.006mm / Full Travel |
| Positioning accuracy (with linear encoder) | 0.006mm / Full Travel |
| Positioning repeatability (with linear enoder) | 0.004mm / Full Travel |
| Dimensions & weight |
| Dimensions | 3250 x 2710 x 2900mm |
| Weight | 4500kgs |
STANDARD ACCESSORIES
• Fully enclosed splash guard
• Direct drive spindle 12000 rpm
• Spindle cooling system
• 24 pockets arm tool changer
• Air-conditioned electrical cabinet
• Rigid tapping
• Ethernet, CF card and USB interface
• Automatic lubrication system
• Coolant system
• LED working lamp
• End of program light
• Electronic handwheel (MPG)
• Tool box
• Leveling bolts and blocks
• Coolant gun
• Air gun
• Air blast during cutting
• Chain type chip conveyor
• User Manual
OPTIONAL ACCESSORIES
• CTS coolant through spindle + ATS
• Motor spindle 20000 rpm, HSK A63
• 4th axis
• 4/5th axis
• Workpiece probe
• Tool probe
• Linear scales
• Oil skimmer
