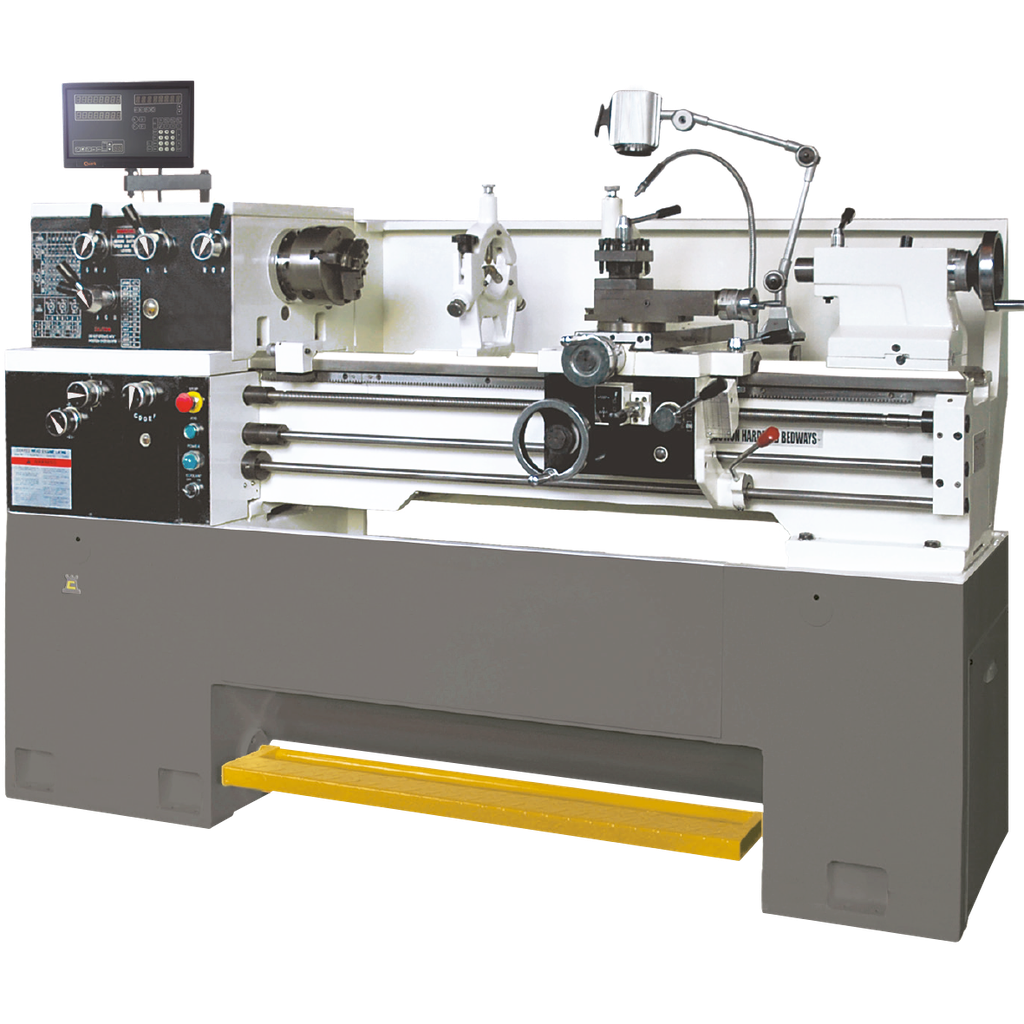

Chester Voyager Lathe
Please contact our Sales Team for pricing: [email protected]. Or Call us Today: 01543 448940
Distance Between Centres: 1000mm
Swing over Bed: 356mm
Manual Lathes
Education
A high performance metal lathe that’s ideal for machining.
• Removable Swarf Tray
• Large Range of Speeds
• Rigid Construction
• Optional Taper Turning Attachment
• Bed Stop
• Jog Facility
| Centre Height | 178mm |
| Swing over Bed | 356mm |
| Distance Between Centres | 1000mm |
| Swing over Cross Slide | 210mm |
| Swing in Gap | 508mm |
| Gap Length in Front of Face Plate | 200mm |
| Cross Slide Travel | 180mm |
| Top Slide Travel | 90mm |
| Bed |
|
| Width | 260mm |
| Weight of Work Piece in Chuck | 100kg |
| Weight of Work Piece between Centres | 200kg |
| Headstock |
|
| Spindle Nose | D1-4 |
| Spindle Bore | 40mm |
| Spindle Taper | MT5 |
| Number of Spindle Speed Ranges | 12 |
| Range of Spindle Speeds | 40-1800rpm |
| Tool Section | 16 x 16mm |
| Tailstock |
|
| Quill Diameter | 45mm |
| Quill Travel | 120mm |
| Quill Internal Taper | MT3 |
| Feeds Range and Gearbox |
|
| Longitudinal Feeds | 0.03-0.688mm/rev |
| Cross Feeds | 0.015-0.220mm/rev |
| Metric Threads | 0.45-7.5mm (22steps) |
| Imperial Threads | 4-56tpi (28 teps), 4-112tpi (40steps) |
| Leadscrew Pitch | 4mm |
| Motors |
|
| Main Motor | 2.2kW (3hp) |
| Coolant Pump Motor | 0.04kW (0.05hp) |
| Weight And Dimensions |
|
| Machine Dimensions | 1900 x 710 x 1170mm |
| Net Weight | 1190kg |
STANDARD ACCESSORIES
• 3 Jaw Chuck 200mm
• 4 Jaw Chuck 200mm
• Digital Read Out
• One Piece Cast Iron Base
• LED Machine Lamp
• Chuck Guard
• Toolpost Guard
• Leadscrew Guard
• Fixed Steady
• Travelling Steady
• Full Length Rear Splash Guard
• Coolant System
• Foot Brake
• Four Way Tool Post
• Thread Chasing Dial
• Single Position Micrometer Bed Stop
• Reducing Sleeve
• Steel Centre
• Tool Box
• Operation Manual
OPTIONAL ACCESSORIES
• Soft Jaws
• Quick Change Tool Post with Tool Holders
• Taper Turning Attachment
• Live Centre
• Indexable Lathe Tools
• Face Plates
• Drill Chuck and Arbor
• Machine Mounts
• 5C Collets and Chuck
