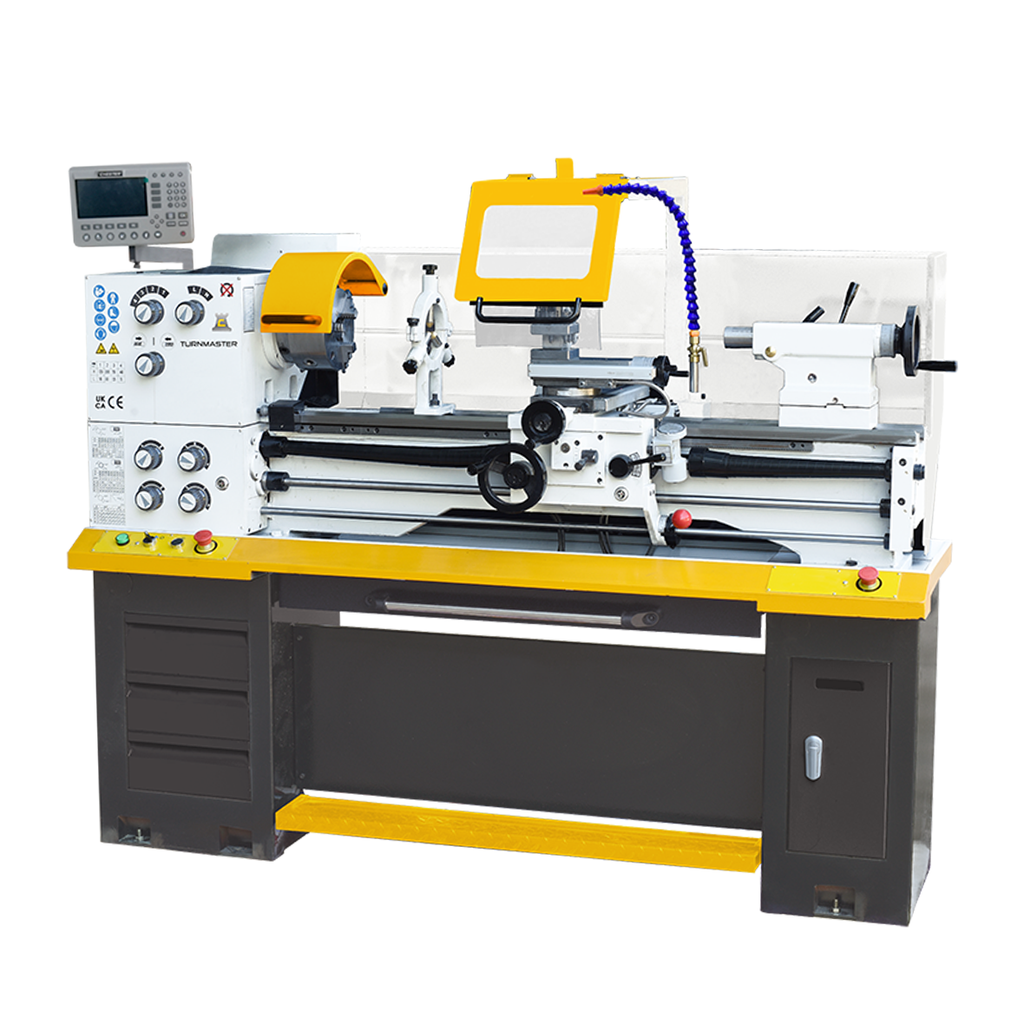

Chester Turnmaster Lathe, 360VSx1000
Please contact our Sales Team for pricing: [email protected]. Or Call us Today: 01543 448940
Distance Between Centres: 1000mm
Swing over Bed: 360mm
Manual Lathes
Education
• 2 Axis DRO
• Precision Ground and Hardened Bedways
• Head Stock Gears are made of High Quality Hardened and Ground Steel
Model | Turnmaster 360VS x 1000 |
Centre Height | 179mm |
Swing over Bed | 360mm |
Distance between Centres | 1000mm |
Swing over Cross Slide | 223mm |
Cross Slide Travel | 160mm |
Top Slide Travel | 130mm |
Bed |
|
Width | 187mm |
Max. Weight of Work Piece between Centres | 153kg |
Headstock |
|
Spindle Nose | D1-5 |
Spindle Bore | 52mm |
Spindle Taper | MT6 |
Number of Spindle Speeds | 2 steps variable speed |
Range of Spindle Speeds | 70-3000r/min |
Tool Section | 16 x 16mm |
Tailstock |
|
Quill Diameter | 32mm |
Quill Travel | 100mm |
Quill Internal Taper | MT3 |
Feeds Range & Gearbox |
|
Longitudinal Feeds | 0.05-1.392mm/rev (32 steps) |
Cross Feeds | 0.014-0.380mm/rev (32 steps) |
Metric Threads | 0.4-7mm (26 steps) |
Imperial Threads | 4-56tpi (34 steps) |
Leadscrew Pitch | 3mm |
Motors |
|
Main Motor | 2.2kW (2.95hp) |
Coolant Pump Motor | 0.04kW (0.054hp) |
Weight & Dimensions |
|
Machine Dimensions (L x W x H) | 1850 x 740 x 1350mm |
Net Weight | 540kg |
Standard Accessories
• 3 Jaw Chuck 178mm
• 4 Jaw Chuck 200mm
• Digital Read Out
• Machine Base
• LED Machine Lamp
• Chuck Guard
• Toolpost Guard
• Leadscrew Guard
• Fixed Steady
• Travelling Steady
• Full Length Rear Splash Guard
• Coolant System
• Four Way Tool Post
• Thread Chasing Dial
• Single Position Micrometer Bed Stop
• Reducing Sleeve
• Steel Centre
• Tool Box
• Manual
Optional Accessories
• Soft Jaws
• Quick Change Tool Post with Tool Holders
• Taper Turning Attachment
• Live Centre
• Indexable Lathe Tools
• Face Plate
• Drill Chuck and Arbor
• Machine Mounts
• 5C Collets and Chuck
