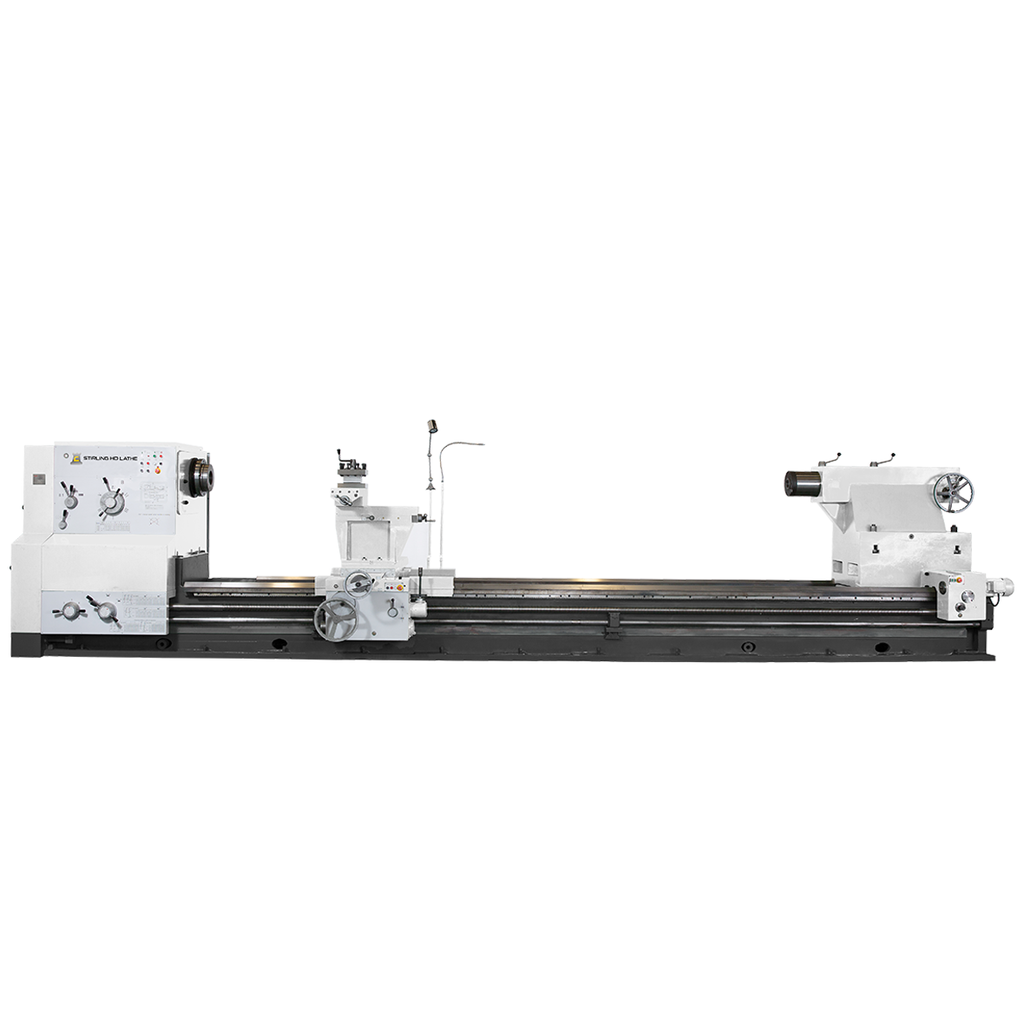

CHESTER STIRLING HD 2080 LATHE
Please contact our Sales Team for pricing: [email protected]. Or Call us Today: 01543 448940
Distance Between Centres: 12000mm
Swing over Bed: 2080mm
Manual Lathes
A large precision lathe, the Chester Stirling HD features motorised tailstock and powerful motor.
• Rapid Feed
• Clutch
• Hardened and Ground Bedways
• 10T Capacity
| Model | Stirling HD 2080 |
| Centre Height | 1040mm |
| Swing over Bed | 2080mm |
Distance Between Centres | 2000/3000/4000/5000/6000/8000/10000/12000mm |
| Swing over Cross Slide | 1600mm |
| Swing in Gap (optional) | 2380mm |
| Gap Length in Front of Face Plate (optional) | 450mm |
| Cross Slide Travel | 780mm |
| Top Slide Travel | 280mm |
| Bed |
| Width | 1100mm |
| Max. Weight of Work Piece in Chuck | 2000kg |
| Max. Weight of Work Piece between Centres | 10T (Optional 20T or higher) |
| Headstock |
| Spindle Nose | A2-15 |
| Spindle Bore | 130mm |
| Spindle Taper | Metric 140 |
| Number of Spindle Speed Ranges | Forward 21 steps
Reverse 12 steps |
| Range of Spindle Speeds | 2.5-250r/min (opt. 3.15-315r/min) |
| Tool Section | 45 x 45mm |
| Tailstock |
| Quill Diameter | 260mm |
| Quill Travel | 300mm |
| Quill Internal Taper | Metric 80 |
| Feeds Range and Gearbox |
| Longitudinal Feeds | 0.1-12mm (56steps) |
| Cross Feeds | 0.05-6mm (56steps) |
| Metric Threads | 1-120mm (44steps) |
| Imperial Threads | 1/4-24tpi (31steps) |
| Module Threads | 0.5-60mp (45steps) |
| Diametrical Threads | 1/2-56dpi (38steps) |
| Leadscrew Pitch | 12mm |
| Rapid Feed : Longitudinal/Cross | 3400mm/min, 1700mm/min |
| Motors |
| Main Motor | 30kW (40hp) |
| Coolant Pump Motor | 0.45kW (0.60hp) |
| Rapid Feed Motor | 1.5kW (2.0hp) |
| Tailstock Motor | 1.5kW (2.0hp) |
| Weight And Dimensions |
| Machine Dimensions (3m machine) | 6280 x 2200 x 2750mm |
| Net Weight | 20600kg |
STANDARD ACCESSORIES
• 4-Jaw Chuck 1250mm
• Digital Read Out
• LED Machine Lamp
• Cast Iron Base
• Chuck Guard
• Toolpost Guard
• Fixed Steady
• Motorised Tailstock
• Splash Guard behind Carriage
• Coolant System
• Four Way Tool Post
• Reducing Sleeve
• Steel Centre
• Tool Box
• Operation Manual
OPTIONAL ACCESSORIES
• Gap Bed
• Taper Turning Attachment
• Traveling Steady
• Larger Fixed Steady
