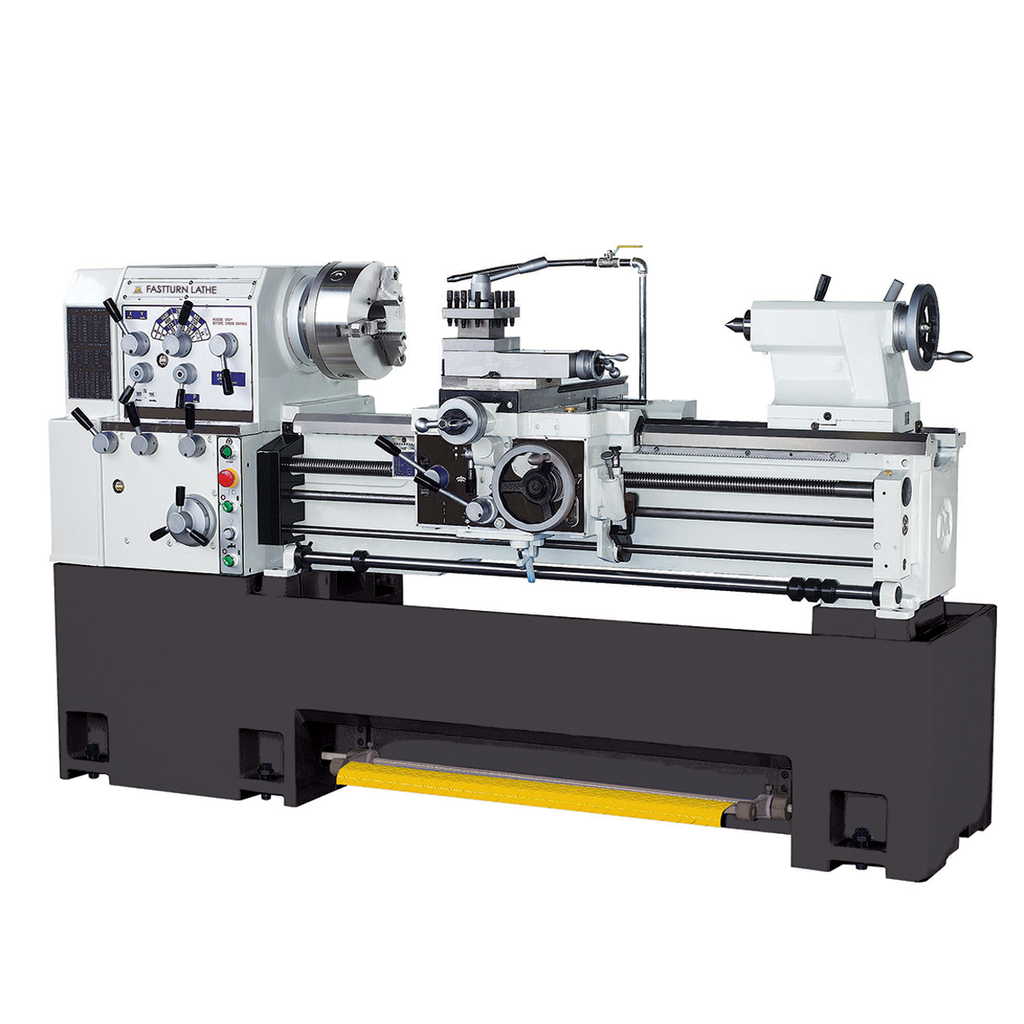

Chester Fast Turn Lathe, 430
Please contact our Sales Team for pricing: [email protected]. Or Call us Today: 01543 448940
Distance Between Centres: 2200mm
Swing over Bed: 420mm
Manual Lathes
A high speed lathe with large swing and MT6 taper.
Features:
- Equipped with FAG or SKF precision spindle bearings; capable of 8mm cutting depth on Ø50mm workpiece; roundness accuracy up to 0.003mm (200mm long)
- Thermal treated and precision ground alloy gears
- Wear-resistant phosphor bronze lead screw nuts
- Durable oil bath type cross slide (for S series)
- Thermal treated Meehanite cast bed
- One-piece machine base provides high rigidity and reduces vibration
- High-capacity coolant tank ensures sufficient coolant output
Model | Fast Turn 430
|
Centre Height | 215mm |
Swing over Bed | 420mm |
Distance between Centres | 560/760/1000/1500/2200mm |
Swing over Cross Slide | 240mm |
Swing in Gap | 650mm |
Gap Length in front of Face Plate | 158,158,158,209,209mm (147,147,147,198,198mm optional) |
Cross Slide Travel | 250mm |
Top Slide Travel | 125mm |
Bed |
|
Width | 300mm |
Max. Weight of Work Piece in Chuck | 60kg |
Max. Weight of Work Piece between Centres | 880kg |
Headstock |
|
Spindle Nose | ASA D1-6 |
Spindle Bore | 58mm (80mm optional) |
Spindle Taper | MT6 |
Number of Spindle Speeds | 12 steps |
Range of Spindle Speeds | 20-2000rpm |
Tool Section | 25 x 25mm |
Tailstock |
|
Quill Diameter | 58mm |
Quill Travel | 150mm |
Feeds Range & Gearbox |
|
Longitudinal Feeds | 0.05~0.76mm/r |
Cross Feeds | 0.03~0.49mm/r |
Metric Threads | P0.5~P7 |
Imperial Threads | 4~56tpi |
Module Threads | 4~56tpi |
Diametrical Threads | 0.5~7mm |
Leadscrew Pitch | 4tpi or 6mm |
Rapid Feed : Longitudinal/Cross | 0.05~0.49/rev |
Motors |
|
Main Motor | 3.75kW (5hp) |
Coolant Pump Motor | 0.1kW(0.125hp) |
Rapid Feed Motor | 0.188kW (0.25hp) |
Weight & Dimensions |
|
Machine Dimensions (L x W x H) | 1650/1890/2150/2650/3420 x 810 x 1190mm |
Net Weight | 1300/1380/1450/1600/2000kg |
Standard Accessories
• 3 & 4 Jaw Chucks
• Digital Read Out
• LED Machine Lamp
• One Piece Cast Iron Base
• Chuck Guard
• Fixed Tool Post Guard
• Leadscrew Guard
• Fixed Steady
• Traveling Steady
• Full Length Rear Splash Guard
• Coolant System
• Foot Break
• Four Way tool post
• Thread Chasing Dial
• Reducing sleeve
• Steel Centre
• Tool Box
• Operation Manual
Optional Accessories
• Soft Jaws
• Quick Change Tool Post with Tool Holders
• Taper Turning Attachment
• Live Centre
• Indexable Lathe Tools
• Face Plate
• Drill Chuck and Arbor
• Machine Mounts
• Four Position Carriage Stop
• Micro Carriage Stop
• 5C Collets and Chuck
• Hydraulic Copy Attachment
• I.D/O.D Grinder
• Change gears for D.P and module thread
