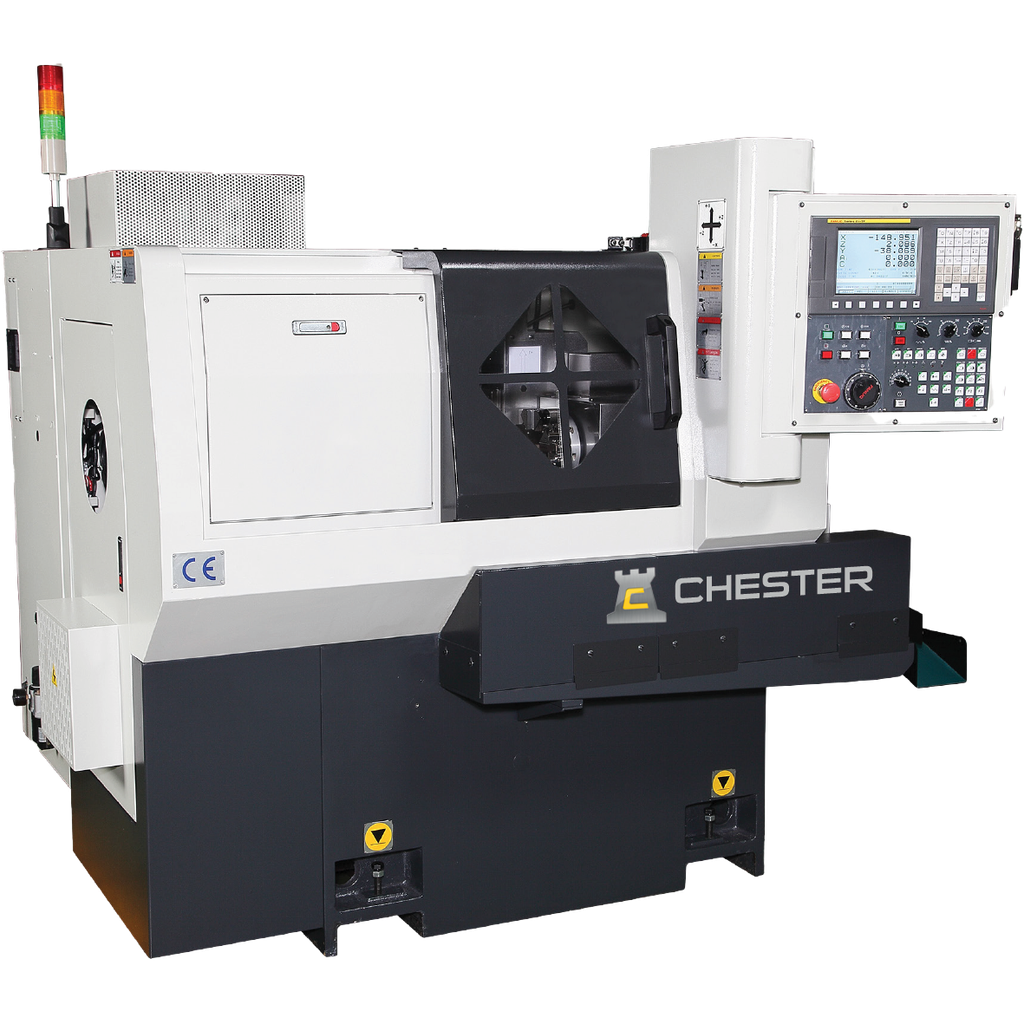

High performance CNC Machines ideal for combined machining.
| Model | HT-25GT/32GT |
| Capacity |
|
| Max. Swing Over Bed | 500mm |
| Max. Turning Diameter | 100mm |
| Max. turning Length | 100mm |
| Headstock and Main Spindle |
|
| Spindle Max. Bar Capacity | 25mm/32mm |
| Spindle Speed Range | 50-6000rpm |
| Travel |
|
| X Axis Stroke | 178mm |
| Y Axis Stroke | 258mm |
| Z Axis Stroke | n/a |
| Rapid Traverse | 16m/min |
| Turning Speed | 6m/min |
| Cutting Capacity |
|
| OD Tool Holder | 16mm |
| ID Tool Holder | 20mm |
| Cross Live Tool | n/a |
| Motor |
|
| Power Requirement | 10kva |
| Coolant Tank |
|
| Air Pressure Requirement | 5kg/cm² |
| Coolant Tank | 120L |
| Dimensions |
|
| Machine Dimensions (LxWxH) | 1970X1670X1685mm |
| Weight | 1700kg |
STANDARD ACCESSORIES
• Work Lamp
• Coolant System
• Splash Guard
• Tool Box
• Levelling Blocks
• Foot Switch
• Collet Chuck Holder
• Heat Exchanger
• Material Stop Bar
• Parts Catcher
• Parts Conveyor
• 8 Position Hydraulic Turret
• Inner Cutting Tool Sleeve 8,10,12,16mm
• 3 Position Tool Holder
OPTIONAL ACCESSORIES
• Transformer
• Chip Conveyor & Cart
• 4” 3 Jaw Chuck
• Air conditioner for Electrical Cabinet
• High Pressure Coolant System 30
• Bar(with Sub Coolant Tank)
• Hydraulic Bar Feeder VITO32/3M
