Our Hawk TC-250C CNC lathes feature Hydraulic system with Shopturn and MPG. With 240/830mm travel and 8 position hydraulic turret.
Processing Range |
|
Max. Swing over Bed | Ф550mm |
Max. Swing over Saddle | Ф370mm |
Max. Turning Diameter | Φ360mm |
Max. Turning Length | 810mm |
Max. Bar Capacity | Φ44mm |
Spindle |
|
Max. Spindle Speed | 5000rpm |
Spindle Nose | A2-6 |
Spindle Bore | Φ56mm |
Spindle Taper | Morse 6# |
Height from Spindle Centre to Ground | 1000mm |
Hydraulic Tailstock |
|
Tailstock Quill Diameter | Φ100mm |
Tailstock Quill Travel | 100mm |
Quill Centre | Morse 5# (Live center) |
Axis X/Z |
|
Travel X/Z | 240/830mm |
Rapid Travel Speed X/Z | 24/30mm |
X Axis ball screw dia/pitch | Φ32/8mm |
Z Axis ball screw dia/pitch | Φ32/10mm |

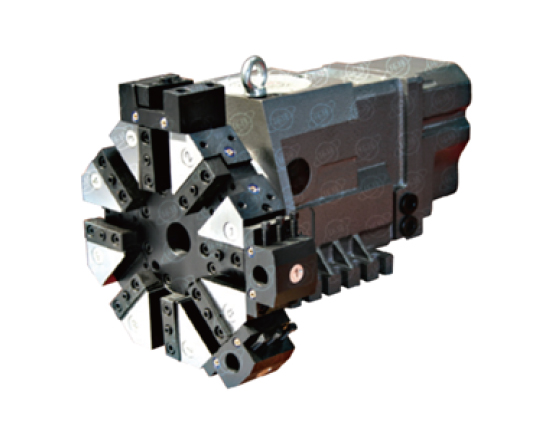

Hydraulic Turret |
|
Tool position | 8 |
Turning Tool Size | 25 x 25mm |
Boring Holder Diameter | Φ32/10mm |
Machining Accuracy |
|
Positioning Accuracy X/Z | 0.006/0.006mm |
Repeatability X/Z | 0.004/0.004mm |
Other |
|
Power Capacity | 25Kva |
Spindle Motor Power | 7.5/11kW |
Machine Dimensions (L x W x H) | 4160 x 1820 x 1820mm |
Net Weight | 4200kg |
Standard Accessories
- Siemens 828D
- Shopturn
- MPG
- 5000rpm belt drive spindle (Siemens 828D)
- 8 position hydraulic turret
- 10″ hollow hydraulic chuck with 1 set soft jaw
- Hollow hydraulic cylinder
- Hydraulic System
- Heat Exchanger
- Auto chip conveyer & chip cart
- Auto oil lubrication system
- Tri-color light
- Air gun
- Door lock switch
- Lighting Lamp
- Full enclosure splash guard
- Telescopic covers
Optional Accessories
- FANUC 0i TF(5) CNC system
- Auto parts catcher
- Bar feeder interface
- M30 Auto power off
- Hydraulic tailstock (only quill)
- Full hydraulic tailstock
- Bar feeder DH65
- Renishaw tools measure HPMA
- Air conditioner for cabinet
