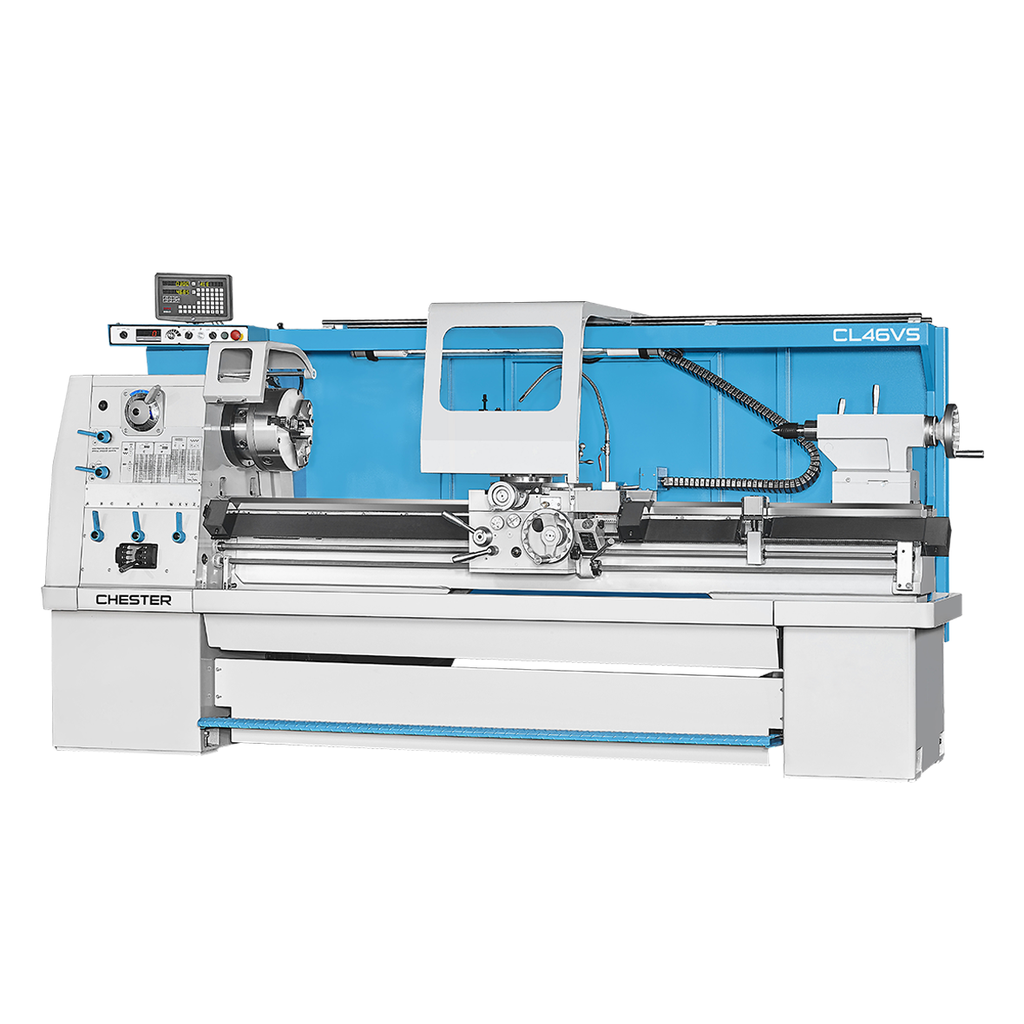

Chester CL46VS Lathe
Please contact our Sales Team for pricing: [email protected]. Or Call us Today: 01543 448940
Distance Between Centres: 3000mm
Swing over Bed: 460mm
Manual Lathes
Precision variable speed lathe with extremely low noise levels.
• All Castings are Properly Stabilised and Stress Relieved.
• Hardened & Ground Bedways
• Turcite B Coating Between the Bed and Carriage
• Extremely Low Noise Level
• Foot Brake
• Wide Bed Ways to absorb Vibration
• Built-in Coolant Pump
• Forward/Reverse Clutch
Centre Height | 230mm |
Swing over Bed | 460mm |
Distance between Centres | 1000/1500/2000/3000mm |
Swing over Cross Slide | 300mm |
Swing in Gap | 710mm |
Gap Width in front of Face Plate | 250mm |
Cross Slide Travel | 272mm |
Top Slide Travel | 137mm |
Bed |
|
Width | 345mm |
Max. Weight of Work Piece in Chuck | 80kg |
Max. Weight of Work Piece between Centres | 500kg |
Headstock |
|
Spindle Nose | D1-8 |
Spindle Bore | 80mm |
Spindle Taper | MT7 |
Number of Spindle Speeds | 18 steps |
Range of Spindle Speeds | 18-8000rpm |
Tool Section | 25 x 25mm |
Tailstock |
|
Quill Diameter | 76mm |
Quill Travel | 165mm |
Quill Internal Taper | MT5 |
Feeds Range & Gearbox |
|
Longitudinal Feeds | 0.04-1.0mm |
Cross Feeds | 0.02-0.5mm |
Metric Threads | 0.4-14mm (40 steps) |
Imperial Threads | 2-72tpi (38 steps) |
Module Threads | 0.3-3.5mp (18 steps) |
Diametrical Threads | 8-44dp (21 steps) |
Leadscrew Pitch | 6mm |
Motors |
|
Main Motor | AC 7.5kW (10hp), Inverter |
Coolant Pump Motor | 0.09kW (0.13hp) |
Weight & Dimensions |
|
Machine Dimensions (L x W x H) | 2535/3035/3535/4624 x 1120 x 1745mm |
Net Weight | 2000/2200/2500/3000kg |
Standard Accessories
• 3 Jaw Chuck 12″
• 4 Jaw Chuck 12”
• Digital Read Out
• One Piece Cast Iron Base
• LED Machine Lamp
• Chuck Guard
• Fixed Toolpost Guard
• Leadscrew Guard
• Fixed Steady
• Travelling Steady
• Full Length Rear Splash Guard
• Coolant System
• Foot Brake
• Four Way Tool Post
• Thread Chasing Dial
• Reducing Sleeve
• Steel Centre
• Toolbox
• Operation Manual
Optional Accessories
• Soft Jaws
• Quick Change Tool Post with Tool Holders
• Taper Turning Attachment
• Tool Post Grinding Attachment
• Live Centre
• Indexable Lathe Tools
• Face Plate
• Drill Chuck & Arbor
• Machine Mounts
• Single Position Micrometer Bed Stop
• 5C Collet Chuck and Collets
• Electro Magnetic 10hp Motor Brake
• Sliding Tool Post Guard
• Deluxe Type Rear Splash Guard with Built-in Work Lamp
