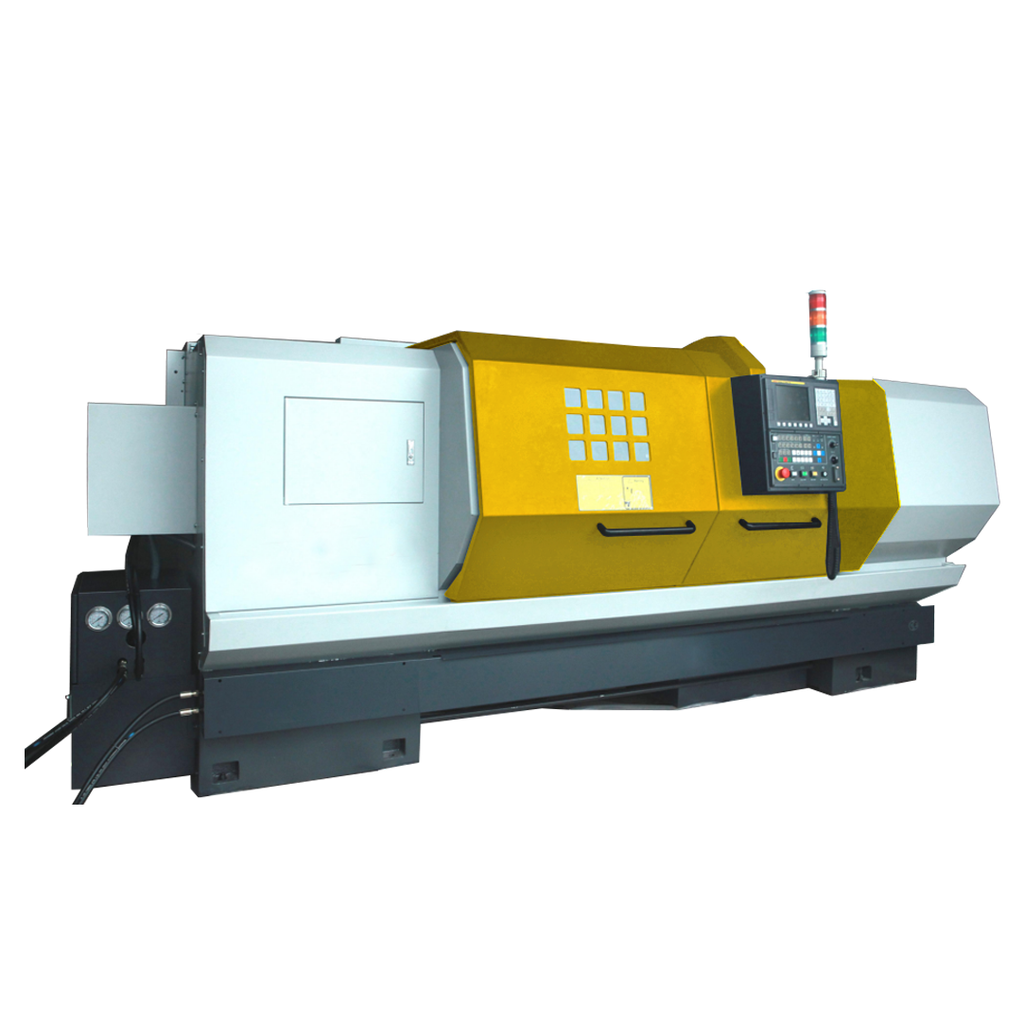

A high precision machine with 8-10m/min rapid feed, Fanuc controller, and Heat Exchanger for Electrical Cabinet.
| Model | Chieftain 660 x 3000 |
| Capacity |
|
| Max.Swing Over Bed | Ф660mm |
| Max. Swing over Carriage | Ф430mm |
| Max.Length of Workpiece | 3000mm |
| Max.Turning Length | 2900mm |
| 6-way Turret Max Turning Length | 2735mm |
| 6-way turret Max Turning Diameter | Ф520mm |
| Travel |
|
| Max. Cross Travel (X) | 365mm |
| Max. Longitudinal Travel (Z) | 2970mm |
| Feed |
|
| Rapid Feed for Axis X | 8m/min |
| Rapid Feed for Axis Z | 10m/min |
| Spindle |
|
| Spindle Nose | D8 |
| Spindle Bore | Ф105mm |
| Taper Bore of Spindle | Ф113 1:20 |
| Steps of Spindle Speed (Manual) | 4 |
| Spindle Speed (Manual Chuck) | 27~135, 55~270, 160~805, 325~1630rpm |
| Tool Post |
|
|
| Tool Post Stations | 4 way |
| Tool Cross Section | 32 x 32mm |
| Tailstock |
|
|
| External Diameter of Tailstock Sleeve | Ф75mm |
| Taper Bore of Tailstock Sleeve | MT5 |
| Max. Travel of Tailstock Sleeve | 150mm |
| Other |
|
|
| Min Input | 0.001mm |
| Main Motor Power | 11kw |
| Coolant Pump Power | 90w |
| Overall Dimensions | 4500 x 1250 x 1580mm |
| Net Weight | 5300kg |
STANDARD ACCESSORIES
• FANUC CNC Controler
• FANUC Servo Motors for X/Z and Spindle
• NSK Front Spindle Bearing
• 4-way Electrical Tool Post
• 325mm (12″) Manual Chuck
• Manual Tailstock
• Lubrication and Coolant System
• Heat Exchanger for Electrical Cabinet
• Full Cover
• Led Work Light
• Alarm Light
• Tool Box
• Manual
OPTIONAL ACCESSORIES
• Closed Hydraulic Chuck
• Hollow Hydraulic Chuck
• Hydraulic Tailstock
• 6-way Tool Post
• 8-way Tool Post
