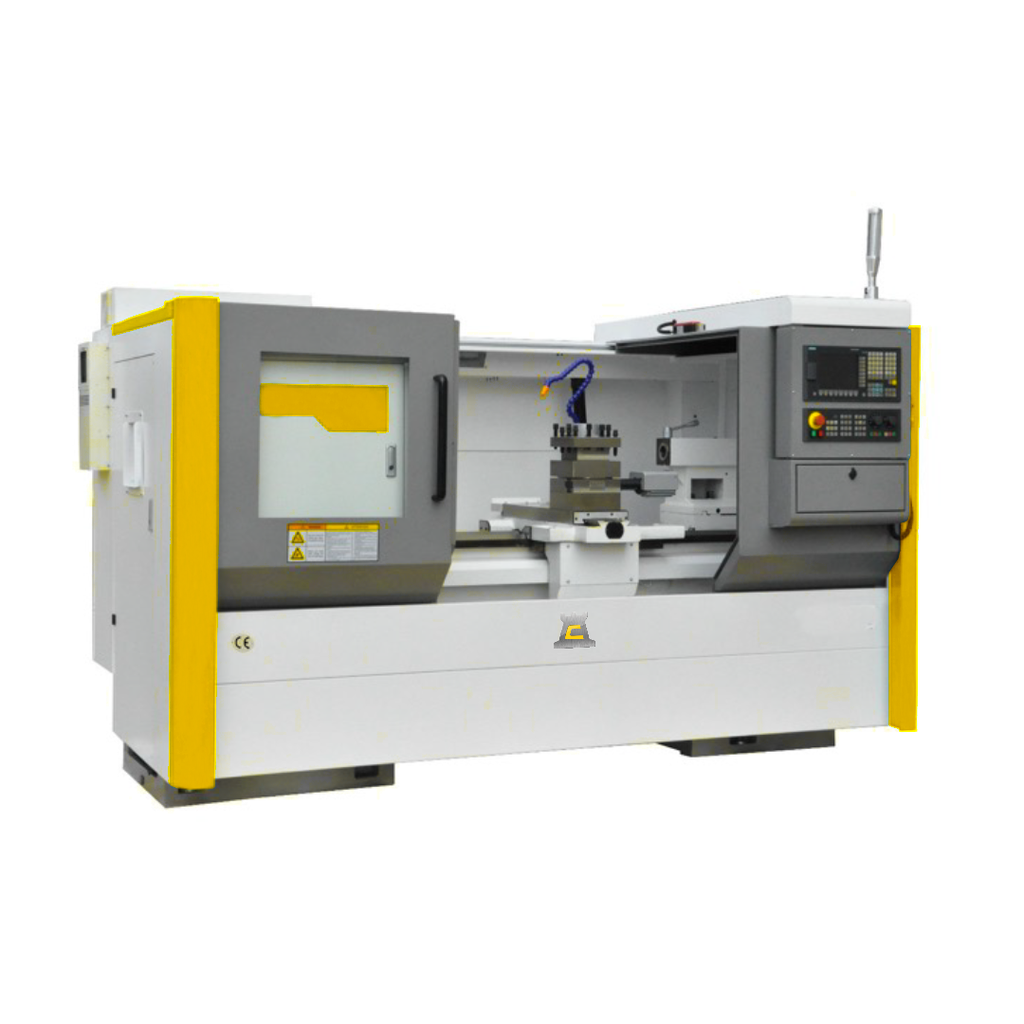

A precision machine that’s ideal for a range of applications. With Siemens controller and Heat exchanger for electrical cabinet.
| Model | Chieftain 22 Series |
| Capacity |
|
| Max. swing over bed | Ф560mm |
| Max. swing over carriage | Ф330mm |
| Max. length of workpiece | 750/1000/1500/2000/3000mm |
| Max. turning length | 650/900/1400/1900/2900mm |
| 6-way turret max turning length | 585/735/1235/1735/2735mm |
| 6-way turret max turning diameter | Ф420mm |
| Travel |
|
| Max. cross travel (X) | 320mm |
| Max. longitudinal travel (Z) | 710/970/1470/1970/2970mm |
| Feed |
|
| Rapid feed for axis X | 8m/min |
| Rapid feed for axis Z | 10m/min |
| Spindle |
|
| Spindle nose | A2-8 |
| Spindle bore | Ф80mm |
| Taper bore of spindle | MT7 |
| Steps of spindle speed (manual) | 4 |
| Spindle speed (manual chuck) | 27~135, 55~270, 160~805, 325~1630rpm |
| Tool Post |
|
|
| Tool post stations | 4-way |
| Tool cross section | 32 x 32mm |
| Tailstock |
|
|
| External diameter of tailstock sleeve | Ф75mm |
| Taper bore of tailstock sleeve | MT5 |
| Max. travel of tailstock sleeve | 150mm |
| General |
|
|
| Min input | 0.001mm |
| Main motor power | 7.5kw |
| Coolant pump power | 90w |
| Overall dimensions(L×W×H) | 2250/2500/3000/3500/4500×1250×1580mm |
| Net Weight | 2700/3000/3600/4100/4700kg |
Standard Accessories
• SIEMENS 808D CNC controller
• SIEMENS servo motor for X and Z axis
• SIEMENS servo motor for spindle
• 4-station electrical tool post
• 250mm manual 3-jaw chuck
• Manual tailstock
• Lubrication and coolant system
• Heat exchanger for electrical cabinet
• LED working lamp
• Tricolor alarm light
• Air gun
• Door lock switch
• Transformer
• SIEMENS or Schneider main electrical components
• Toolbox
Optional Accessories
• Fanuc 0I-TF(5) 3 axis
• Siemens 828D 3 axis
• 6- station electrical turret (boring tool seat x 2 pcs; square tool seat x 1 pcs)
• 10” closed 3-jaw hydraulic chuck + closed oil cylinder + hydraulic station
• 10” hollow 3-jaw hydraulic chuck + 75mm oil cylinder + hydraulic station
• Hydraulic tailstock
