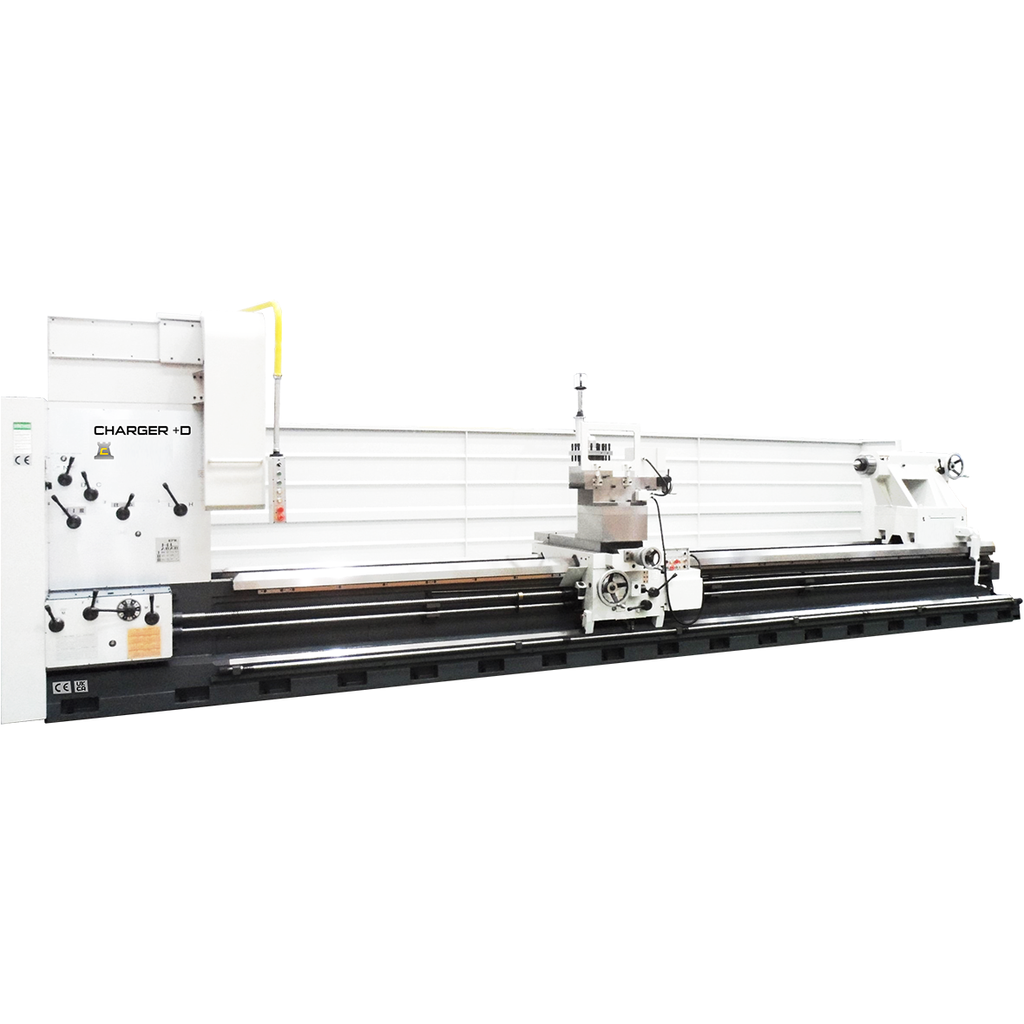

CHESTER CHARGER +D SERIES, 1400 LATHE
Please contact our Sales Team for pricing: [email protected]. Or Call us Today: 01543 448940
Distance Between Centres: 2000mm
Swing over Bed: 1400mm
Manual Lathes
Precision heavy duty metalworking lathes with automatic carriage stop and Electro-magnetic brake.
- Rapid Feed
- Clutch
- Turcite on Slideways
| Model | D 1400 |
| Centre Height | 700mm |
| Swing over Bed | 1400mm |
| Distance Between Centres | 2000-15000mm |
| Swing over Cross Slide | 1020mm |
| Swing in Gap (optional) | 1940mm |
| Gap Length in Front of Face Plate (optional) | 340mm |
| Cross Slide Travel | 760mm |
| Top Slide Travel | 300mm |
| Bed |
| Width | 800mm |
| Max. Weight of Work Piece between Centres | 12000kg |
| Headstock |
| Spindle Nose | A2-15/A2-20/A2-28 |
| Spindle Bore | 152-525mm |
| Spindle Taper | 1 :20 |
| Number of Spindle Speed Ranges | 12 steps |
| Range of Spindle Speeds | 6-400rpm |
| Tool Section | 50 x 50mm |
| Tailstock |
| Quill Diameter | 200/290mm |
| Quill Travel | 300mm |
| Quill Internal Taper | Metric 80 |
| Feeds Range and Gearbox |
Longitudinal Feeds | 0.17-2.48mm/rev (48 steps) |
Cross Feeds | 0.07 - 1.02mm/rev (48 steps) |
Metric Threads | 2-30mm/Pitch (44 steps) |
| Imperial Threads | 1-15tpi (42steps) |
| Module Threads | 1-15mp (32steps) |
| Diametrical Threads | 2-30dp (48steps) |
| Leadscrew Pitch | 50mm x 2tpi |
Rapid Feed : Longitudinal/Cross | 2600/1000mm/min |
| Motors |
Main Motor | 22.37kW (30hp) - 37.28kW (50hp) |
| Coolant Pump Motor | 0.75kW (1hp) |
| Rapid Feed Motor | 0.75kW (1hp) |
| Available Power Supply | 3 Phase |
| Weight And Dimensions |
| Machine Dimensions | 5900 x 2100 x 2300mm |
| Net Weight | 14000kg |
Standard Accessories
• LED Machine Lamp
• Cast Iron Base
• Chuck Guard
• Toolpost Guard
• Leadscrew Guard
• Fixed Steady
• Traveling Steady
• Rear Splash Guard
• Coolant System
• Electro-magnetic Brake
• Four Way Toolpost
• Thread Chasing Dial
• Automatic Carriage Stop
• Reducing Sleeve
• Steel Centre
• Toolbox
• Operation Manual
Optional Accessories
• 3 Jaw Chuck
• 4 Jaw Chuck
• Double Chuck System
• Digital Read Out
• Soft Jaws
• Quick Change Tool Post with Tool Holders
• Taper Turning Attachment
• Threading Auto Cycle Attachment
• Hydraulic Copy Attachment
• Boring Attachment
• Tailstock Chuck
• Live Centre
• Indexable Lathe Tools
• Face Plate
• Drill Chuck and Arbor
• Machine Mounts
