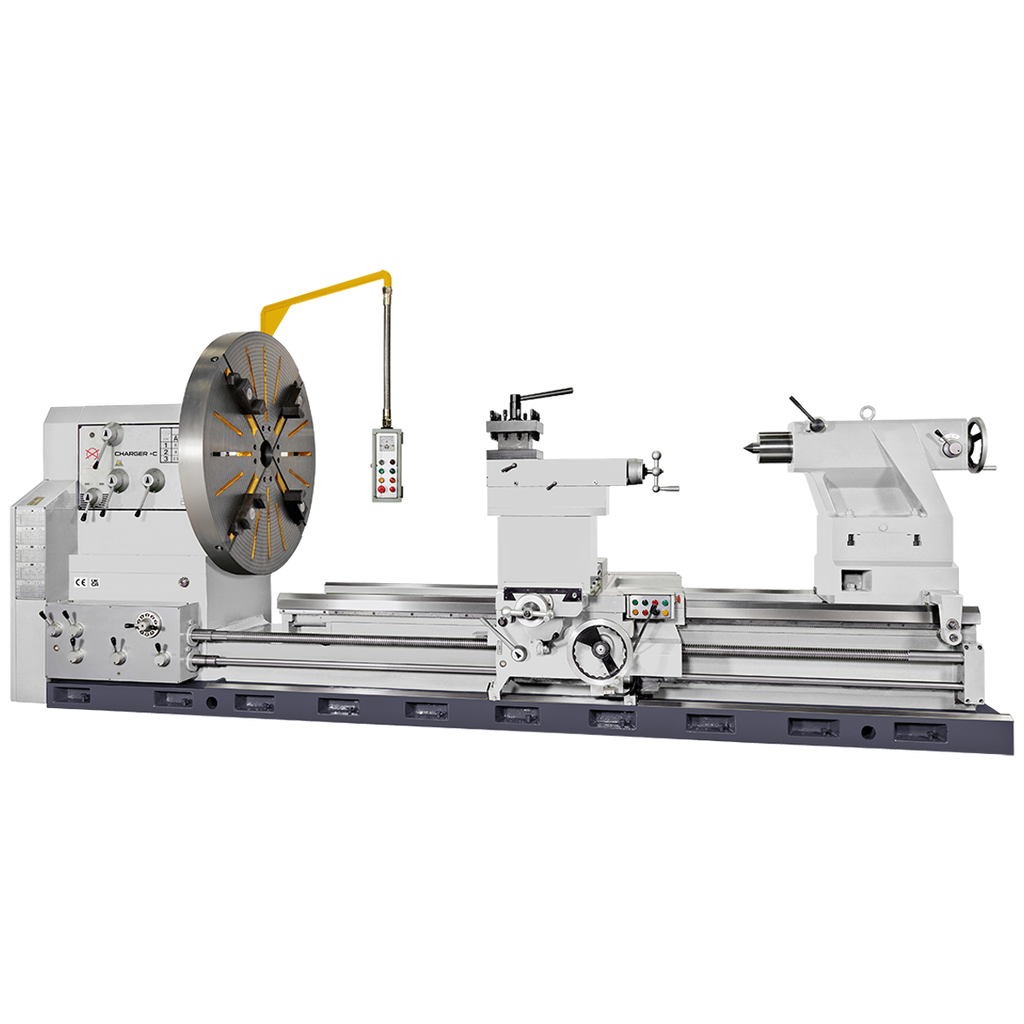

CHESTER CHARGER +C SERIES, 1500 LATHE
Please contact our Sales Team for pricing: [email protected]. Or Call us Today: 01543 448940
Distance Between Centres: 2000mm
Swing over Bed: 1500mm
Manual Lathes
Our Charger + C Lathes are ideal for a range of applications.
| Model | C 1500 |
| Centre Height | 750mm |
| Swing over Bed | 1500mm |
| Distance Between Centres | 2000-12000mm |
| Swing over Cross Slide | 1200mm |
| Swing in Gap (optional) | 2050mm |
| Gap Length in Front of Face Plate (optional) | 560mm |
| Cross Slide Travel | 950mm |
| Top Slide Travel | 420mm |
| Bed |
| Width | 850mm |
| Max. Weight of Work Piece in Chuck | 1800kg for 153mm bore
(2300kg for 230mm/260mm bore,2650kg for 308mm bore,3000kg for 360mm bore) |
| Max. Weight of Work Piece between Centres | 10000kg for 153mm bore
(11000kg for 230mm/260mm bore, 12000kg for 308mm bore,13000kg for 360mm bore) |
| Headstock |
| Spindle Nose | A2-11/A2-15 (OPT.)/A2-20(OPT.) |
| Spindle Bore | 153mm,230/260/308/360mm |
| Spindle Taper | MT6 |
| Number of Spindle Speed Ranges | 12 steps |
| Range of Spindle Speeds | 3-320rpm,2.5-250rpm, 5-500/4-400rpm(Opt) |
| Tool Section | 32 x 32mm |
| Tailstock |
| Quill Diameter | 180mm |
| Quill Travel | 300mm |
| Quill Internal Taper | MT6 |
| Feeds Range and Gearbox |
| Longitudinal Feeds | 0.085-10.08mm/r |
| Cross Feeds | 0.042-5.04mm/r |
| Metric Threads | 1-120mm (62steps) |
| Imperial Threads | 1/4-30tpi (70steps) |
| Module Threads | 0.25-30mp (53steps) |
| Diametrical Threads | 1-120dp (70steps) |
| Leadscrew Pitch | 2tpi |
| Rapid Feed : Longitudinal/Cross | longitudinal: 2,000mm/min. Cross: 950mm/min |
| Motors |
| Main Motor | 18.75kW (25hp),22.5kW (30hp) |
| Coolant Pump Motor | 0.188kW (0.25hp) |
| Rapid Feed Motor | 0.75kW (1hp) |
| Available Power Supply | 3 Phase |
| Weight And Dimensions |
| Machine Dimensions | 5000 x 2250 x 2350mm |
| Net Weight | 12600kg |
Standard Accessories
• 4 Jaw Chuck
• LED Machine Lamp
• Cast Iron Base
• Chuck Guard
• Toolpost Guard
• Leadscrew Guard
• Fixed Steady
• Traveling Steady
• Rear Splash Guard
• Coolant System
• Electro-magnetic Brake
• Four Way Toolpost
• Reducing Sleeve
• Steel Centre
• Toolbox
• Operation Manual
Optional Accessories
• 3 Jaw Chuck
• Double Chuck System
• Digital Read Out
• Soft Jaws
• Taper Turning Attachment
• Tailstock Chuck
• Live Centre
• Indexable Lathe Tools
• Face Plate
• Drill Chuck and Arbor
• Machine Mounts
