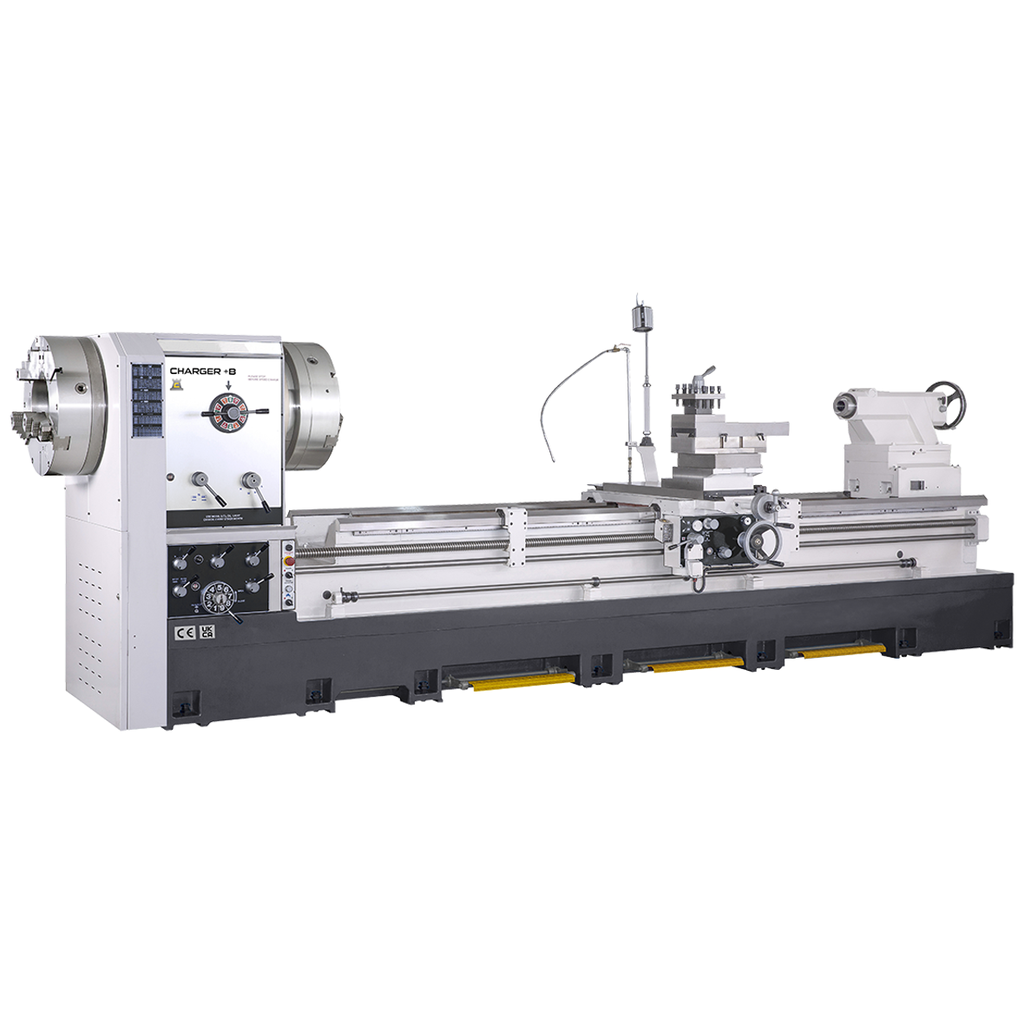

CHESTER CHARGER +B SERIES, 1100 LATHE
Please contact our Sales Team for pricing: [email protected]. Or Call us Today: 01543 448940
Distance Between Centres: 1838mm
Swing over Bed: 1100mm
Manual Lathes
A heavy duty machine with a big-bore spindle, ideal for tough machining requirements.
| Model | B 1100 |
| Centre Height | 550mm |
| Swing over Bed | 1100mm |
| Distance Between Centres | 1838/2338/3338/4338/5338/6338mm |
| Swing over Cross Slide | 855mm |
| Swing in Gap | 1480mm |
| Gap Length in Front of 30″ Face Plate | 405mm |
| Cross Slide Travel | 665mm |
| Top Slide Travel | 360mm |
| Bed | One Piece |
| Width | 615mm |
| Max. Weight of Work Piece in Chuck | 1060kg
(40″ Chuck) |
| Max. Weight of Work Piece between Centres | 6000kg |
| Headstock |
|
| Spindle Nose | A2-11/A2-15 (OPT.)/A2-20(OPT.) |
| Spindle Bore | 158mm/238mm (OPT. A2-15)/
312mm(OPT. A2-20) |
| Spindle Taper | 1/20 |
| Number of Spindle Speed Ranges | 12 steps |
| Range of Spindle Speeds | 8-650rpm/6-500rpm(OPT. A2-15)
/5-400rpm(OPT. A2-20) |
| Tool Section | 40 x 40mm |
| Tailstock |
| Quill Diameter | 120mm |
| Quill Travel | 290mm |
| Quill Internal Taper | MT6 |
| Feeds Range and Gearbox |
| Longitudinal Feeds | 0.05-0.7mm/r |
| Cross Feeds | 0.025-0.35mm/r |
| Metric Threads | 0.8-14mm |
| Imperial Threads | 2-28Tpi |
| Module Threads | 0.5-7mp |
| Diametrical Threads | 4-56tpi |
| Leadscrew Pitch | 45x2tpi or P12mm |
| Rapid Feed : Longitudinal/Cross | Z Axis=3700mm/min/X Axis=1800mm/min |
| Motors |
|
| Main Motor | 22.4kW(30hp)/29.8kW(40hp)(OPT.) |
| Coolant Pump Motor | 0.1kW(0.125hp)/0.188kW (0.25hp) |
| Rapid Feed Motor | 0.188kW (0.25hp) |
| Available Power Supply | 3 Phase |
| Weight And Dimensions |
|
| Machine Dimensions | 3750/4250/5250/6250/7250/8250 x 1880 x 1820mm |
| Net Weight | 6850/7300/8100/8900/9700/10500kg |
Standard Accessories
• Chuck Guard
• Toolpost Guard
• Leadscrew Guard
• Fixed Steady
• Travelling Steady
• Rear Splash Guard behind Carriage
• Coolant System
• Four Way Toolpost
• Reducing Sleeve
• Steel Centre
• Toolbox
• Operation Manual
Optional Accessories
• 4 Jaw Chuck
• 4 Jaw Face Plate
• Face Plate
• Taper Turning Attachment
• Follow Rest
• Rear Splash Guard
• Four Position Carriage Stop
• Micro Carriage Stop
• Quick Change Tool Post
• Live Centre
