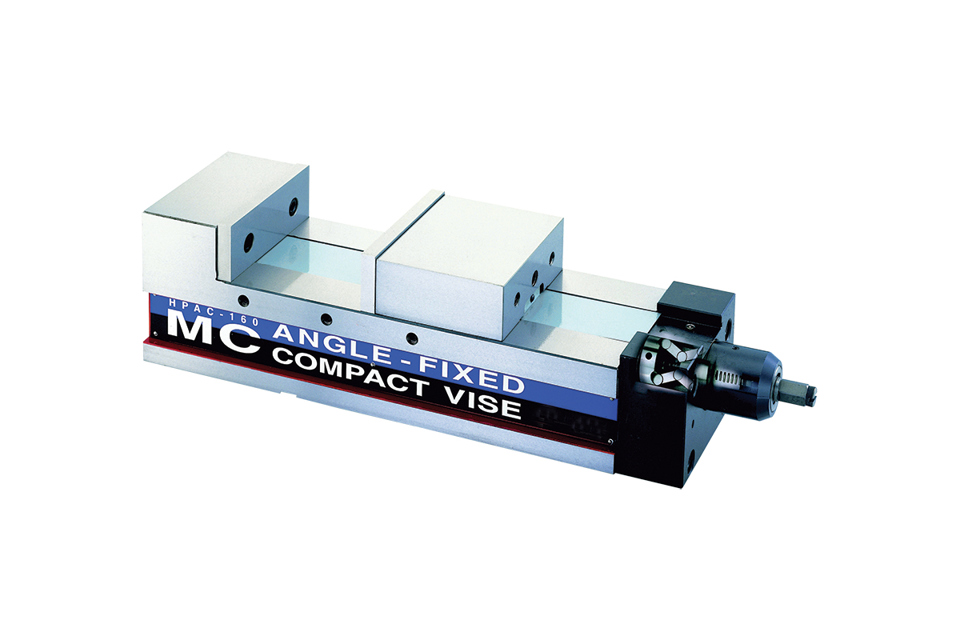

Precision vice with body made of Ductile Iron above FCD 60 grade in one solid piece. With very high rigidity, with a force of 4500kg, the shape will deflect less than 0.01mm.

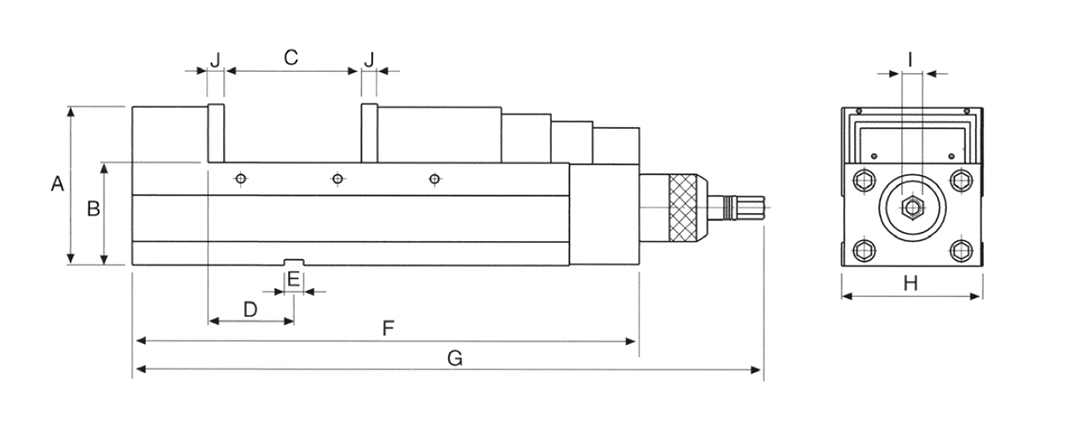

A | 170mm |
B | 110 ± 0.01 |
D | 100 ± 0.02 |
E | 18mm |
F | 635mm |
G | 743mm |
H | 201mm |
Clamping Force | 8000kg |
I | 19mm |
J | 18mm |
C | 0-285mm |
C1 | 90-380mm |
C2 | 155-440mm |
C3 | 240-530mm |
Weight | 95kg |
Slide ways are HARDENED to HRC50º to further increase durability and maintain positioning height over long use.
Using high-grade iron of over FCD 60 grade for high rigidity and also ANGLE-LOCK SYSTEM which automatically pulls the work piece down to the accurate position of within 0.01mm under 4500kg of pressure, this vice is most suitable for precision mould making on Machining Centres.
Vice can be mounted horizontally or vertically.
The patented MULTI-POWER SYSTEM is built of HIGH GRADE BEARING STEEL which doubles the clamping force. With half a turn the vice will clamp with 2500kg pressure, with a second half turn it will apply 4500kg of clamping force. With this special patented system the clamping force will never change.
