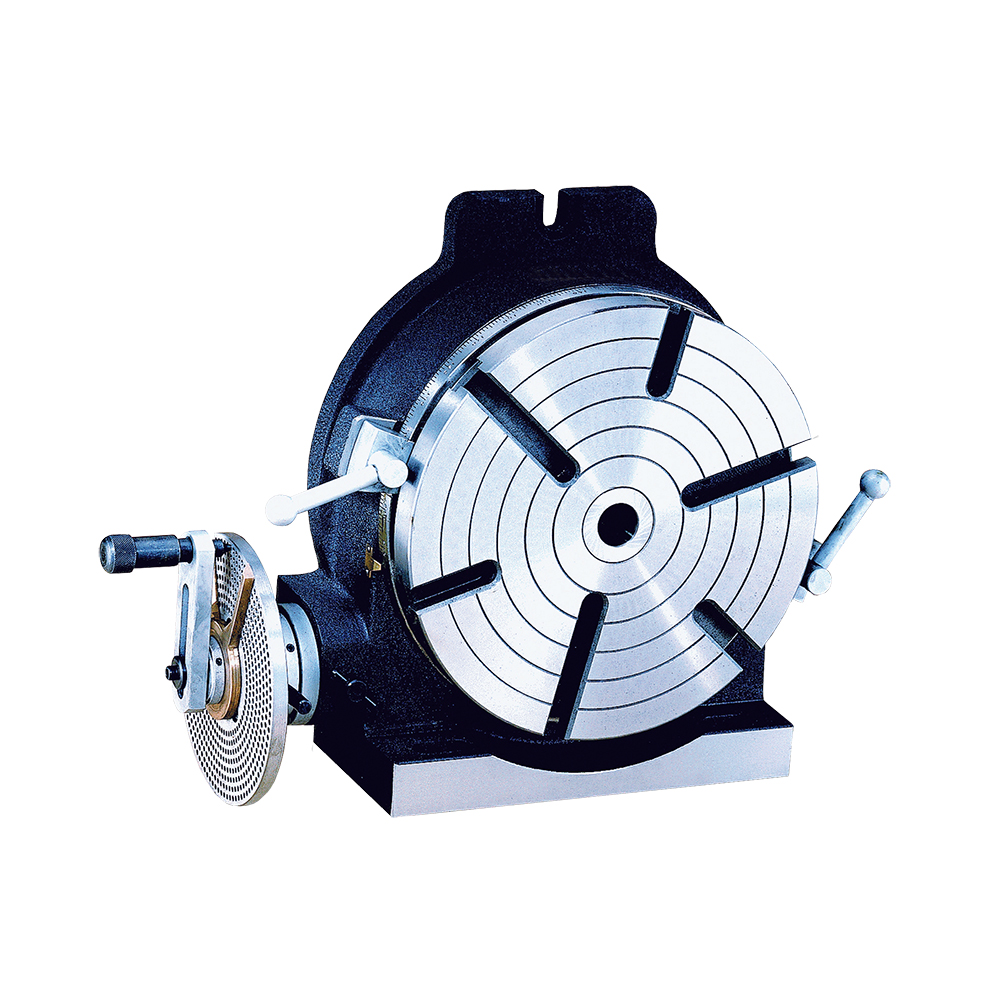

Quality Rotary Table for work holding.
Features
The work table is graduated 360º around its circumference and is driven by a precision Worm and Gear providing a 90:1 reduction ratio.
One turn of the handle moves the table through 4º. The dial is graduated in divisions of 1 min. and the vernier scale allows readings down to 10 seconds.
The worm is hardened and precision ground. Both the upper and lower surfaces are precision ground.
Table | D - 350mm H - 140mm |
Base Dimension | A - 460mm B - 380mm |
Bolt slots | K - 18mm |
Centre Sleeve | MT4 |
Worm Gear Ratio | 90 : 1 |
Weight | 98kg |
