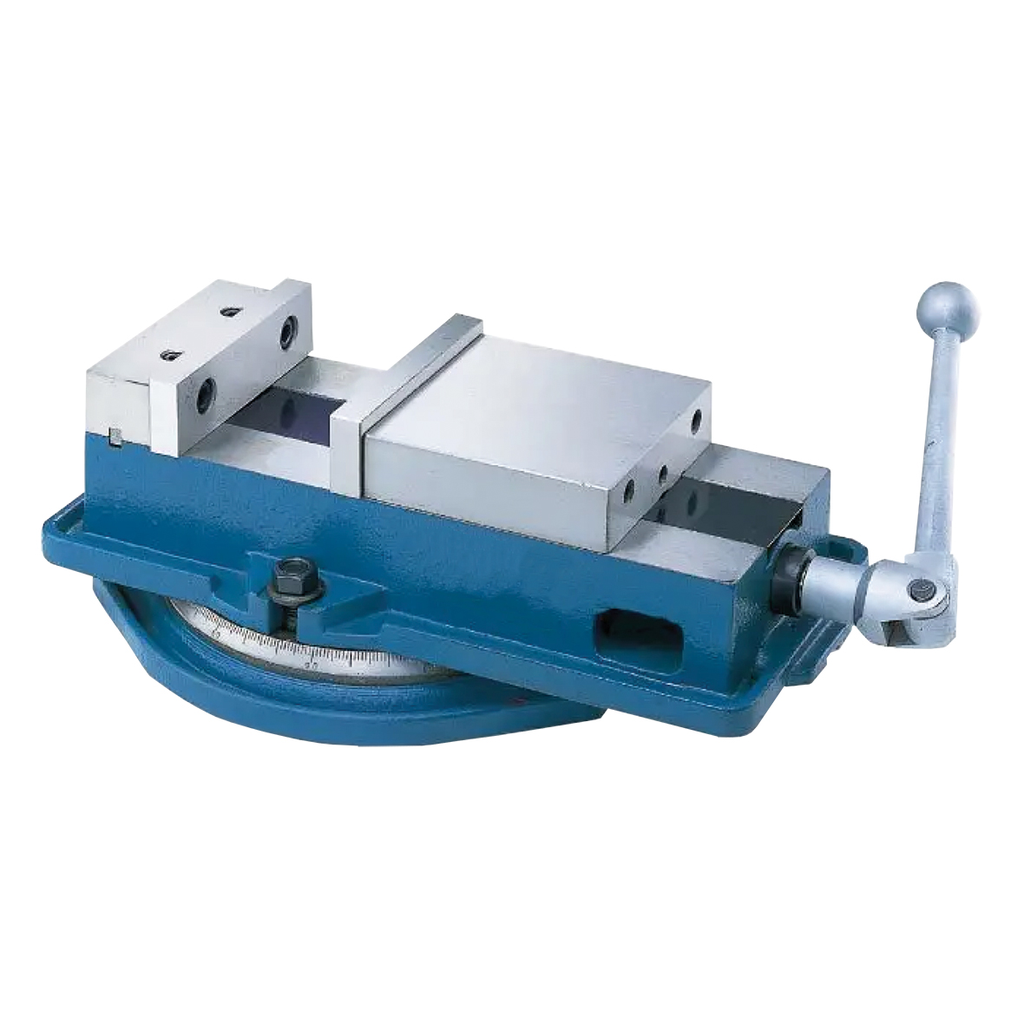

ACCULOCK Vice, 8"

Work Holding

Please contact our team for a custom quote and competitive pricing

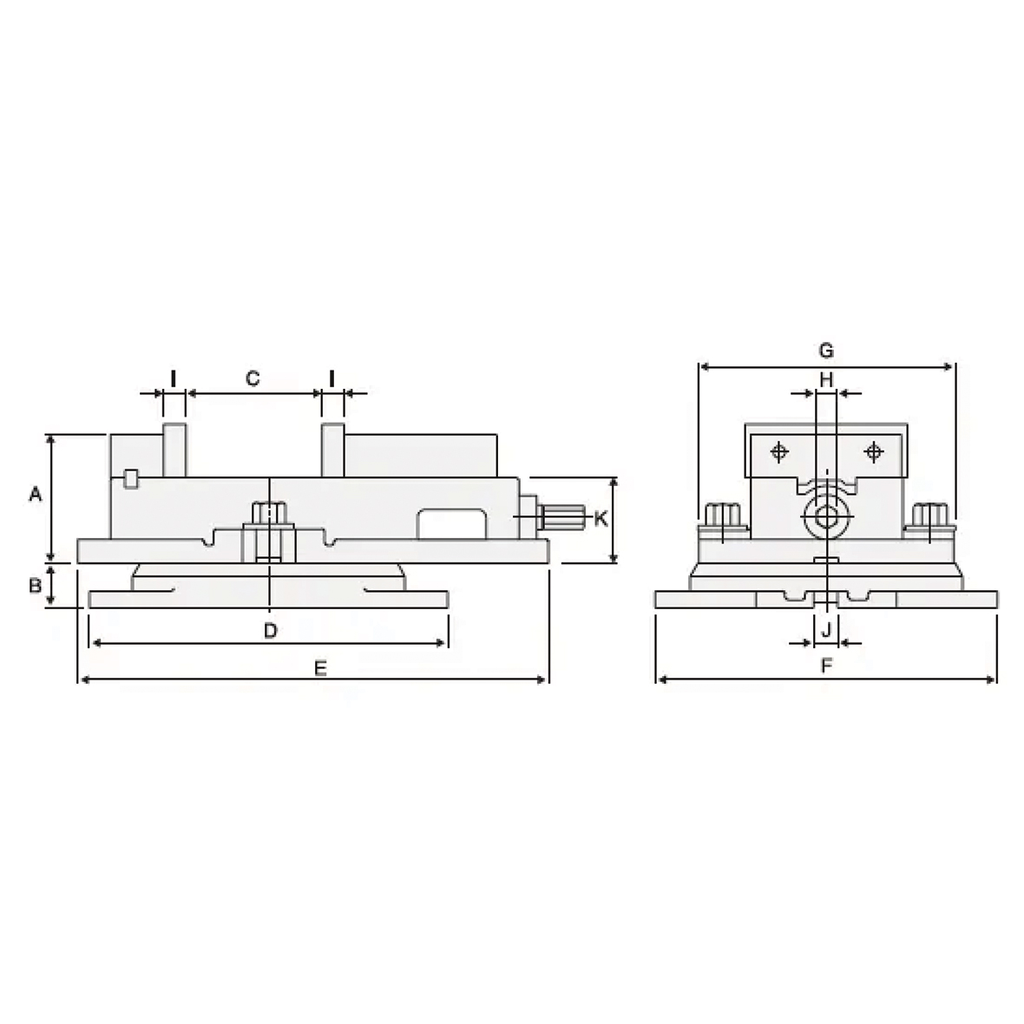

Model
8"
A
136mm
B
55mm
C
198mm
D
422mm
E
555mm
F
380mm
G
305mm
H
19mm
I
24mm
J
18mm
K
84mm
Weight
80kg
  • Two set screws in the Fixed-Jaw ensure that it does not tilt backwards when a very high clamping force is applied.
  • Iron leadscrew Cover protects leadscrew from swarf.
  • Both sides of Slideways are heat treated.
  • Angle Lock Mechanism creates downward pressure on Jaw ensuring both jaws are parallel during clamping
  • Needle Bearing Thrust Collar cuts friction and increases clamping pressures 80%
