Dividing plates for our Rotary tables.
Features

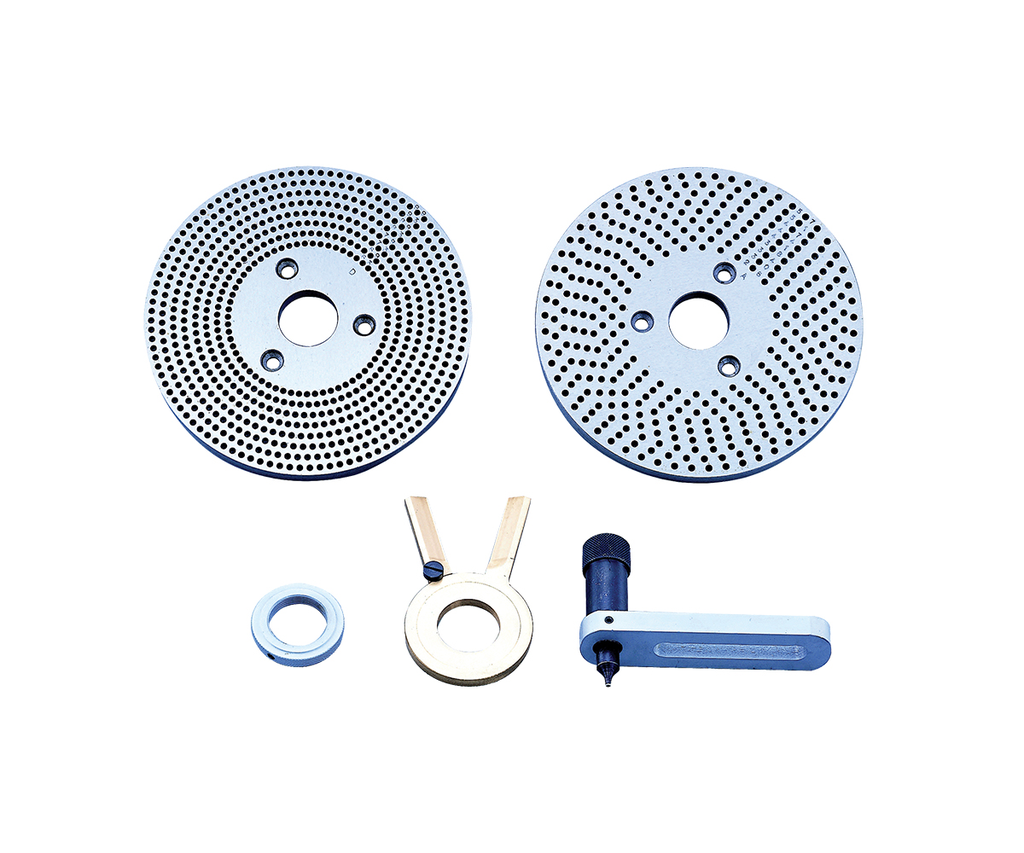

The DIVIDING PLATE SET consists of 2 Indexing Plates, a Sector and a Handle with Plunger.
Using this DIVIDING PLATE SET the indexing of 2 to 100 divisions can be attained quickly and accurately.
NUMBER OF HOLES:
DP-1 A Plate… 15,16,17,18,19,20
B Plate… 21,23,27,29,31,33
C Plate… 37,39,41,43,47,49
DP-2,3 A Plate… 26,28,30,32,34,37,38,39,41,43,44,46,47,49,51,53,57,59
B Plate… 61,63,67,69,71,73,77,79,81,83,87,89,91,93,97,99
Suitable for | HHV-300 - HHV-400 |
Dividing Plate set screw | PCD. (3 holes) 46 ø1.81 |
Inner Diameter of Sector Arm | 28.7mm |
Outer Diameter of Spring clip | 44mm |
Grove width in handle plate | 10mm |
Weight | 4kg |
