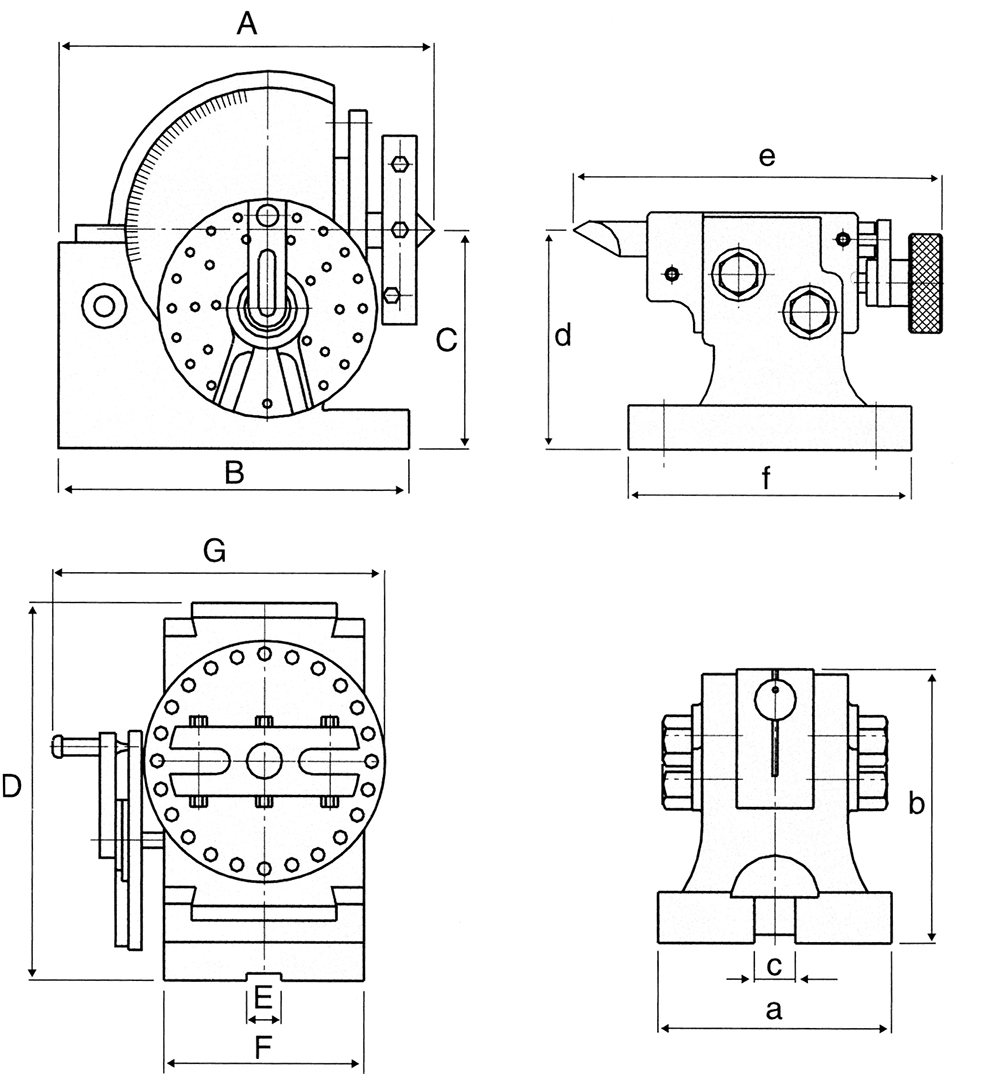

Our Semi-Universal Dividing Head is ideal for direct and indirect dividing.
A | 189mm |
B | 160mm |
C | 100mm |
D | 173mm |
E | 16mm |
F | 91mm |
G | 140mm |
Weight | 22kg |
Tailstock for dividing head | BS0 |
A | 90mm |
B | 105mm |
C | 16mm |
D | 100mm |
E | 166mm |
F | 127mm |
Centre Taper | B&S No.7 |
Diameter of Spindle hole | 18mm |
| Numbers of hole | Plate A | 15 | 16 | 17 | 18 | 19 | 20 |
| Plate B | 21 | 23 | 27 | 29 | 31 | 33 |
| Plate C | 37 | 39 | 41 | 43 | 47 | 49 |
FEATURES:
Semi-Universal Dividing Head is a simplified type of Universal Index Centre and can be used for direct and indirect dividing. No accessories for the differential dividing and spiral work are included, but the whole construction of the dividing head and tailstock are identical with those of the universal type.
The unit has a Direct Indexing Plate with 24 holes enabling the direct division of 2, 3, 4, 6, 8, 12 and 24. Three further Indexing Plates are provided as standard to facilitate indirect dividing from 2 to 50 and also most useful divisions up to 380.
