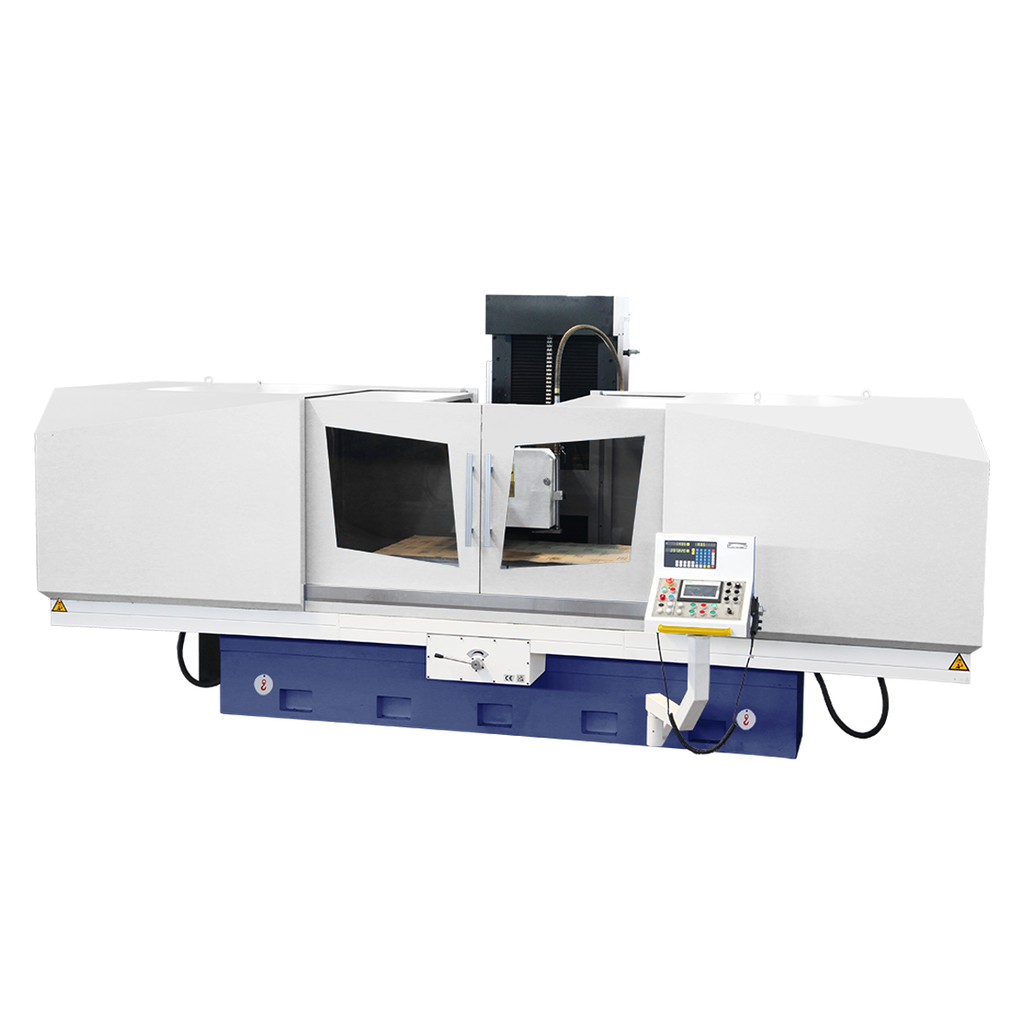

Precision surface grinders with 2 Axis DRO, up to 1150pm spindle speed, and MPG.
• Z axis 0.001mm minimum feed rate (Dial 0.001mm division)
• Auto cross minimum feed rate 0.001mm
• 40mm Dia Y Axis Ballscrew
• Proximity Sensor For Longitudinal Movement
• Automatic Machine Stop When Grinding Completed
• Rapid Up/Down Button
• Oil Tank
| Model | ZB3288W |
| Working Surface of Table |
|
| Max. Table Travel | 2300mm |
| Max. Cross Travel | 875mm |
| Distance Between Table Surface and Spindle Center | 920mm |
| Max. Table Load | 2000kg |
| T-Slot (Number × Width) | 3 x 18mm |
| Table Speed | 5~25m/min |
| Crossfeed Handwheel |
|
| 1 Grad | 0.001mm |
| 1 Rev | 0.1-1mm |
| Automatic Crossfeed Rate | 1-50mm |
| Crossfeed Speed | 50-2000mm/min |
| Grinding Wheel Dimensions | 500 × 75 × 305mm |
| Spindle Speed |
|
| 50Hz | 960rpm |
| 60Hz | 1150rpm |
| Vertical Handwheel |
|
| 1 Grad | 0.001mm |
| 1 Rev | 0.1-1mm |
| Automatic Down Feed Rate | 0.001~0.01mm |
| Power Head Increment (MPG) | 5-2000mm |
| Spindle/Quill Assembly Dia | 180mm |
| Spindle Motor | 18.5kW |
| Coolant System | 125w |
| Hydraulic Motor | 7.5kW |
| Transverse Servo Motor | 3kW |
| Vertical Servo Motor | 3kW |
| Floor Space | 6400 × 4450mm |
| Machine Dimensions | 6400 x 4450 x 2491mm |
| Net Weight | 12000kg |
Standard Accessories
• PLC Model SIMATIC S7-200 SMART CPU ST30
• Siemens Touch Screen
• MPG
• 2 Axis DRO 1 Micron
• Fine Pole Electromagnetic Chuck
• Hydraulic Parallel overhead wheel dresser
• Magnetic Separator
• LED Light
• Grinding Wheel Cover
• Magnetiser/Demagnetiser
• Fully Enclosed Guard
• Oil Tank with Guard
• 3 Color Alarm Light for grinding end
• Levelling Wedge
• Balancing Stand and Arbor
• Tool Box
• Operation Manual
Optional Accessories
• Paper Filter
• Paper Filter System with Magnetic Separator
• Radius Dresser
• Sine vice
• Precision toolmaker vice
