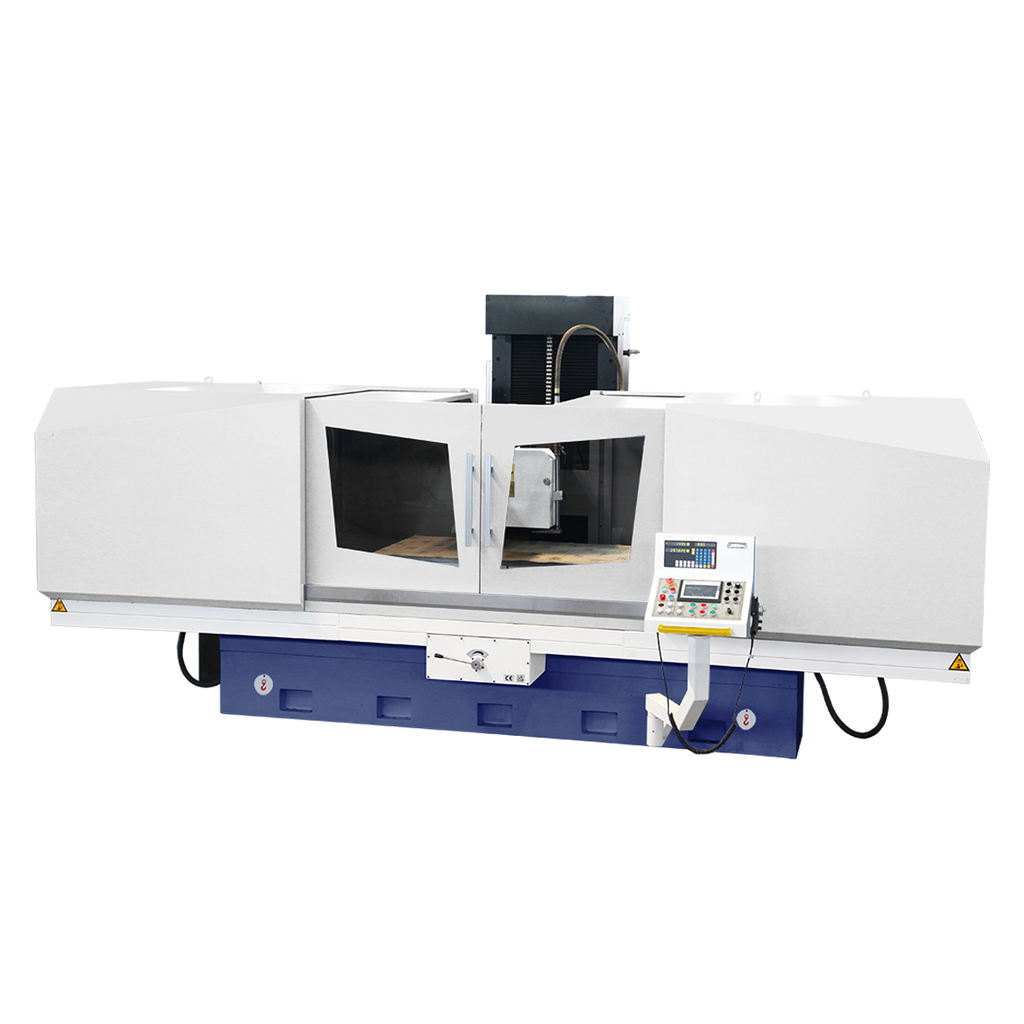

Precision surface grinding machines with touch screen interface, 2 Axis DRO, and magnetic separator.
• Z axis 0.001mm minimum feed rate (Dial 0.001mm division)
• Auto cross minimum feed rate 0.001mm
• 40mm Dia Y Axis Ballscrew
• Proximity Sensor For Longitudinal Movement
• Automatic Machine Stop When Grinding Completed
• Rapid Up/Down Button
• Oil Tank
| Model | ZB2064W |
| Working Surface of Table | 500×1600mm |
| Max. Table Travel | 1700mm |
| Max. Cross Travel | 540mm |
| Distance Between Table Surface and Spindle Center | 600mm |
| Max. Table Load | 900kg |
| T-Slot (Number × Width) | 3 x 18mm |
| Table Speed | 5~25m/min |
| Crossfeed Handwheel |
|
| 1 Grad | 0.001mm |
| 1 Rev | 0.1-1mm |
| Automatic Crossfeed Rate | 1-30mm |
| Crossfeed Speed | 0-1500mm/min |
| Grinding Wheel Dimensions | 350 × 40 × 127mm |
| Spindle Speed |
|
| 50Hz | 1450rpm |
| 60Hz | 1750rpm |
| Vertical Handwheel |
|
| 1 Grad | 0.001mm |
| 1 Rev | 0.1-1mm |
| Automatic Down Feed Rate | 0.001~0.01mm |
| Power Head Increment | 0-600mm |
| Spindle/Quill Assembly Dia | 120mm |
| Spindle Motor | 7.5kW |
| Coolant System | 125w |
| Hydraulic Motor | 3kW |
| Transverse Servo Motor | 0.5kW |
| Vertical Servo Motor | 2kW |
| Floor Space | 7120 × 2550mm |
| Machine Dimensions | 5640 x 2250 x 2500m |
| Net Weight | 5800kg |
Standard Accessories
• PLC Model SIMATIC S7-200 SMART CPU ST30
• Siemens Touch Screen
• 2 Axis DRO 1 Micron
• Fine Pole Electromagnetic Chuck
• Parallel Overhead Wheel Dresser
• Magnetic Separator
• LED Light
• Grinding Wheel Cover
• Magnetiser/Demagnetiser
• Fully Enclosed Guard
• Oil Tank with Guard
• 3 Color Alarm Light for grinding end
• Levelling Wedge
• Balancing Stand and Arbor
• Tool Box
• Operation Manual
Optional Accessories
• Paper Filter
• Paper Filter System with Magnetic Separator
• Radius Dresser
• Sine vice
• Precision toolmaker vice
