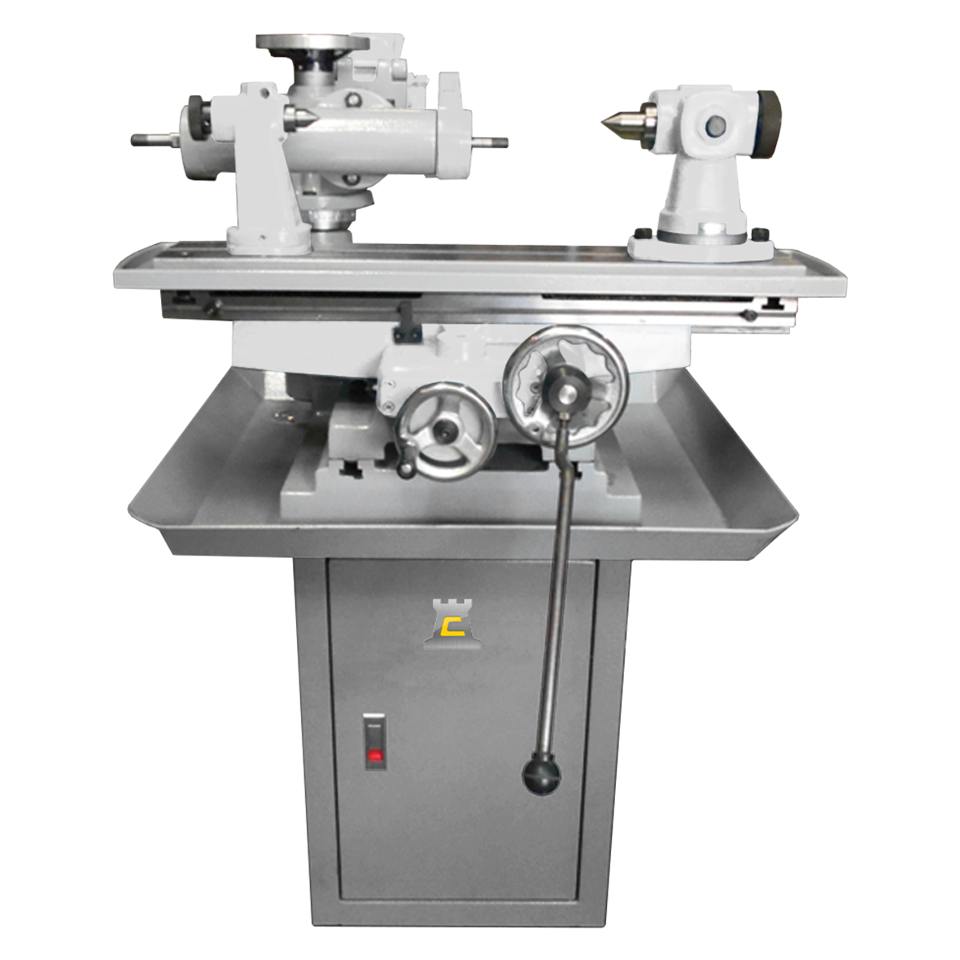

Versatile Work Head
Equipped with a swiveling and tilting work head suitable for both cylindrical and face grinding.
Comprehensive Movement Control
- Multiple movement axes:
- Longitudinal movement via handwheel
- Cross movement of the table for precise alignment
- Vertical movement of the wheel head for height adjustment
| Distance between Centres | 405mm |
| Working Table area | 475mm |
| Longitudinal Travel of Table | 457mm |
| Swing over Table | 280mm |
| Cross Travel of Saddle | 100mm |
| Vertical Adjustment of Wheel | 150mm |
| Swivel Adjustment of Column | 360° |
| Vertical Tilting Range of Wheel head | 30° |
| Saucer wheel | 150mm |
| Diameter of Wheel Flaring Cup | 150mm |
| Speed of wheel (50hz) | 2850rpm |
| Speed of wheel (60hz) | 3450rpm |
| Motor power (single phase) | 110-240v (1/2hp) |
| Motor power (three phase) | 330 – 460v (1/2hp) |
Standard Accessories
- Cup Wheel
- Tool bit Grinding attachment
- Face Mill holder
- Cutter Arbor 1″ OD
- Tooth Rest
- Centre (MT3)
- Adjusting Tools
- Coolant System
Optional Accessories
- Drill Grinding Attachment
- Radius Attachment
- Circular Saw blade grinder attachment
- End Mill Grinder w/air bearing fixture
- Universal Tooth Rest
- 5C Collets
- Diamond Cup Wheel
- Disc Wheel
