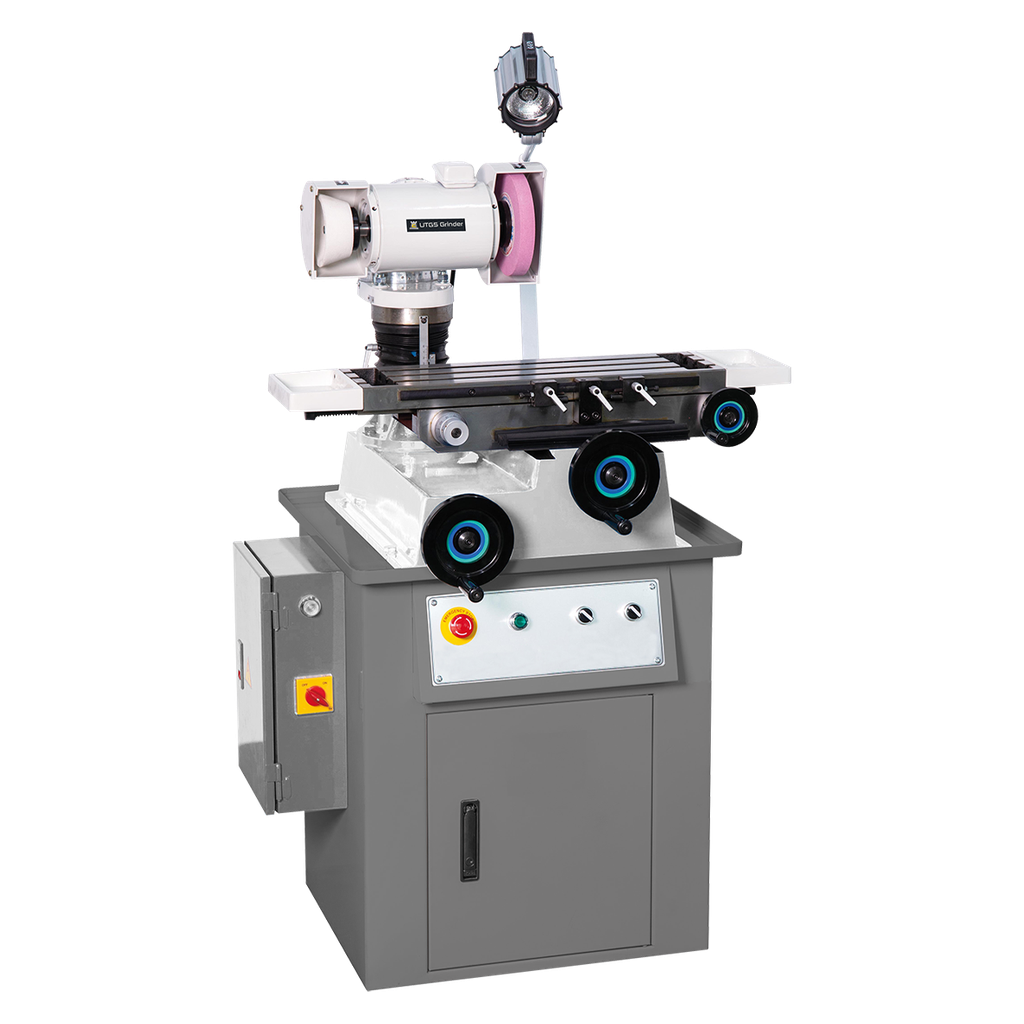

The UTG5 offers precision cutting and grinding with ease, with 360° rotation. Ideal for grinding a range of tools.
- The wheel heads can be rotated 360° and be installed on two wheels. Just rotate the wheel head, when needed to grind different material tools. Increase safety & save time for changing & repairing the grinding wheel.
- Adopt high precision cross roller guide on the table. The table is stable and can be operated smoothly.
- Adopt cast iron with high toughness. Maintain the precision of the machine in the long term.
- There is a series of grinding attachments to choose from.
The types of tools to be ground include:
Drill, tap, (taper) end mill, (corner) radius end mill, turning tool, radius turning tool, chamfer cutter, countersink cutter, engraving cutter, side milling cutter, hob, reamer, gun drill, hole saw, annular cutter, slitting cutter, punch, round bar, etc.
| Longitudinal Travel of Table | 230mm |
| Horizontal Travel of Table | 180mm |
| Vertical Adjustment of Wheel Head | 120mm |
| Rotating Angle of Wheel Head | 360° (A-axis+dual C-axis) |
| Size of Wheel | 125x50x31.75 mm;180x26x31.75 mm |
| Speed of Wheel | 50HZ 2850 rpm; 60HZ 3450 rpm |
| Horse Power | Voltage | 3/4HP; 220V / 380V / 415V |
| Net Weight / Gross Weight | 225kg |
| Dimensions | 1050 x 900 x 1540mm |
Standard Accessories
- Grinding Wheels (5a, 11a)
- Grinding Wheel Flanges
- Flange Wrench
- Tools
- Work Cabinet
Optional Accessories
- Drill Grinding Attachment
- 5c Collets
- Radius Attachment
- Dust Collector
- X & Y Linear Scale & DRO
- Speed Control Motor
