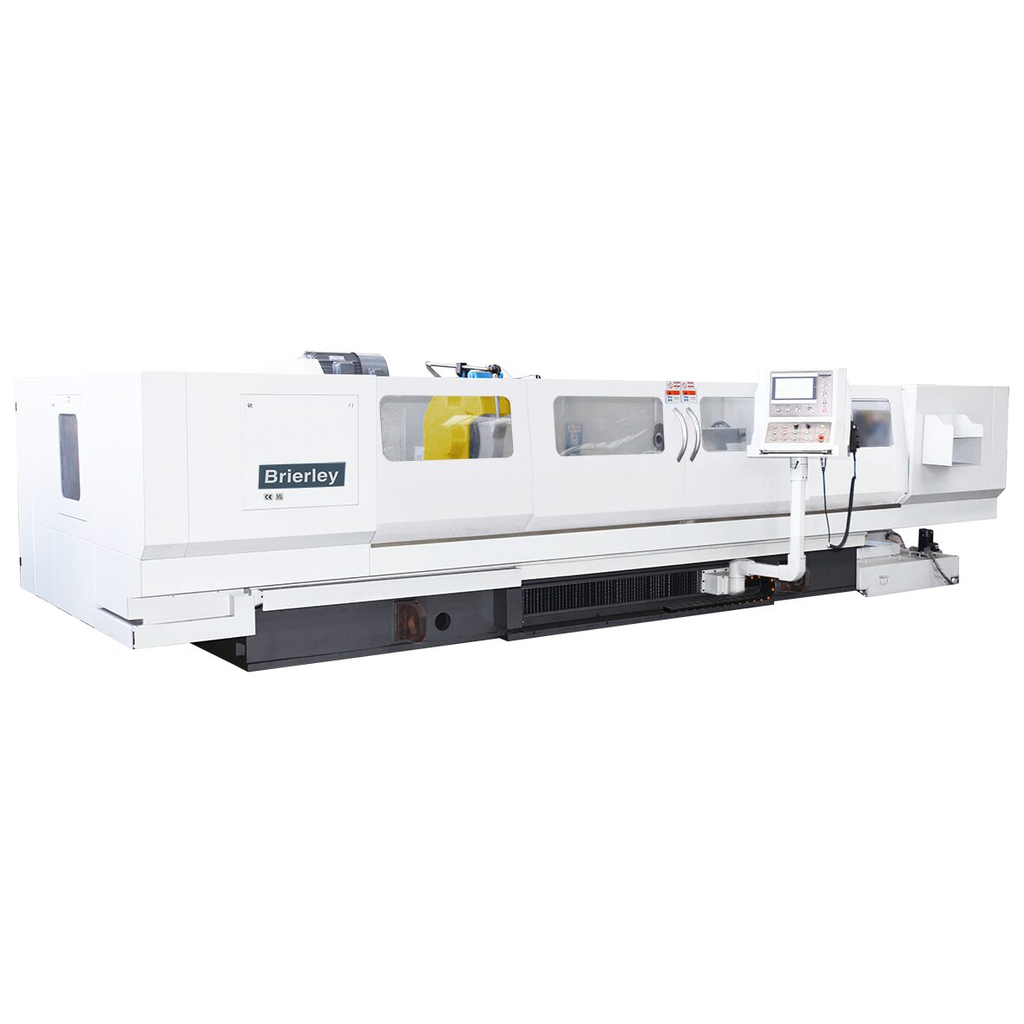

Precision machines with grinding head, cartridge-type spindle. Featuring MPG, HMI touch screen, and one-piece heady-duty casting bed.
Machine Structure
- Fixed work table with X/Z-axis servo-driven grinding head for high load stability and consistent accuracy
- Compact footprint with approximately 30% floor space saving compared to traditional table-travel machines
- One-piece heavy-duty casting bed with integrated carriage structure for maximum rigidity and vibration absorption
- Cross-feed system using precision linear guideways and AC servo motor with ball screw drive
- Tailstock quill with 70mm travel, tension spring return, and handwheel screw feed
Grinding Head
- High-precision cartridge-type spindle with angular contact bearings – rigid, accurate, and maintenance-free
- Cross feed with AC servo and ball screw for smooth and responsive positioning
Control Panel
- Equipped with MPG (manual pulse generator) for precise manual adjustments
- Ergonomic layout of controls for wheel head, table, and work head
- Safety interlocks and emergency stop functions for operator protection
HMI Touch Screen
- Color touchscreen HMI with intuitive operation and real-time status display
- Built-in multi-step grinding menus reduce programming complexity
- Support for manual, rapid, and automatic feed modes with parameter entry
| Model | UG40NC MH |
| Working area |
|
| Centre Height | 210mm |
| Travel of Worktable (Max) | 2000-6000mm |
| Grinding Length | 2000-6000mm |
| Grinding Diameter without Steady Rest | 15-400mm |
| Inside Grinding Diameter without Steady Rest | 30-100mm |
| Inside Grinding Diameter | 125mm |
| Workpiece weight between centres (Max) | 500kg |
| Feeds |
|
| Table Feed. Infinitely Variable – Longitudinal Axis | 1-6m/min |
| Traverse Per Rev. of Headwheel (mm) | 10/0.1 (MPG) |
| Traverse Per. Div. of Headwheel (mm) | 0.1/0.001 (MPG) |
| Work Feed on Traverse Axis (Grinding Unit back and forth) | Manual and Auto |
| Headstock |
|
| Work Spindle Speeds | 20-400rpm |
| Working Headstock Swivel Range | 0-90° |
| Spindle Taper | MT5 |
| Grinding Headstock |
|
| Inside Grinding Spindle Speed | 10000r/min |
| Grinding Headstock Swivel Range (l+r) | – |
| Grinding Head Travel | 310mm |
| Grinding Wheel Peripheral Speed | 45m/s |
| Grinding Wheel Speed | 1700rpm |
| Tailstock |
|
| Tailstock Taper | MT5 |
| Quill Travel | 30mm |
| Drive Capacity |
|
| Main Motor Power | 5.5kW |
| Work Head Spindle Motor | 2.2kW |
| X/Z Axis Servo Motor Power | 1.5kW |
| Motor Rating of Coolant Pump | 0.25kW |
| Accuracies |
|
| Run-Out Deviation | 0.005 |
| Cylindrical Deviation (O.D/I.D) | 0.005-0.01/0.01mm |
| Roughness (O.D/I.D) | 0.2/0.4Ra |
| Roundness (O.D/I.D) | 2.5/5um |
| Measures and Weights |
|
| Grinding Wheel Dimensions | 600 x 50 x 203mm |
| Grindstone Dimensions, Inside Grinding (Max) | 40 x 25 x 13mm |
| Grindstone Dimensions, Inside Grinding (Min) | 13 x 16 x 4mm |
| Dimensions | 3500~9000×2200×2000mm |
| Weight | 5200-11000kg |
Standard Accessories
• Touchscreen with PLC
• Grinding Wheel
• 3 Jaw Chuck
• LED Work Lamp
• Coolant System
• X, Z Axis MPG
• Balance Stand and Arbor
• Wheel Flange, Grind Wheel, and Extractor
• Drive Dog
• Centres
• Levelling Wedge
• Face Dresser
• Internal Grinding Attachment
• Inverter Workhead
• Pneumonic Tailstock
• Schneider Electric
• Front Guard with Interlock
• Operating Tools and Toolbox
Optional Accessories
• Radius Dresser
• Magnetic Separator
• Magnetic Separator and Paper Filter
• Extra Grind Wheel Flange
• Gap Centre
• Servo Tailstock
• Fully Enclosed Guard
