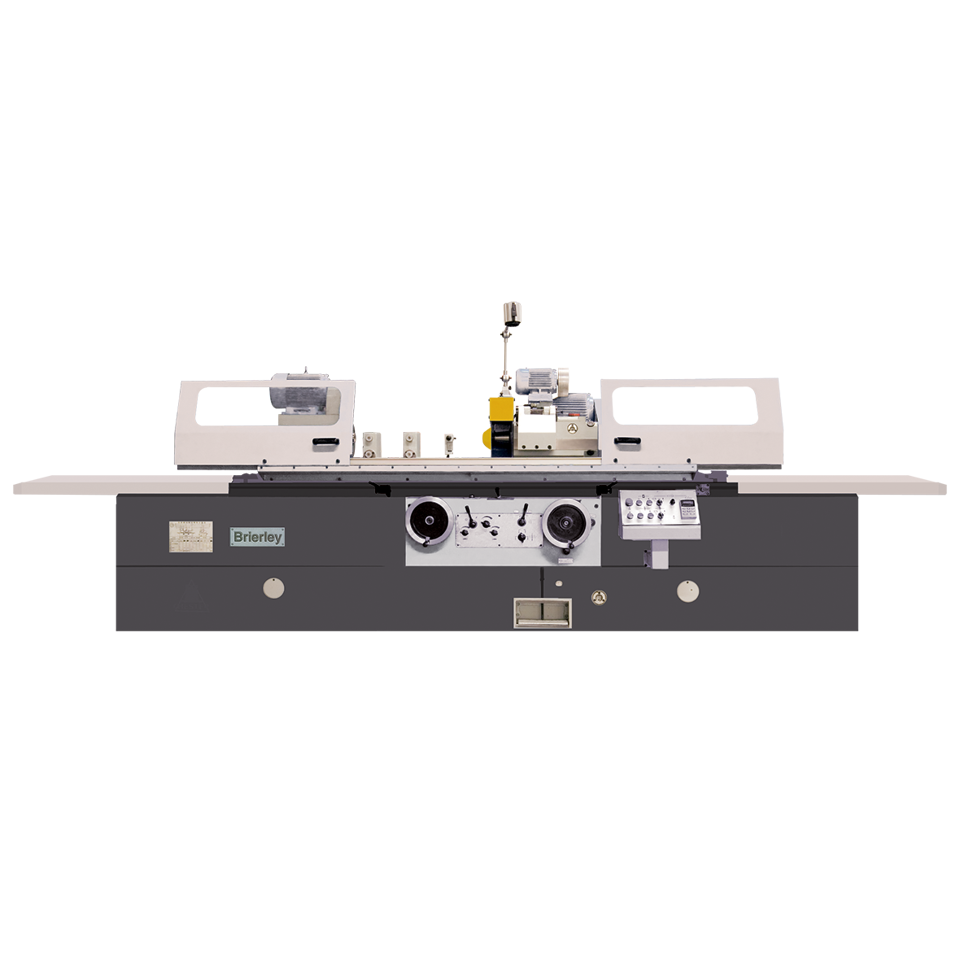

Our UG32 cylindrical grinder features a Hydraulic tailstock, Balancing stand and arbor, & Coolant system.
Model | UG32x1500 |
Centre Height | 180mm |
Travel of Worktable (Max) | 1600mm |
Grinding Length | 1500mm |
Grinding Diameter without Steady Rest | 8-320mm |
Grinding Diameter with Steady Rest | 8-60mm |
Inside Grinding Diameter without Steady Rest | 35-100mm |
Inside Grinding Diameter with Steady Rest | 30-100mm |
Inside Grinding Depth | 125mm |
Workpiece Weight Between Centres (Max) | 150kg |
Table Swivel Range (Max) | 3/6° R |
Feeds |
|
Table Feed, Infinitely Variable - Longitudinal Axis | 0,1-4m/min |
Traverse Per Rev of Handwheel | 2 (coarse)/0.5(fine)mm |
Traverse Per Div of Handwheel | 0.01 (coarse)/0.0025 (fine)mm |
Work Feed on Traverse Axis (Grinding Unit back and forth) | auto |
Headstock |
|
Work Spindle Speeds | 25-220 1/min |
Working Headstock Swivel Range | 0-45° |
Spindle Taper | MT4 |
Grinding Headstock |
|
Inside Grinding Spindle Speed | 10000 1/min |
Grinding Headstock Swivel Range (R+L) | 30±° |
Grinding Head Travel | 250mm |
Grinding Wheel Peripheral Speed | 35m/s |
Grinding Wheel Speed | 1670 1/min |
Tailstock |
|
Tailstock Taper | MT4 |
Quill Travel | 25mm |
Drive Capacity |
|
Motor Rating main drive | 5.5kW |
Motor Rating of Internal grinding unit | 1.1kW |
Motor Rating of Hydraulic pump | 0.75kW |
Motor Rating of Working spindle | 1.5kW |
Motor Rating of Coolant pump | 0.125kW |
Accuracies |
|
Run-Out Deviation | 0.003mm |
Cylindrical Deviation (O.D/I.D) | 0.008/0.01mm |
Roughness (O.D/I.D) | 0.32/0.63 µm Ra |
Roundness (O.D/I.D) | 2.5/2.5 µm |
Measures & Weights |
|
Grinding Wheel Dimensions | 400 x 50 x 203mm |
Grindstone Dimensions. Inside Grinding Max. | 50 x 40 x 16mm |
Grindstone Dimensions. Inside Grinding Min. | 45 x 35 x 10mm |
Overall Dimensions (L x W x H) | 4610 x 1810 x 1550mm |
Weight | 4300kg |
Standard Accessories
• 3 Jaw Chuck
• Periperal Wheel Dresser
• Coolant System
• LED Light
• Grinding Wheel
• Open Type/Closed Steady Rest
• Balancing Stand and Arbor
• Extractor
• Drive Dog
• Centre
• Levelling Wedge
• Inverter Workhead
• Internal Grinding Attachment
• Wheel Dismount Tool
• Hydraulic Tailstock
• Front Guard With Interlock
Optional Accessories
• Magnetic Filter System
• 50L Paper Filter with Magnetic Separator and Coolant
• 100L Paper Filter with Magnetic Separator and Coolant
• 2 Axis DRO
• Radial Dresser
• End Dresser
• Half Center
