Brierley TG10 Double Ended Grinder, 380V
Grinding Machines
Education
High precision double ended grinder with powerful motor and dust extraction facility.
Features:
- High Quality Castings
- Sealed Bearings
- Balanced Motor
- Dust Extraction Facility
- NVR Switch Gear
- Rigid Tool Rests
| Model | TG10/380 |
| Suitable stand | Stand L |
| Wheel Size | 250 x 38x 2 5.4mm |
| Motor Power | 1hp/0.75kW |
| Power Supply | 380v |
| Wheel Speed | 2850rpm |
| Guard Thickness | 4mm |
| Distance Between Wheels | 470mm |
| Dimensions(Lxwxh) | 580 x 350 x 350mm |
| Net Weight | 47kg |
| Stock Code | GRI-TG10-380 |

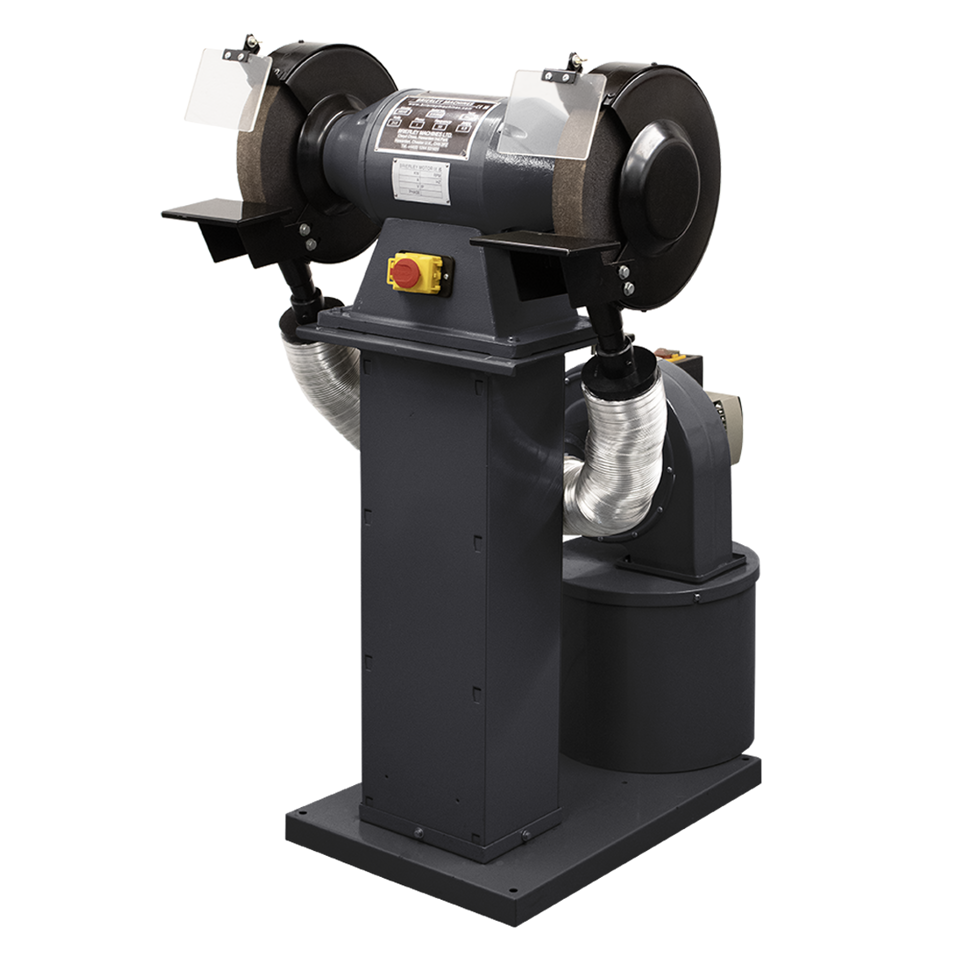

Machine pictured on optional stand.
Standard Accessories
• Eye Guards
• Grinding Wheels
• Manual and Parts List
Optional Accessories
• Gravity Dust Extractor
• Powered Dust Extractor
• Different Grade Wheels
• Stand
• Water Trough
