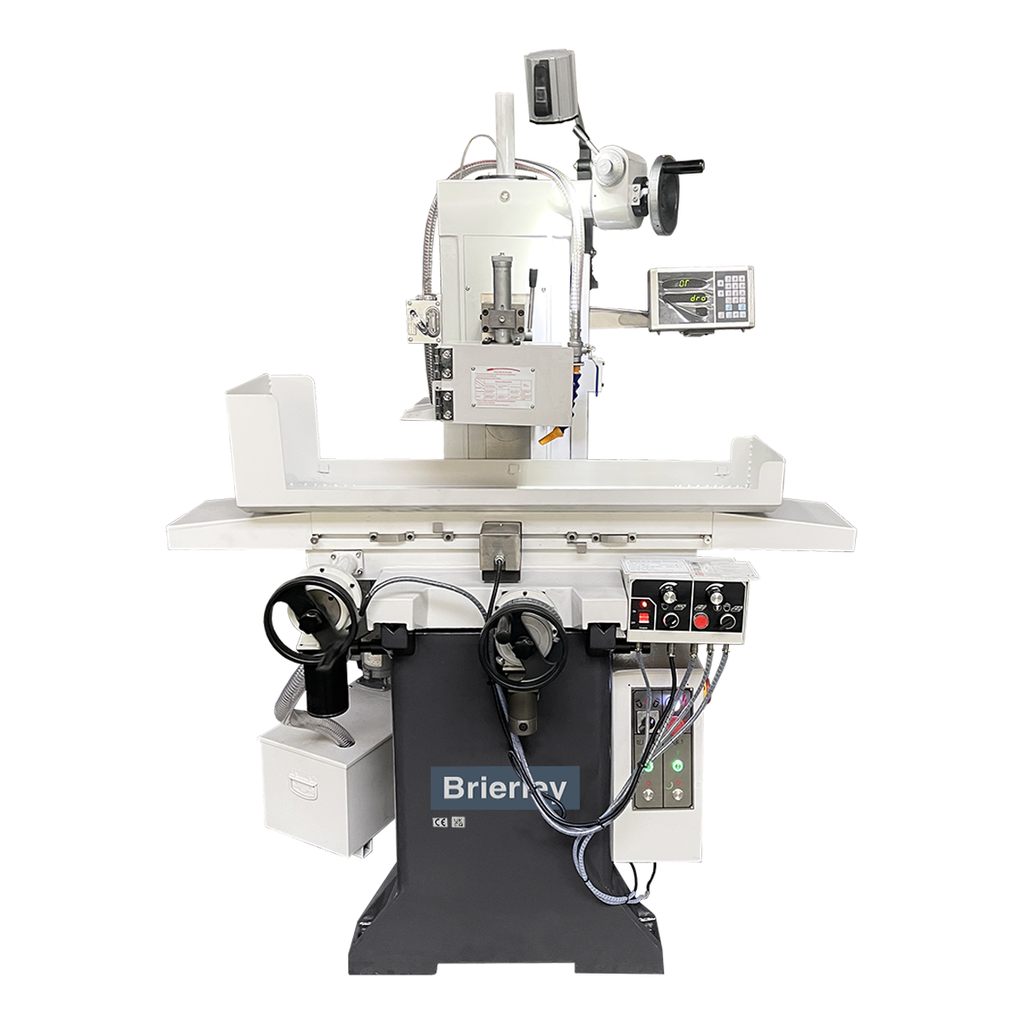

Quality surface grinder with 2 Axis DRO, fine pole electromagnetic chuck, and X Axis timing belt drive.
• X Axis Timing Belt Drive
Model | ZB618W |
Working Surface of Table | 150 x 450mm |
Max. Table Travel | 480mm |
Max. Cross Travel | 178mm |
Distance between Table Surface and Spindle Centre | 360mm |
Max. Table Load | 100kg |
T-Slot (Number x Width) | 1 x 14mm |
Table speed | 0-25m/min |
Crossfeed Handwheel |
|
1 Grad | 0.01mm |
1 Rev | 2.5mm |
Automatic Cross Feed of Saddle | 0.02-12mm |
Power Cross Feed 50Hz | 780mm |
Grinding Wheel Dimensions | 180 x 13 x 32/31.75mm |
Spindle Speed |
|
50Hz | 2850rpm |
60Hz | 3420rpm |
Vertical Handwheel |
|
1 Grad | 0.005mm |
1 Rev | 1.25mm |
Motor |
|
Spindle Motor | 1.1kW |
Dust Collector Motor | 550w |
Coolant Motor | 90w |
Cross Feed Motor | DC 40w |
Longitudinal Motor | DC 40w |
Dimensions |
|
Floor space | 1900 x 1300mm |
Dimensions (L x W x H) | 1900 x 1300 x 1930mm |
Net Weight | 620kg |
Standard Accessories
• 2 Axis DRO 1 micron
• Fine Pole Electromagnetic Chuck
• Parallel Overhead Wheel Dresser
• LED Light
• Grinding Wheel Cover
• Levelling Wedge
• Balancing Stand and Arbor
• Magnetic Separator
• X/Y Electric Power Feed
• Splash Guard
• Tool Box
• Operation Manual
Optional Accessories
• Paper Filter System with Magnetic Separator
• Dust Suction System
• Radius Dresser
• Sine vice
• Precision toolmaker vice
