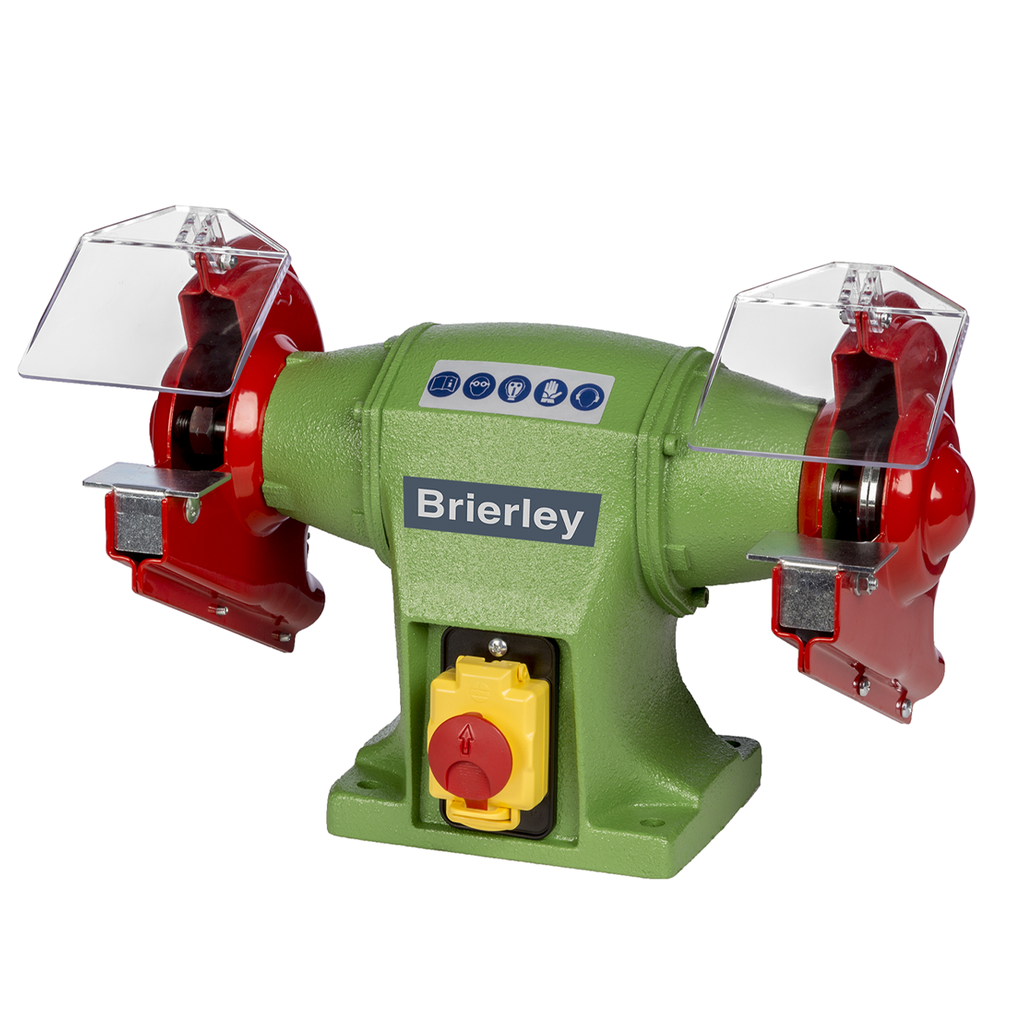

Precision machines designed for continuous and intense use in industry, the CS series absorbs and reduces the already low vibrations due to their weight.
With grinding wheel clamp flanges machined to guarantee a maximum parallelism during the coupling with abrasive wheels.
Comes with 10 year warranty.
Sheet plate of different thicknesses are used for the chain guard:
- 2.5mm for 150mm diameter
- 3mm for 200mm/250mm diameter
- 3.5mm for 300mm diameter
- 8mm* for 400mm diameter
*10mm grinding wheel side, 8mm diameter and 6mm on the external
| Model | CS-2 |
| Motor | 0.750kW (1hp) |
| Speed | 2800rpm |
| Wheel Size | 200 x 25 x 20mm |
| Weight | 25kg |
| Dimensions | 550 x 290 x 360mm |
Voltage | 400V |
Optional Accessories
• Low Tension (24v) power box
• High quality inverter speed control and progressive brake
