Our self centring 3 jaw chucks are ideal for work holding for precision metal work.
Size | 160mm |
Camlock | D1-4 |
Weight | 8kg |
Each chuck is supplied with 1 set reversible jaws and chuck key.

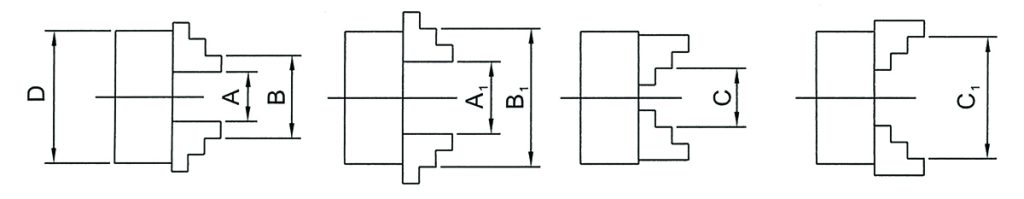

| Clamping Range |
|
|
|
| Size | Internal Jaw (A-A1) | Internal Jaw (B-B1) | External Jaw (C-C1) |
| 160mm | 3-55mm | 50-160mm | 55-145mm |

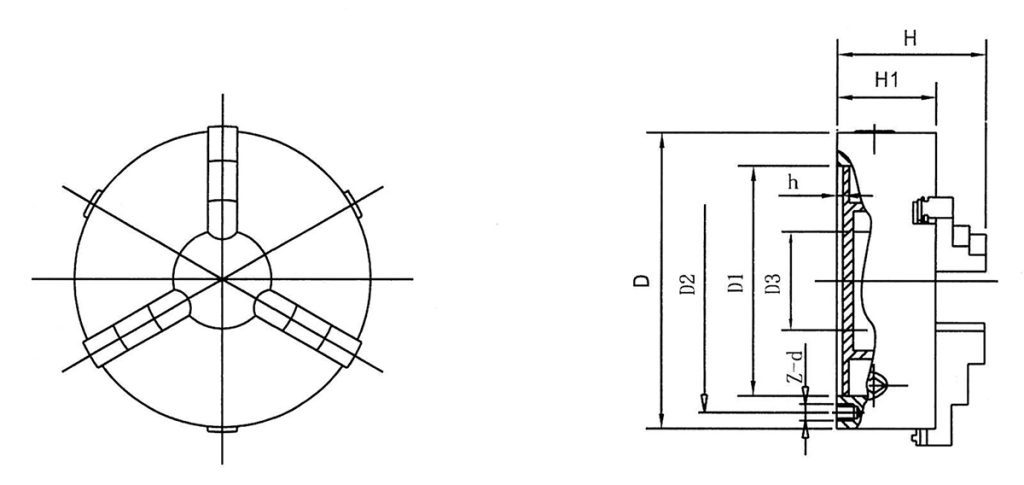

| Installation Dimensions |
|
|
|
|
|
|
|
| Size | D1 | D2 | D3 | H1 | h | Z-d | H |
| 160mm | 130mm | 142mm | 45mm | 65mm | 5mm | 3mm M8 | 94mm |
