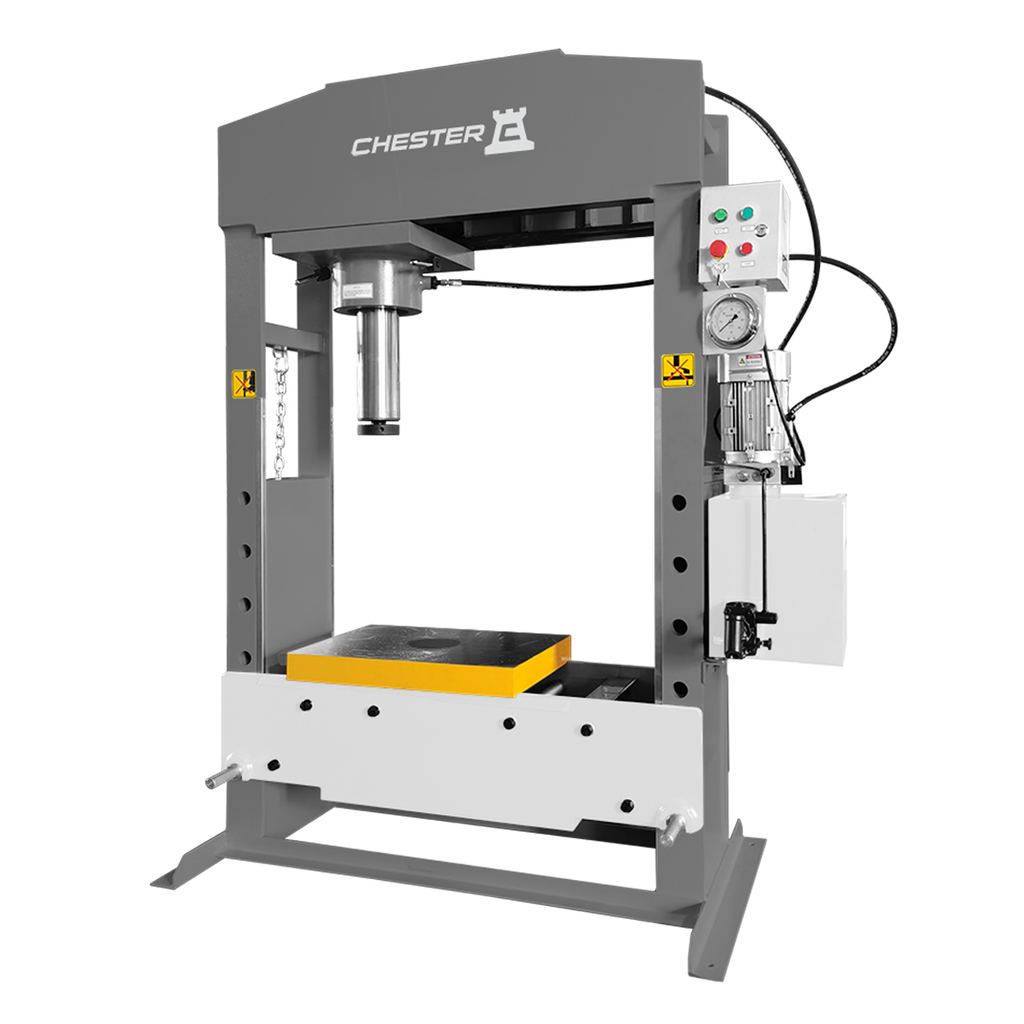

CHESTER WPMH SERIES POWERED/MANUAL HYDRAULIC PRESS, WP60MH

Name: CHESTER WPMH SERIES POWERED/MANUAL HYDRAULIC PRESS, WP60MH
SKU: FAB-WP60MH
Availability: OutOfStock

Please contact our Sales Team for pricing: [email protected]. Or Call us Today: 01543 448940

Fabrication Machines

Please contact our team for a custom quote and competitive pricing

Price

Features:

Model	WP60MH
Maximum Force	60T
Hydraulic Pressure	Dual Stage – 20/26Mpa
Cylinder Stroke	250mm
Ram Speed (Forward/Return)	2.6/3.6mm/s
Worktable (Size/Inner Hole Diameter)	600x365mm/ Φ100mm
Worktable Travel (Increments x Distance)	5 x 150mm
Motor Power	2.2kW

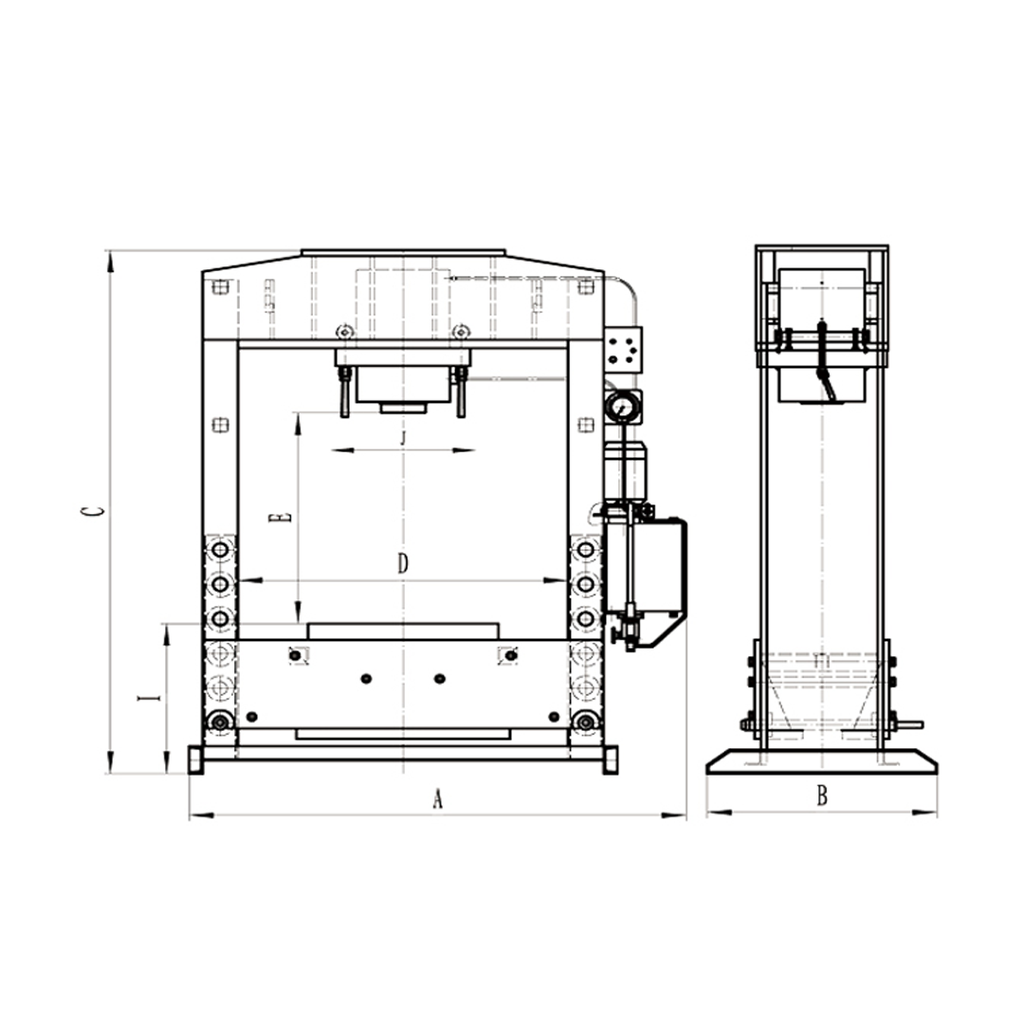

A	1376mm
B	700mm
C	1863mm
D	750mm
E	1027mm
I	386mm
J	360mm
Weight	730kg

Standard Accessories:

Documents

WPMH Series.pdf
