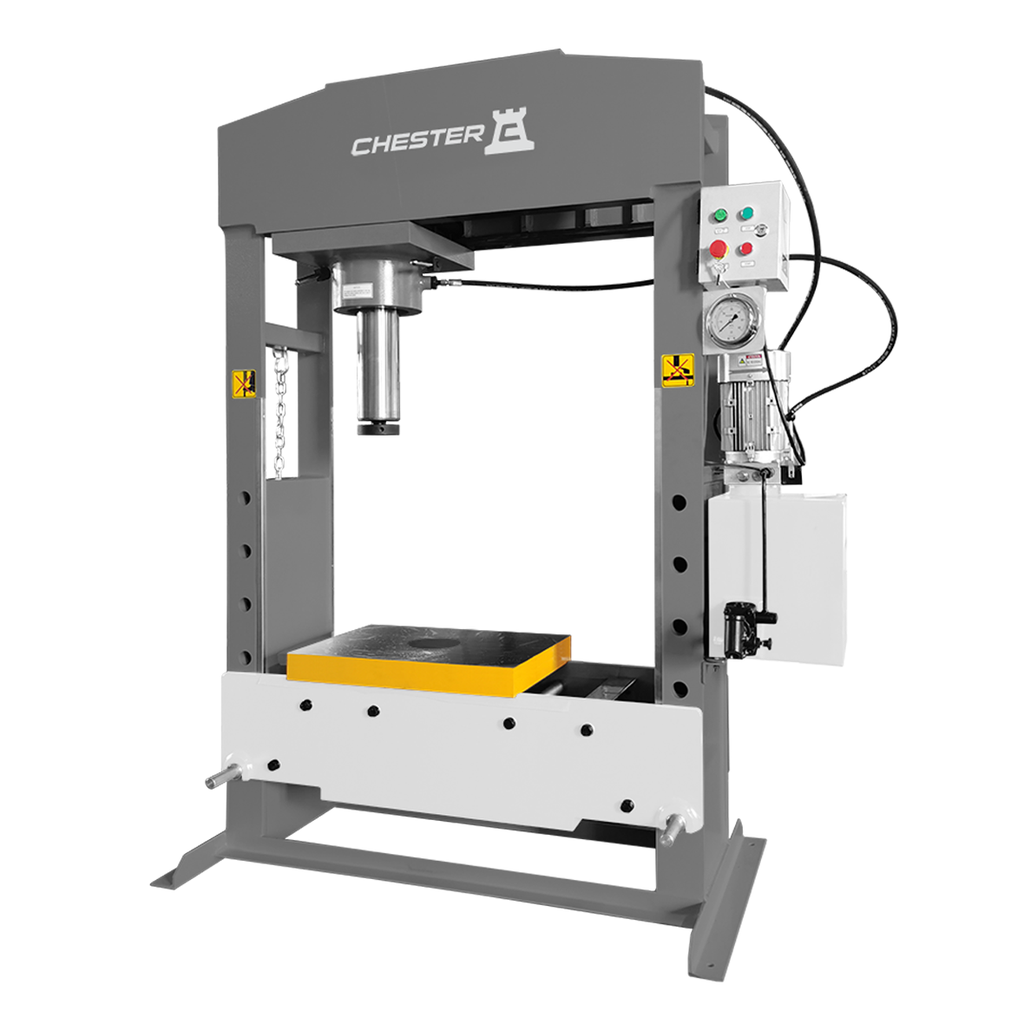

High Quality Hydraulic Presses, ideal for engineering workshops.
Features:
- Robust Steel Frame Construction
- Moveable Hydraulic Cylinder
- User Friendly Maintenance
| Model | WP35MH |
| Maximum Force | 36T |
| Hydraulic Pressure | 22Mpa |
| Cylinder Stroke | 250mm |
| Ram Speed (Forward/Return) | 4.8/6mm/s |
| Worktable (Size/Inner Hole Diameter) | 400x300mm/
Φ60mm |
| Worktable Travel (Increments x Distance) | 4 x 200mm |
| Motor Power | 1.5kW |

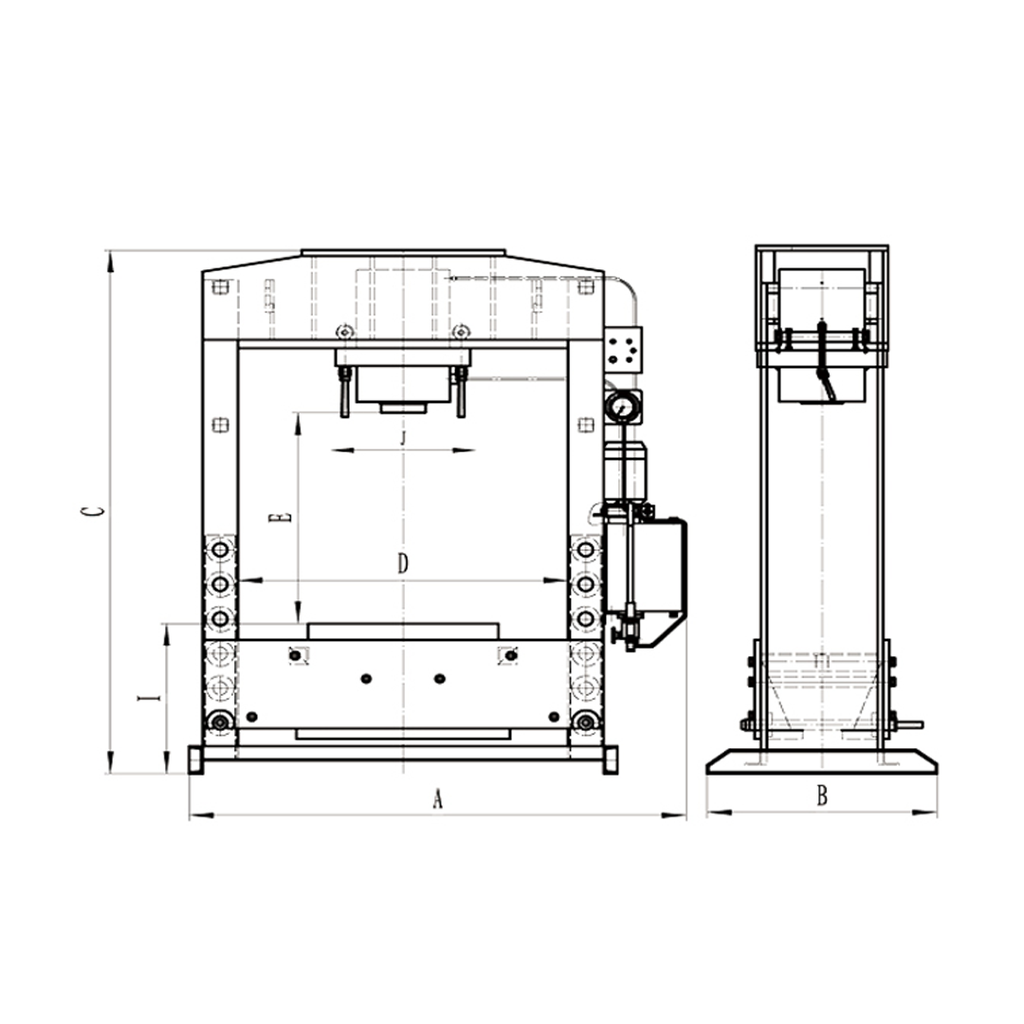

| A | 1060mm |
| B | 700mm |
| C | 2085mm |
| D | 650mm |
| E | 1030mm |
| I | 341mm |
| J | 360mm |
| Weight | 380kg |
Standard Accessories:
- Safety Fence
- V Block
- Dedicated Lifting Sling
