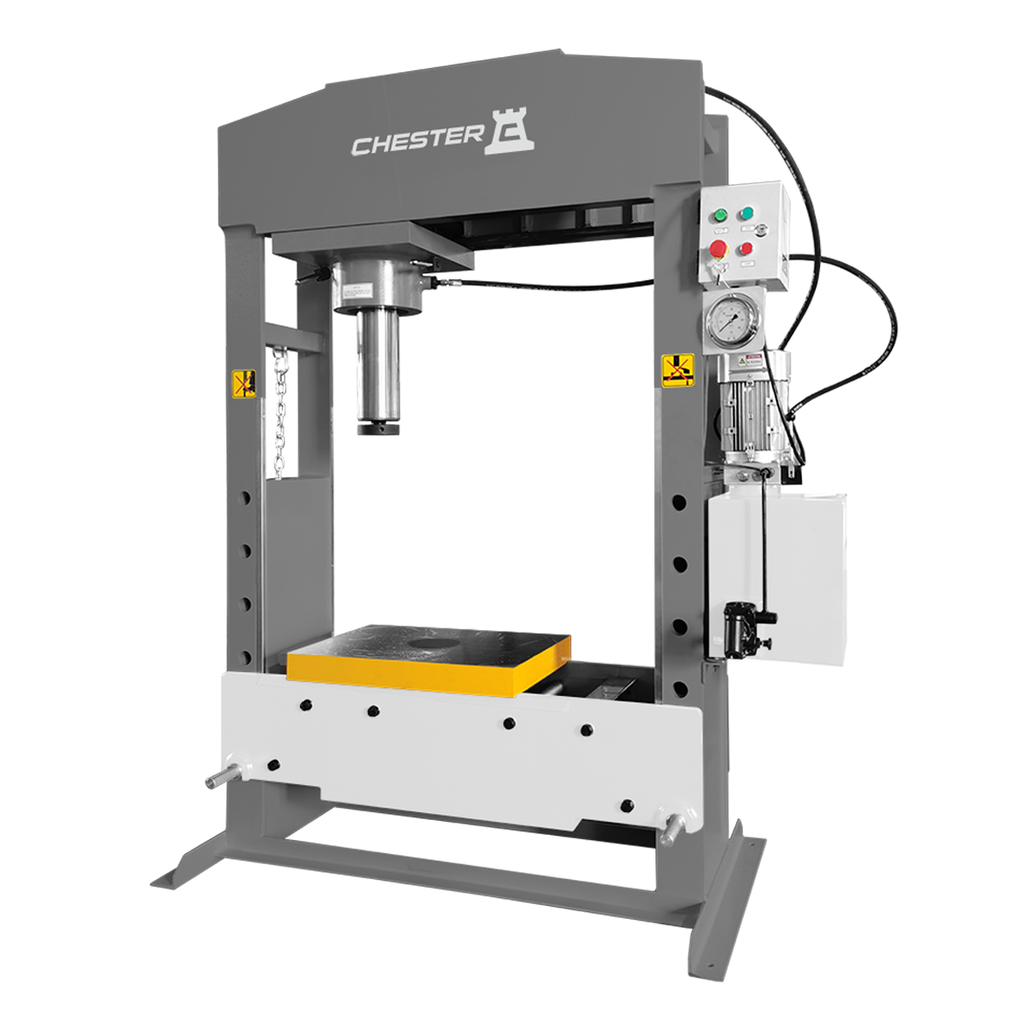

CHESTER WPMH SERIES POWERED/MANUAL HYDRAULIC PRESS, WP300MH

Please contact our Sales Team for pricing: [email protected]. Or Call us Today: 01543 448940
Fabrication Machines
Contact Us

Please contact our team for a custom quote and competitive pricing

Add to cart
Add to wishlist
Price
£ 0.00 £ 0.00

Features:

  • Robust Steel Frame Construction
  • Moveable Hydraulic Cylinder
  • User Friendly Maintenance
ModelWP300MH
Maximum Force300T
Hydraulic PressureDual Stage – 20/23.5Mpa
Cylinder Stroke300mm
Ram Speed (Forward/Return)2.4/3.5mm/s
Worktable (Size/Inner Hole Diameter)800x685mm/
Φ150mm
Worktable Travel (Increments x Distance)3 x 200mm
Motor Power5.5kw (7.4HP)

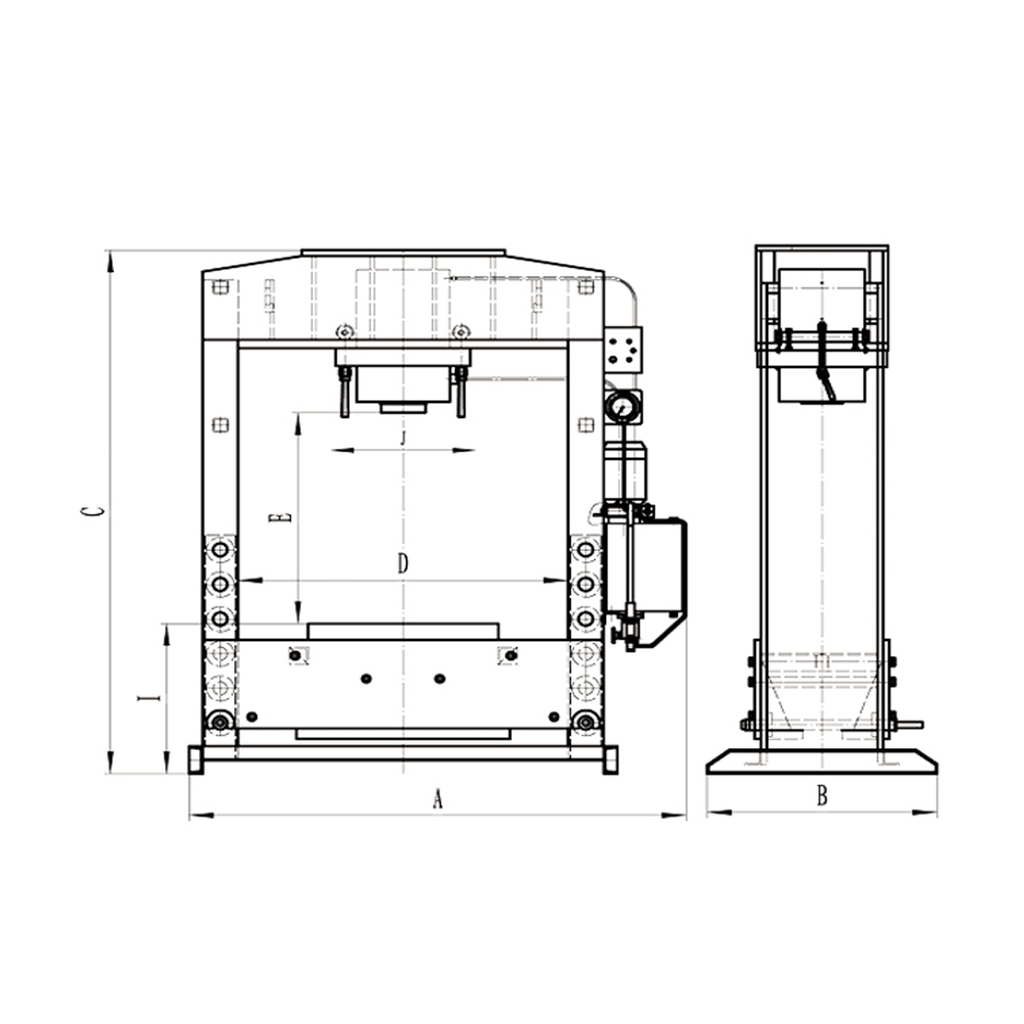

A1926mm
B1020mm
C2320mm
D1200mm
E777mm
I748mm
J600mm
Weight3300kg

Standard Accessories:

  • Safety Fence
  • V Block
  • Dedicated Lifting Sling
Documents
WPMH Series.pdf
