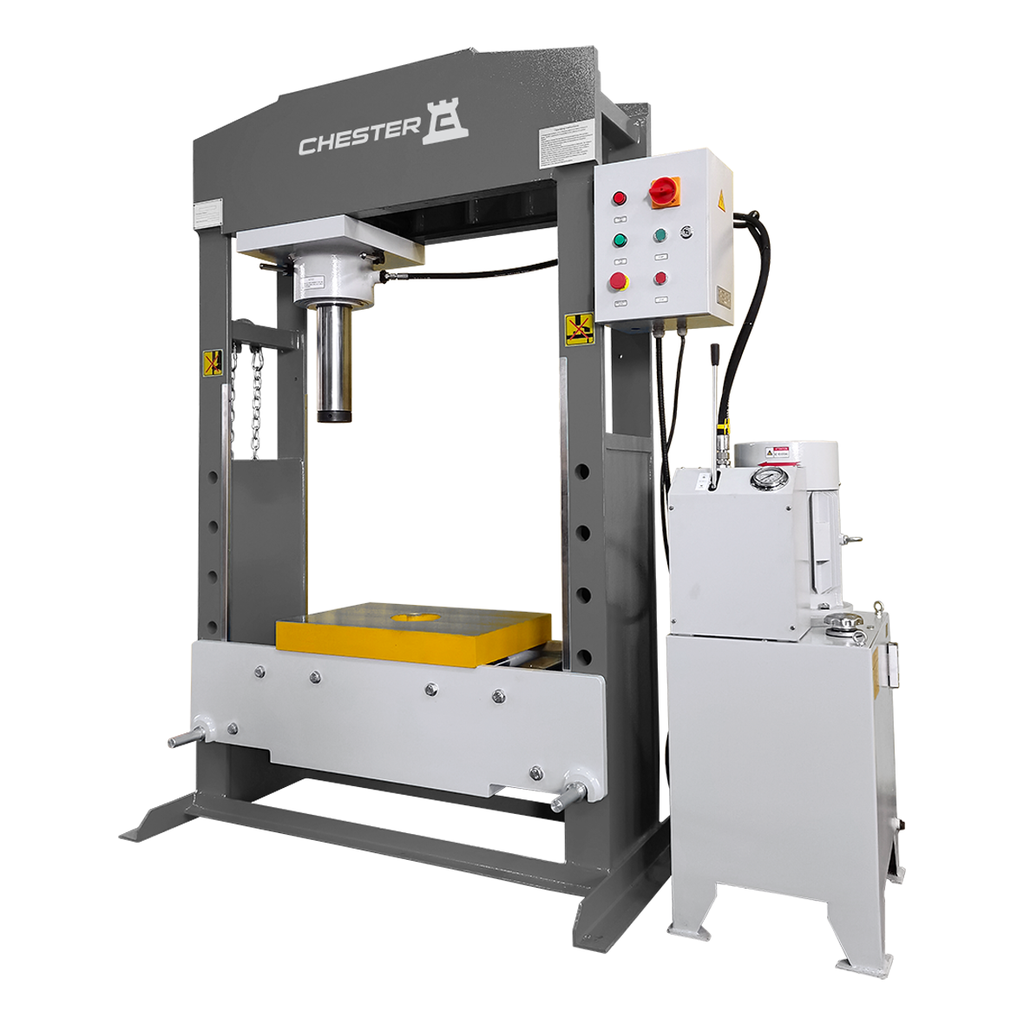

CHESTER WPH SERIES POWERED HYDRAULIC PRESS, WP300H

Please contact our Sales Team for pricing: [email protected]. Or Call us Today: 01543 448940
Fabrication Machines
Contact Us

Please contact our team for a custom quote and competitive pricing

Add to cart
Add to wishlist
Price
£ 0.00 £ 0.00

Features:

  • Robust Steel Frame Construction
  • Moveable Hydraulic Cylinder
  • User Friendly Maintenance
ModelWP300H
Maximum Force306T
Hydraulic Pressure28.5Mpa
Cylinder Stroke300mm
Ram Speed (Forward/Return)5.9/8.5mm/s
Worktable Travel (Size/Inner Hole Diameter)800x685mm/Φ150mm
Worktable Travel (Increments x Distance)2 x 300mm
Motor Power22kw (29.5HP)

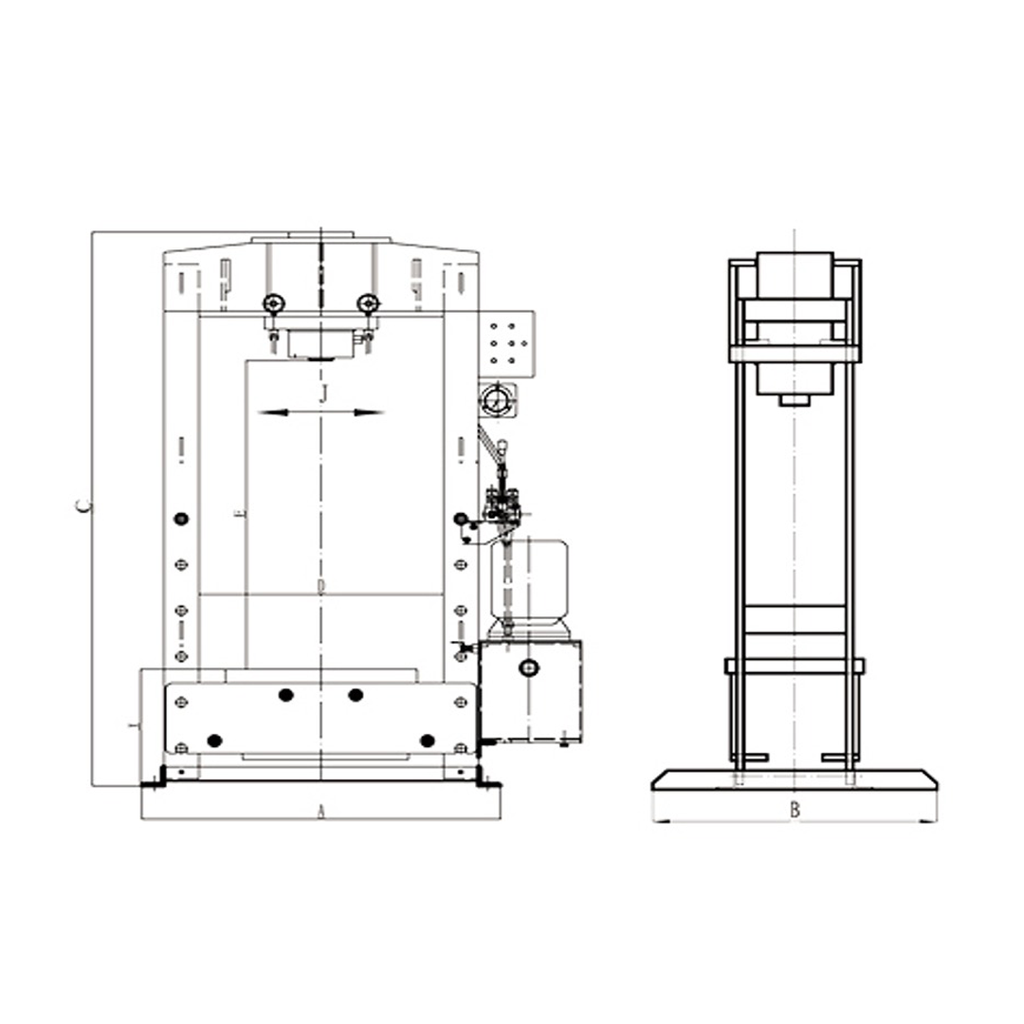

A1626mm
B1020mm
C2345mm
D1300mm
E764mm
I748mm
J610mm
Weight3950kg

Standard Accessories:

  • Safety Fence
  • V Block
  • Dedicated Lifting Sling
Documents
WPH Series.pdf
