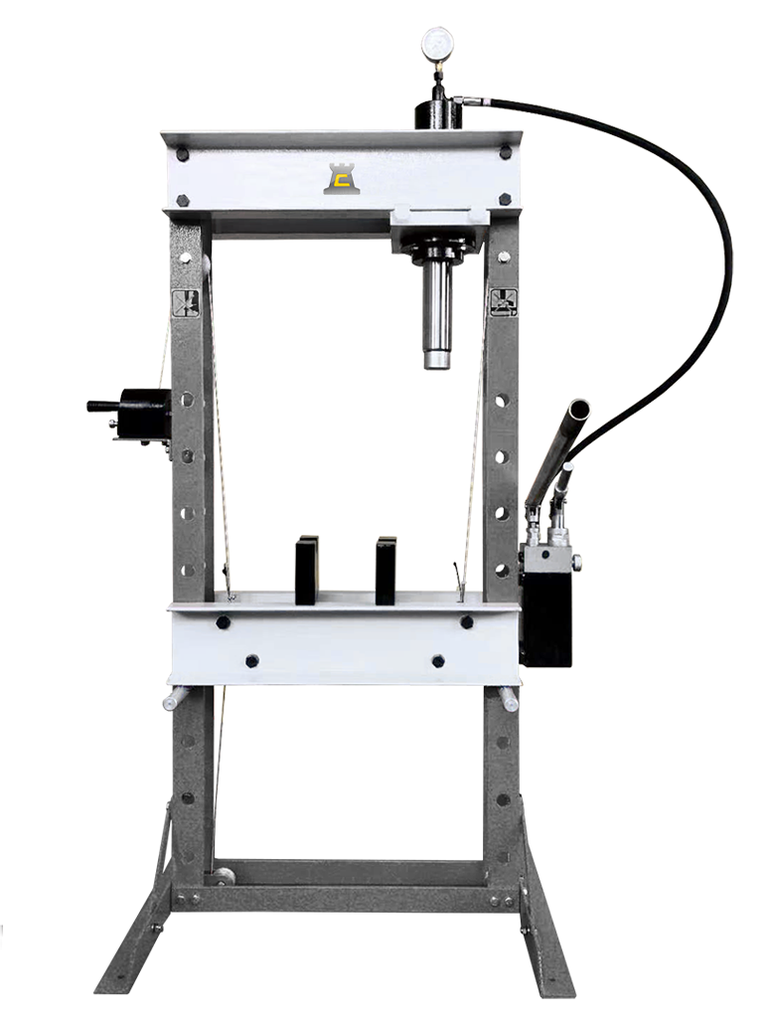

CHESTER WPM SERIES MANUAL WORKSHOP PRESS, WP20M

Name: CHESTER WPM SERIES MANUAL WORKSHOP PRESS, WP20M
SKU: FAB-WP20M
Availability: OutOfStock

Please contact our Sales Team for pricing: [email protected]. Or Call us Today: 01543 448940

Fabrication Machines

Please contact our team for a custom quote and competitive pricing

Price

Features:

Model	WP20M
Maximum Force	20T
Hydraulic Pressure	70Mpa
Cylinder Stroke	180mm
Worktable	2 Support Blocks (190x100mm each)
Worktable Travel (Increments x Distance)	8 x 120mm
Power Source	Manual Pump (High/Low Pressure)

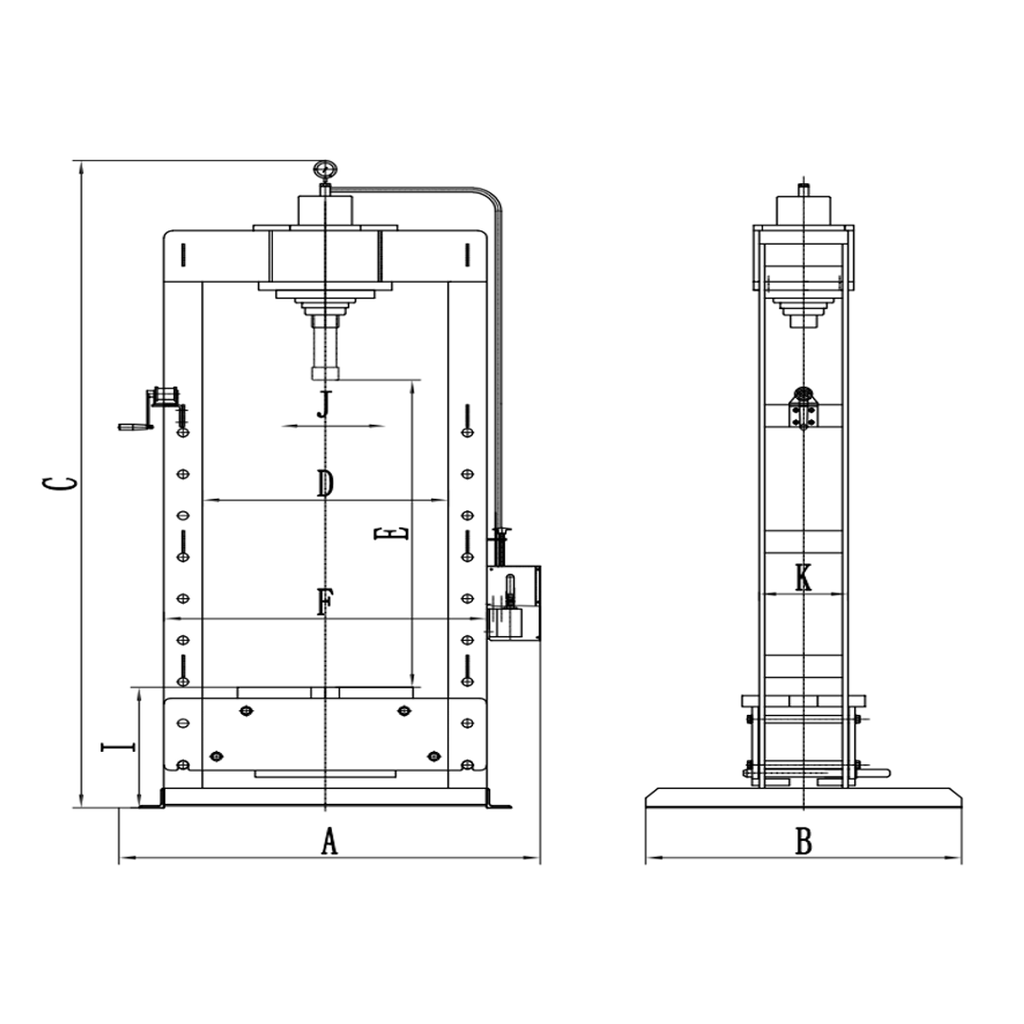

A	825mm
B	700mm
C	1825mm
D	544mm
E	985mm
F	656mm
I	276mm
J	375mm
K	100mm
Weight	143kg

Documents

WPM Series.pdf
