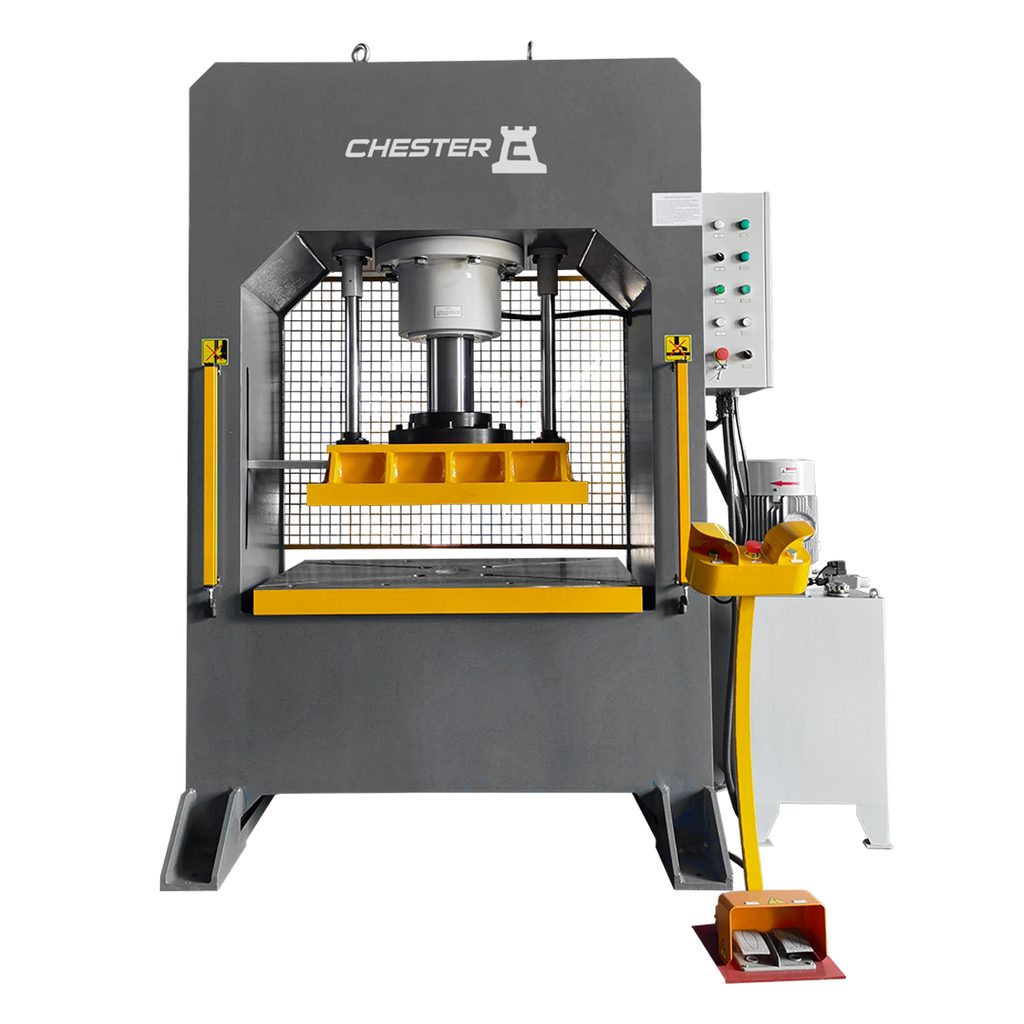

CHESTER WPP SERIES WORK PRODUCTION PRESS, WP200P

Please contact our Sales Team for pricing: [email protected]. Or Call us Today: 01543 448940
Fabrication Machines
Contact Us

Please contact our team for a custom quote and competitive pricing

Add to cart
Add to wishlist
Price
£ 0.00 £ 0.00


ModelWP200P
Maximum Force204T
Hydraulic Pressure30Mpa
Cylinder Stroke500mm
Ram Descent Speed9.7mm/s
Pressing Speed2.4mm/s
Return Speed14.5mm/s
Motor Power5.5kW (7.4HP)
Number of Guide Posts4

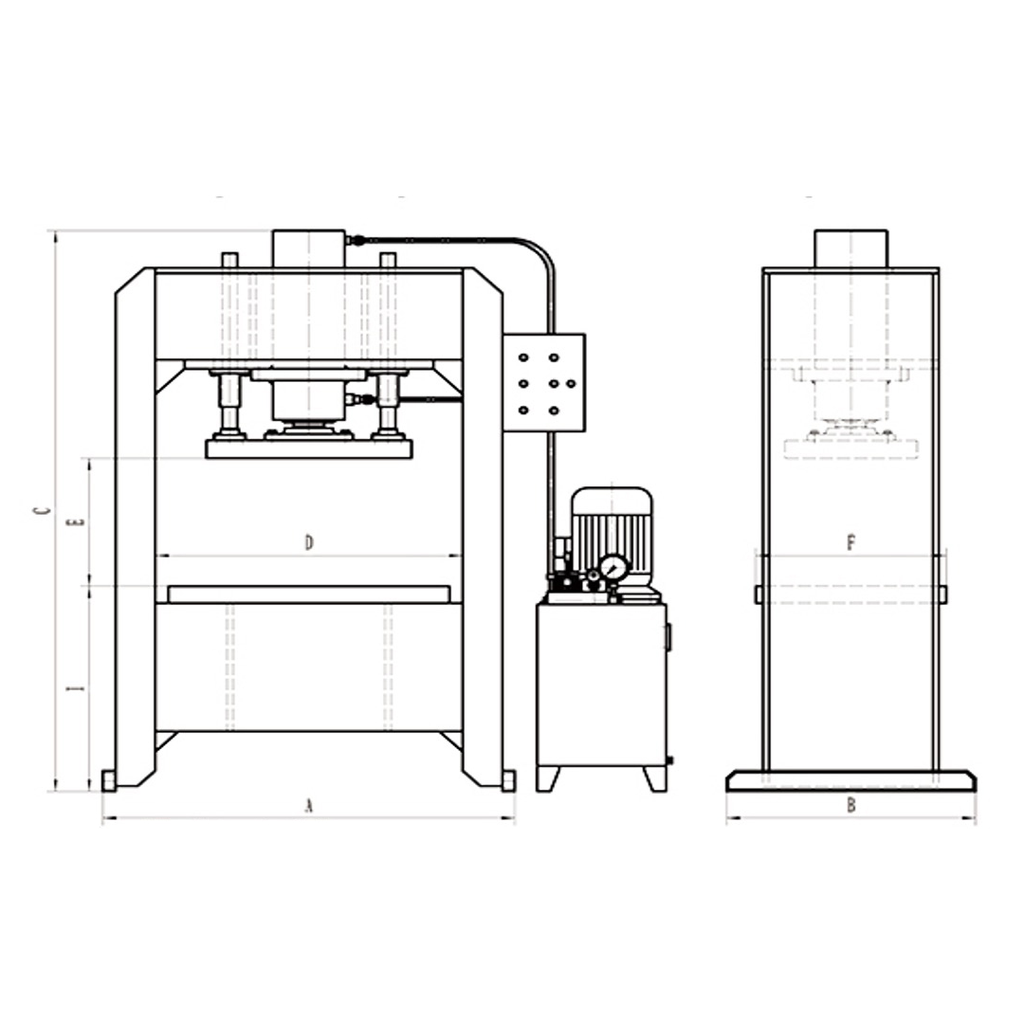

A1676mm
B1100mm
C2450mm
D1250mm
E500mm
F700mm
Weight4800kg

Standard Accessories:

  • Rear Safety Fence
  • Upper Plate with T-slots
  • Worktable with T-slots
  • Foot Pedal Switch
  • Stroke Limit Adjuster

Optional Accessories:

  • Photoelectric Safety Guard
  • Pressure Sensor
Documents
WPP Series.pdf
