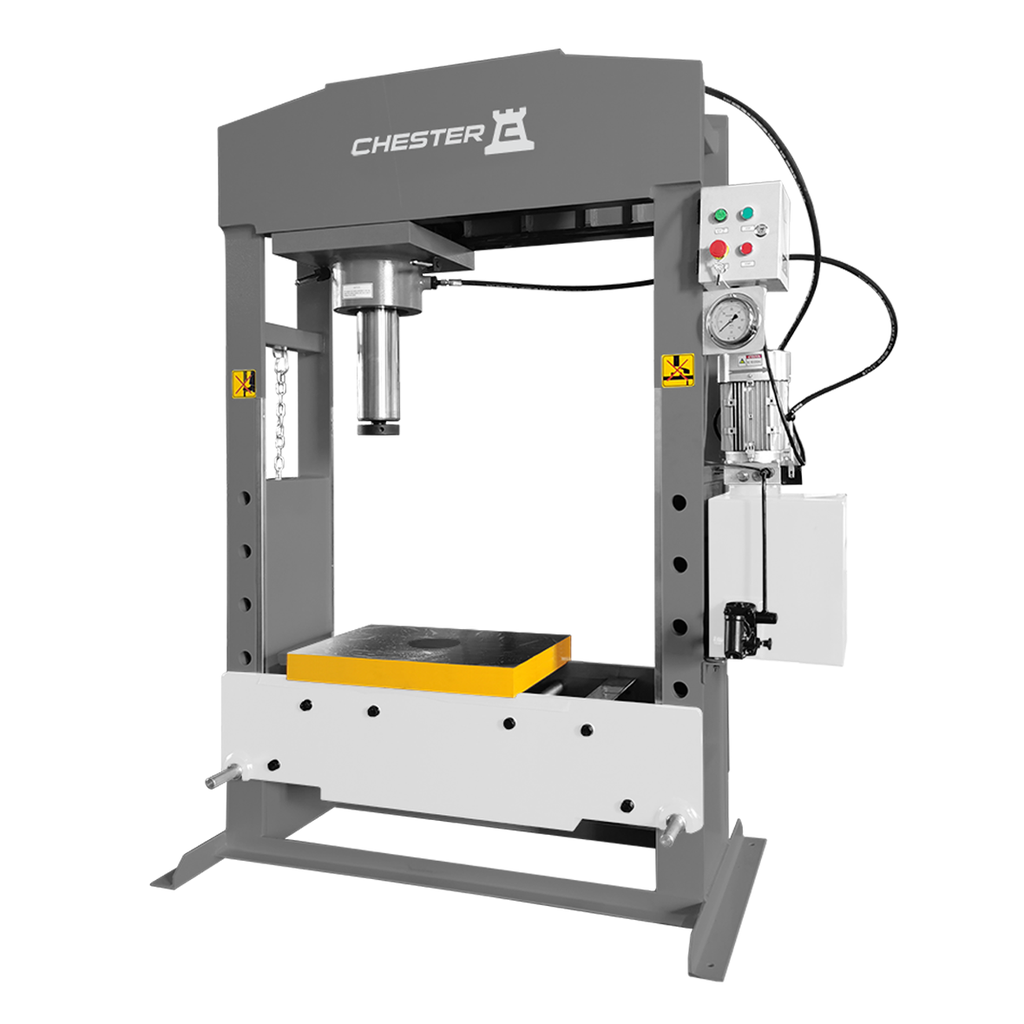

CHESTER WPMH SERIES POWERED/MANUAL HYDRAULIC PRESS, WP160MH

Name: CHESTER WPMH SERIES POWERED/MANUAL HYDRAULIC PRESS, WP160MH
SKU: FAB-WP160MH
Availability: OutOfStock

Please contact our Sales Team for pricing: [email protected]. Or Call us Today: 01543 448940

Fabrication Machines

Please contact our team for a custom quote and competitive pricing

Price

Features:

Model	WP160MH
Maximum Force	160T
Hydraulic Pressure	Dual Stage – 20/25.5Mpa
Cylinder Stroke	300mm
Ram Speed (Forward/Return)	4.9/7.3mm/s
Worktable (Size/Inner Hole Diameter)	700x530mm/ Φ120mm
Worktable Travel (Increments x Distance)	5 x 150mm
Motor Power	5.5kw (7.4HP)

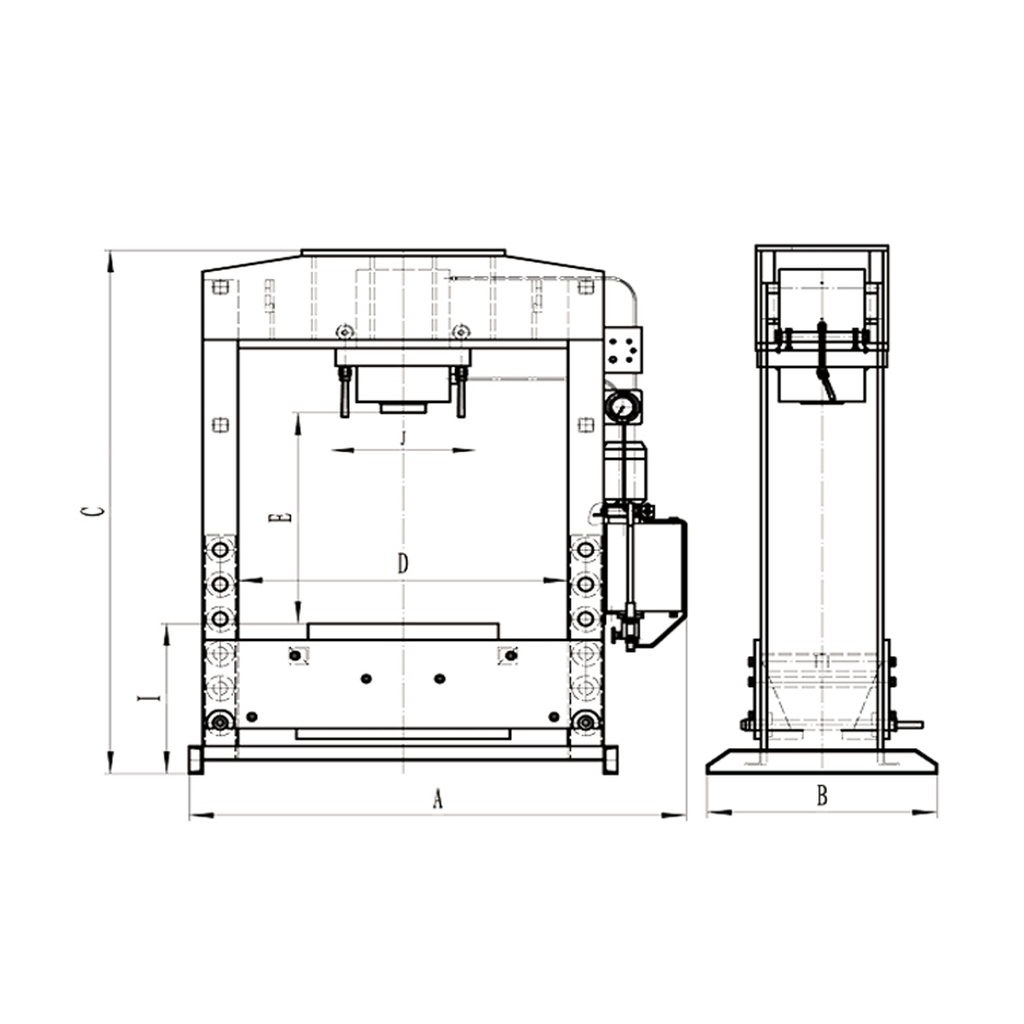

A	1776mm
B	870mm
C	2200mm
D	1100mm
E	905mm
I	599mm
J	580mm
Weight	1790kg

Standard Accessories:

Documents

WPMH Series.pdf
