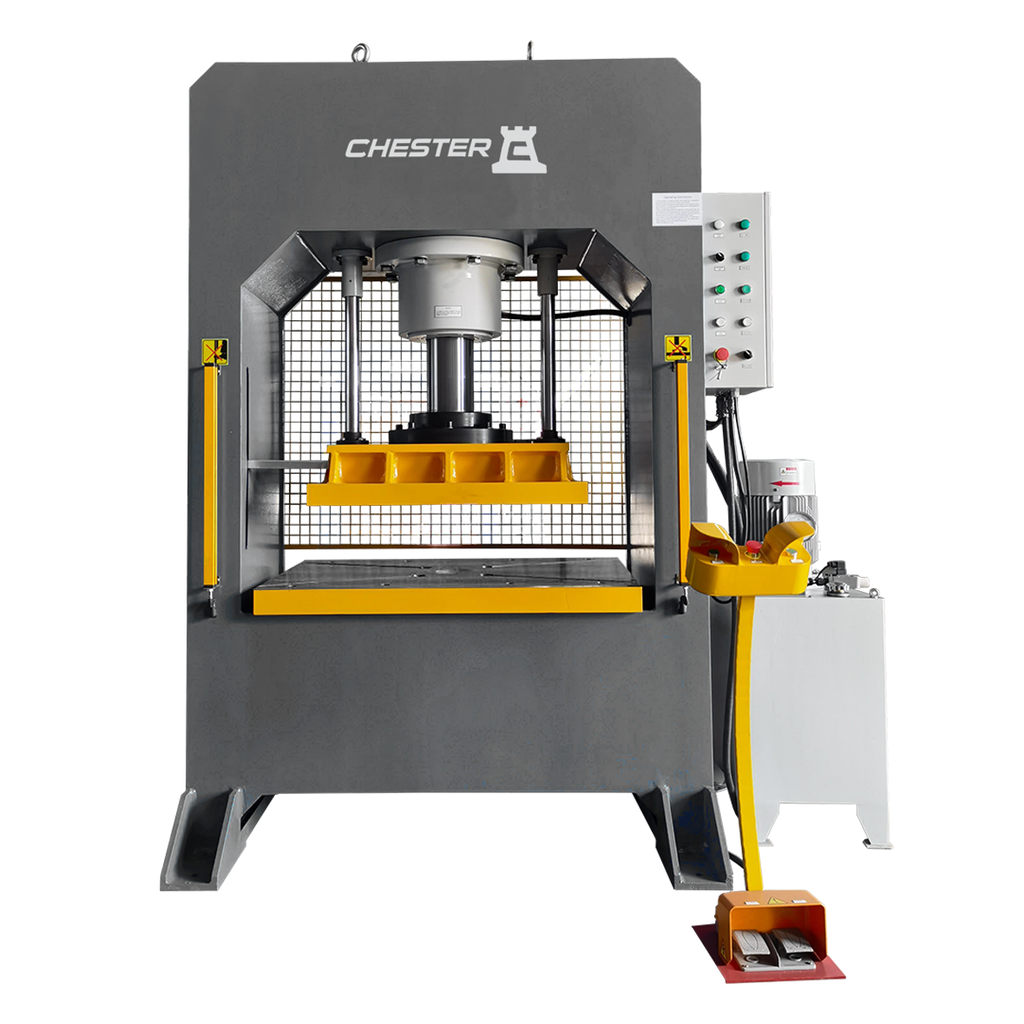

CHESTER WPP SERIES WORK PRODUCTION PRESS, WP100P

Please contact our Sales Team for pricing: [email protected]. Or Call us Today: 01543 448940
Fabrication Machines
Contact Us

Please contact our team for a custom quote and competitive pricing

Add to cart
Add to wishlist
Price
£ 0.00 £ 0.00


ModelWP100P
Maximum Force102T
Hydraulic Pressure30Mpa
Cylinder Stroke500mm
Ram Descent Speed19.1mm/s
Pressing Speed4.8mm/s
Return Speed26.4mm/s
Motor Power5.5kW (7.4HP)
Number of Guide Posts2

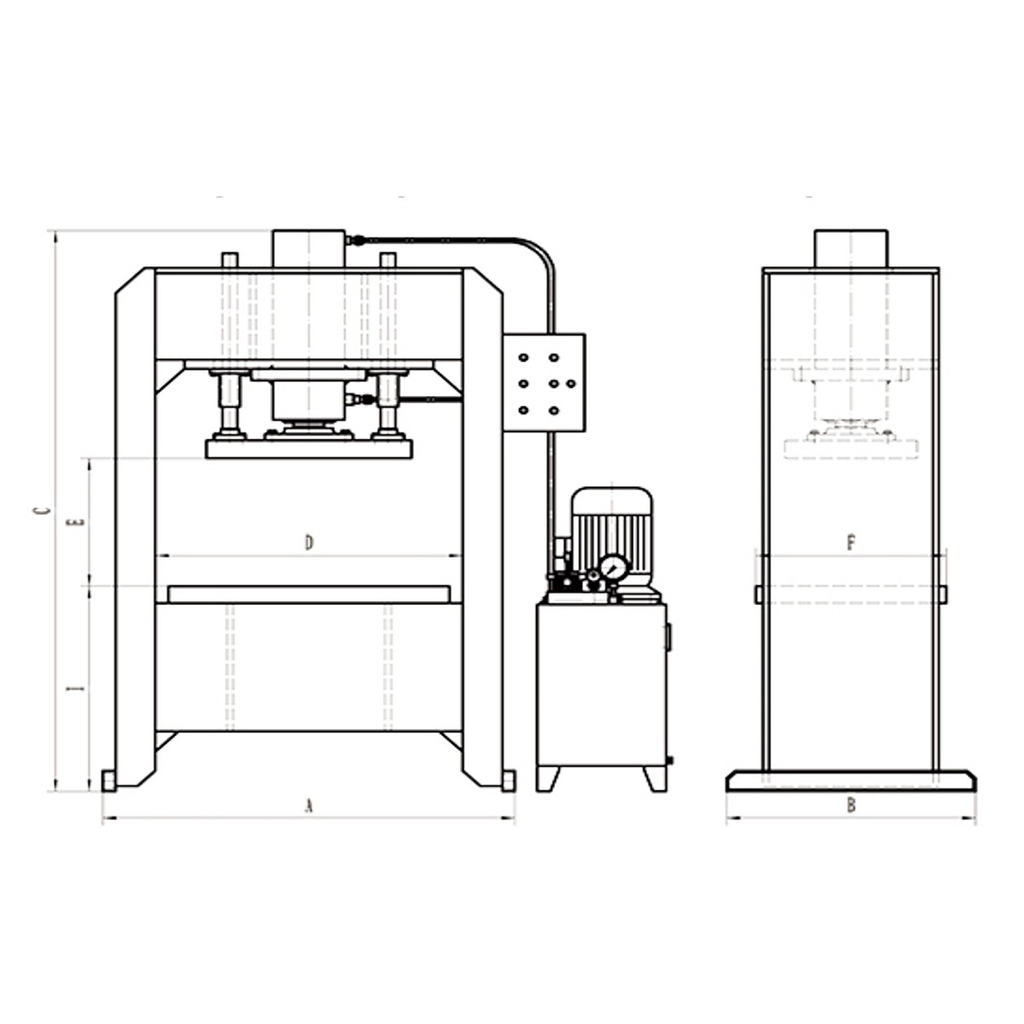

A1406mm
B850mm
C2250mm
D1050mm
E500mm
F650mm
Weight2080kg

Standard Accessories:

  • Rear Safety Fence
  • Upper Plate with T-slots
  • Worktable with T-slots
  • Foot Pedal Switch
  • Stroke Limit Adjuster

Optional Accessories:

  • Photoelectric Safety Guard
  • Pressure Sensor
Documents
WPP Series.pdf
