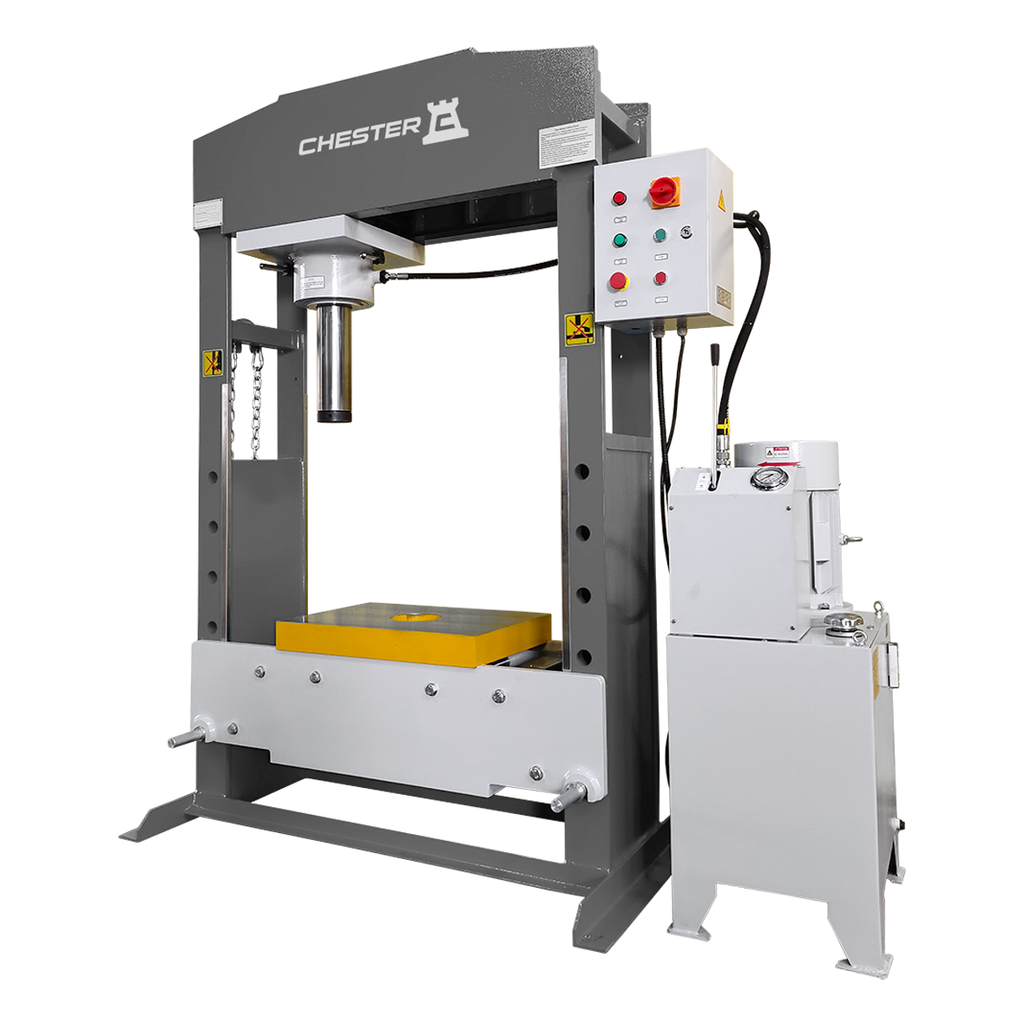

CHESTER WPH SERIES POWERED HYDRAULIC PRESS, WP100H

Name: CHESTER WPH SERIES POWERED HYDRAULIC PRESS, WP100H
SKU: FAB-WP100H
Availability: OutOfStock

Please contact our Sales Team for pricing: [email protected]. Or Call us Today: 01543 448940

Fabrication Machines

Please contact our team for a custom quote and competitive pricing

Price

Features:

Model	WP100H
Maximum Force	102T
Hydraulic Pressure	30Mpa
Cylinder Stroke	300mm
Ram Speed (Forward/Return)	7.6/10.5mm/s
Worktable Travel (Size/Inner Hole Diameter)	650×440 mm/Φ120mm
Worktable Travel (Increments x Distance)	5 x 150mm
Motor Power	7.5kw (10.1HP)

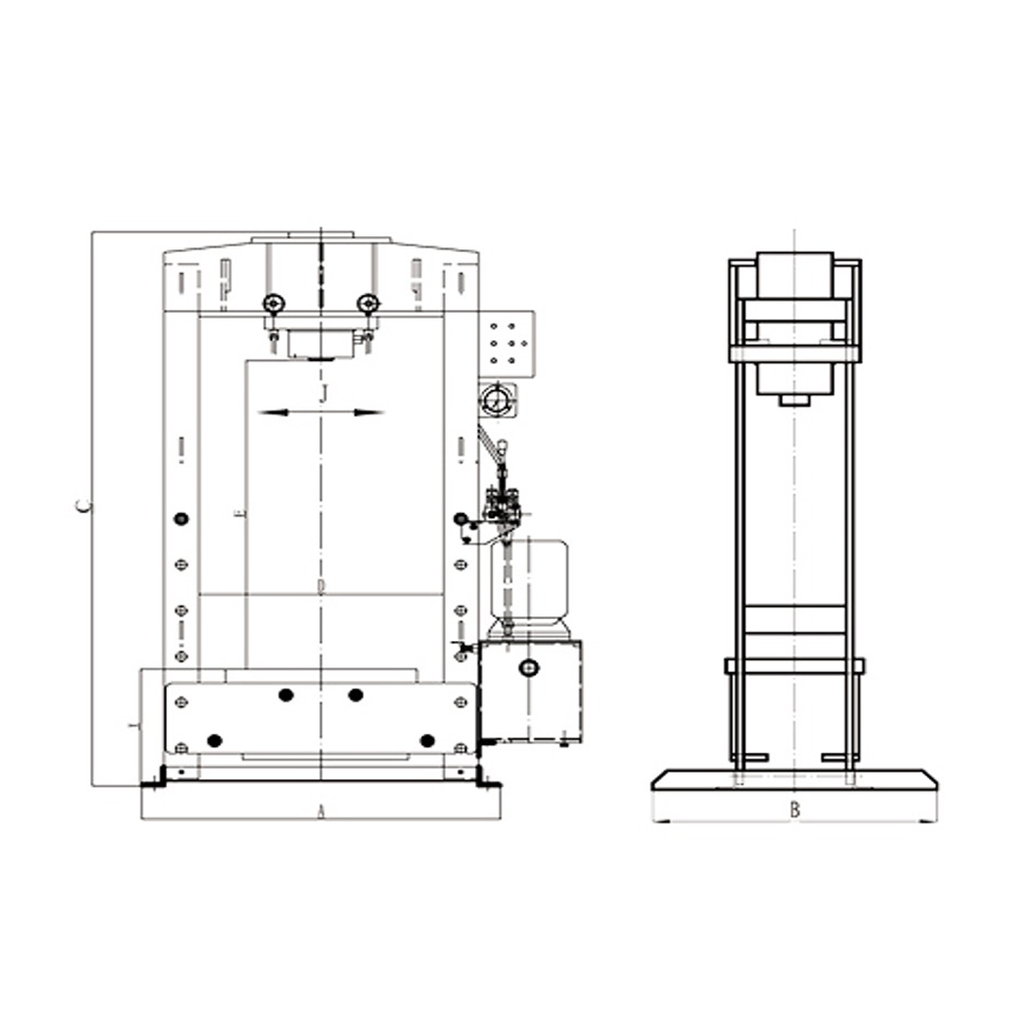

A	1480mm
B	790mm
C	2042mm
D	1100mm
E	808mm
I	597mm
J	640mm
Weight	1430kg

Standard Accessories:

Documents

WPH Series.pdf
