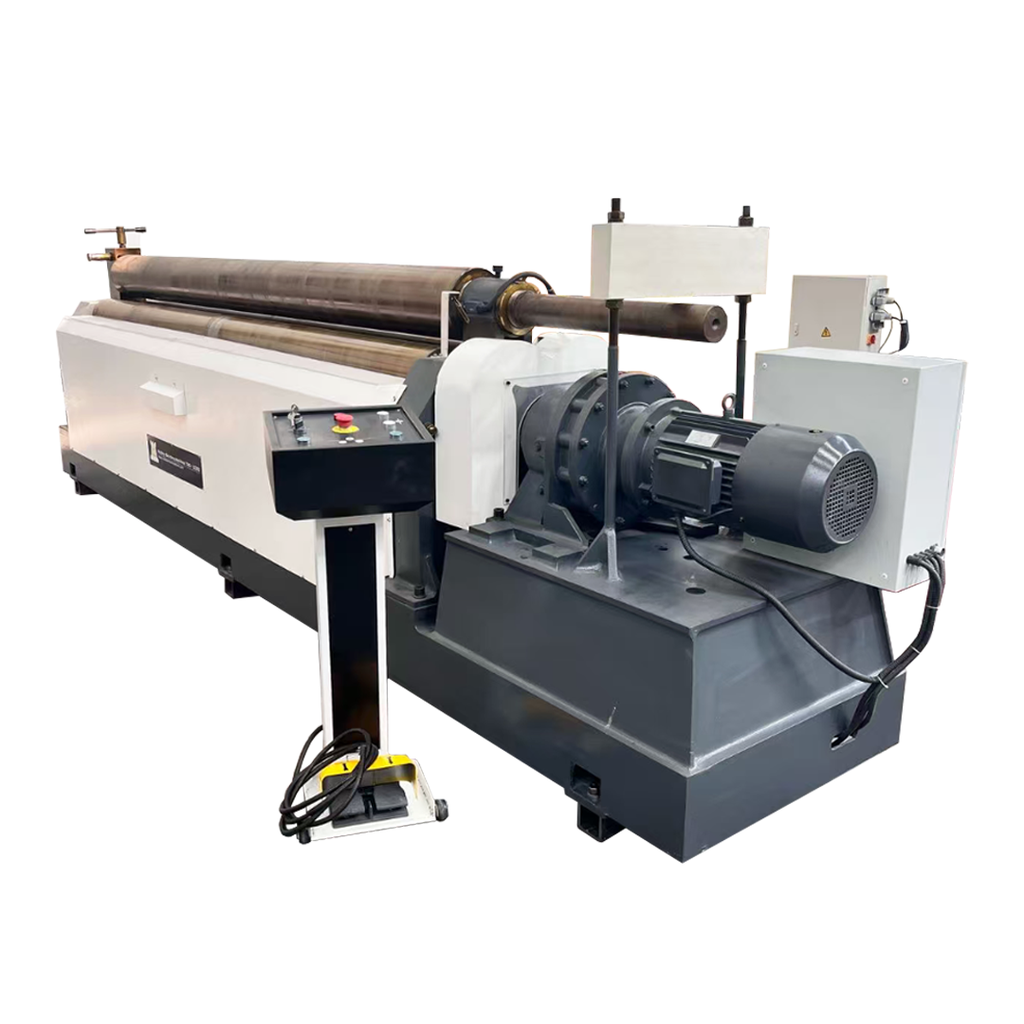

Our 3-Roller Symmetrical Rolling Machine is ideal for bending round tubes, curved parts, and conical tubes.
| Type | 3 Roller Symmetrical |
| For Steel Strength | 245MPa |
| Maximum Width | 2000mm |
| Roller Length | 2000mm |
| Maximum Roller Thickness | 8mm |
| Minimum Rolling Diameter under Full Load | T8 x B200 x Φ500mm (MS, σs≤ 245MPa) |
| Top Roller Diameter | Φ190mm |
| Bottom Roller Diameter | Φ170mm |
| Rolling Speed | 4.5m/min |
| Distance between Roller Centres | 260mm |
| Main Motor Power | 5.5kW |
| Overall Dimensions | 3700 x 1000 x 1300mm |
| Machine Weight | 3300kg |
Standard Accessories
- Main Machine
- Electrical Operation Base
- Grease Gun
- Foundation Bolts
- Keys for Button Lock and Electrical Cabinet Lock
- Operational Manual
